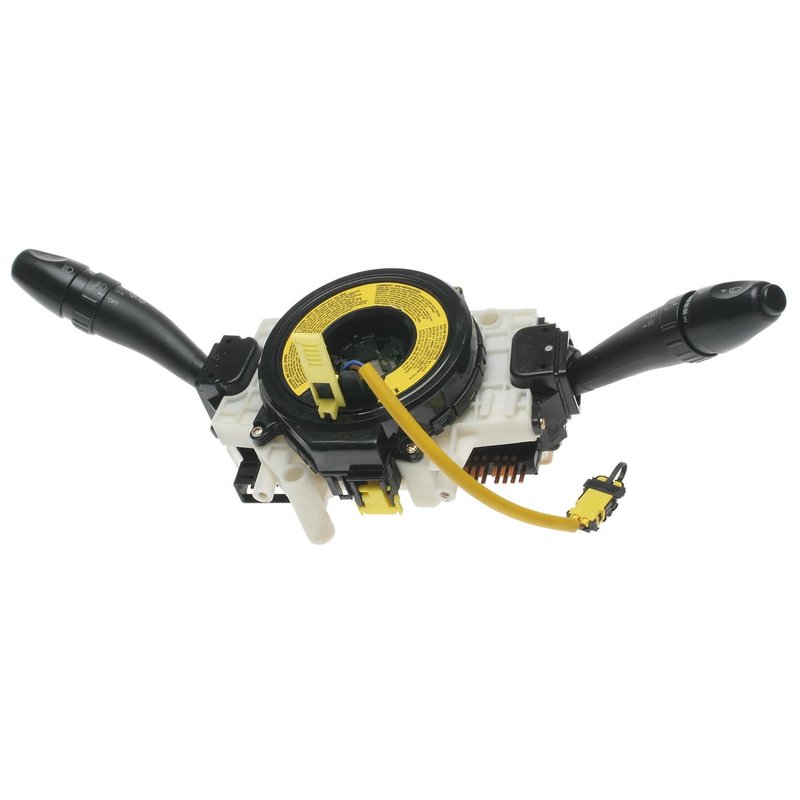

Standard Ignition CBS-1363 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1363 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black, White, Yellow |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | Yes |
| Hardware Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Lighting Controls Included | Headlights; High Beams; Fog Light |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Number Of Wiper Delay Settings | 9 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Turn Signal Control |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Wiper Control Options Included | Windshield on/off; Mist |
| Wire Length (in) | 5.5 |
| Wire Length (mm) | 139.7 |
| Fits | Kia · 14 vehicles |
Bolt-on installation. Directly mounts with no modifications needed.
Integrated lighting controls. Handles headlights, high beams, and fog light functions.
Complete wiper control. Includes on/off, mist, delay, and speed settings.
Cross-references Standard Ignition CBS-1363, 934003C510 and DL6763 for the same application. See all 4.
Headlight Dimmer Switch for Kia Optima
Standard Ignition CBS-1363 is a new headlight dimmer switch built for direct replacement service on select Kia Optima applications. It combines headlight, high beam, fog light, turn signal, and wiper control functions in one OE-style switch assembly for vehicles with the listed equipment.
Key Features
- Part number CBS-1363 from Standard Ignition
- Fits select 2001-2005 Kia Optima applications with the listed equipment
- Headlight, high beam, fog light, and turn signal control included
- Windshield washer spray, wiper delay, and wiper speed functions included
- Female 2-connector design with rectangular connector shape
- 29 blade terminals for vehicle-specific electrical connection
- Bolt-on attachment method for direct mounting
- 12-volt electrical system application
- Black, white, and yellow finish with indicator markings displayed
Detailed Description
Standard Ignition CBS-1363 is a replacement headlight dimmer switch for Kia Optima models equipped without auto headlight control. It includes the main light operator, latching high beam operator, momentary high beam flasher, fog light operator, turn signal control, windshield washer spray, windshield wiper delay, and windshield wiper speed functions. The switch also features 9 windshield wiper delay settings and 3 windshield wiper speed settings for vehicles built with those controls.
This part cross-references OE-style numbers such as 934003C510 and DL6763 for the same application. For buyers searching by vehicle, CBS-1363 is a direct-fit option for 2001-2005 Kia Optima, including 2005 Kia Optima with fog lights and no auto headlights, and 2001-2004 Kia Optima without auto headlight control.
What It Helps Fix
- Inoperative or intermittent headlight switching
- High beam control problems
- Fog light switch failure
- Turn signal control issues at the steering column switch
- Windshield wiper delay or speed selection faults
Installation Notes and Tips
Fits 2005 Kia Optima, N/A, w/o Auto Headlights; w/ Fog Lights; To 1/19/05. Fits 2005 Kia Optima, N/A, w/o Auto Headlight Control; w/ Fog Lights; To 1/19/05. Fits 2005 Kia Optima, N/A, w/o Auto Headlight Control; To 1/19/05. Fits 2001-2004 Kia Optima, N/A, w/o Auto Headlight Control; w/ Fog Lights. Fits 2003-2004 Kia Optima, N/A, w/o Auto Headlight Control. Fits 2001 Kia Optima, N/A, w/o Auto Headlight Control. Fits 2002 Kia Optima, N/A, Not compatible with vehicles equipped with Auto Headlights.
Verify connector style, terminal count, and vehicle equipment before installation. This switch uses a bolt-on mounting design and a female 2-connector layout with blade terminals.
Quality Assurance
Standard Ignition CBS-1363 is a new electrical replacement part built for the specified Kia Optima applications and configured to match the listed switch functions and connector layout.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Kia | Optima | — | — | — | N/A | w/o Auto Headlights; w/ Fog Lights; To 1/19/05 |
| 2005 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control; w/ Fog Lights; To 1/19/05 |
| 2005 | Kia | Optima | LX | 2.7L | V6 | N/A | w/o Auto Headlight Control; To 1/19/05 |
| 2005 | Kia | Optima | EX | 2.7L | V6 | N/A | w/o Auto Headlight Control; To 1/19/05 |
| 2005 | Kia | Optima | LX | 2.4L | L4 | N/A | w/o Auto Headlight Control; To 1/19/05 |
| 2005 | Kia | Optima | EX | 2.4L | L4 | N/A | w/o Auto Headlight Control; To 1/19/05 |
| 2004 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control; w/ Fog Lights |
| 2004 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control |
| 2003 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control; w/ Fog Lights |
| 2003 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control |
| 2002 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control; w/ Fog Lights |
| 2002 | Kia | Optima | — | — | — | N/A | Not compatible with vehicles equipped with Auto Headlights |
| 2001 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control; w/ Fog Lights |
| 2001 | Kia | Optima | — | — | — | N/A | w/o Auto Headlight Control |
