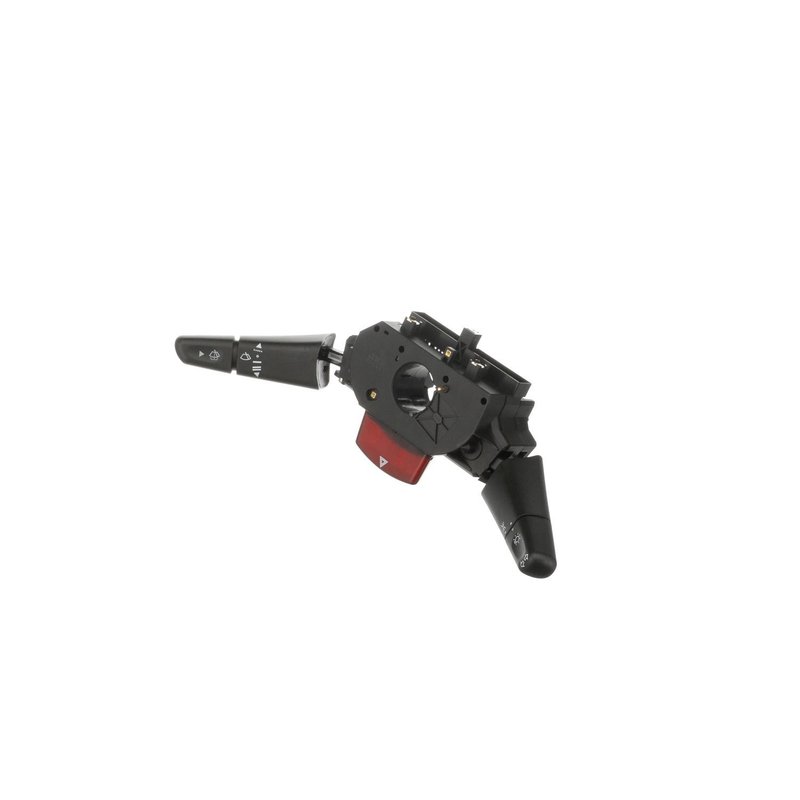

Standard Ignition CBS-1392 Headlight Dimmer Switch

Headlight Dimmer Switch for Sprinter

Standard Ignition CBS-1392 is a new headlight dimmer switch built for dependable electrical switching in service applications. It uses copper alloy conductors for strong conductivity and low resistive loss, with 100% testing for mechanical and electrical performance.

Compatible with 2003-2006 Dodge Sprinter 2500 and 2003-2006 Dodge Sprinter 3500, this switch supports the lighting and wiper functions commonly controlled from the steering column. The CBS-1392 is a direct-fit style replacement for vehicles listed below.

• Fits 2003-2006 Dodge Sprinter 2500, N/A, w/o Parking Light Control
• Fits 2003-2006 Dodge Sprinter 3500, N/A, w/o Parking Light Control

Key Features

• Headlight dimmer switch with main light operator, latching high beam operator, and momentary high beam flasher
• Turn signal control included with indicator markings for clear operation
• Windshield washer spray, wiper delay, and wiper speed controls included
• 12-volt electrical design with 2 female rectangular connectors
• Bolt-on attachment method with black plastic finish
• New replacement part, Standard Ignition CBS-1392

Detailed Description

Standard Ignition CBS-1392 is engineered for the steering-column control functions used in select Dodge Sprinter vans. It combines headlight dimming, turn signal operation, and windshield wiper/washer controls in one switch assembly, with 22 blade terminals and a 2-cavity connector layout for vehicle-specific electrical integration. The black plastic housing and displayed indicator markings support straightforward driver operation.

This part cross-references VEMO V30-80-1763 for the same application. If you are replacing a worn or intermittent Sprinter headlight dimmer switch, CBS-1392 provides the electrical and mechanical switching functions needed for daily use.

Common Problems This Part Can Address

• Inoperative or inconsistent high beam switching
• Turn signal lever response issues
• Windshield wiper delay or speed control failure
• Washer spray control malfunction at the column switch
• Worn internal contacts causing intermittent lighting operation

Installation Notes and Tips

Verify connector style, terminal layout, and vehicle equipment before installation. This part is listed for Sprinter models without parking light control, so confirm the original switch functions match the replacement unit. A bolt-on design is used, and the switch should be installed with the ignition off and the battery disconnected to protect the electrical system.

Quality Assurance

Standard Ignition states that this switch is built with robust materials and copper alloy conductors, then fully tested for both mechanical action and electrical switching performance before release.
