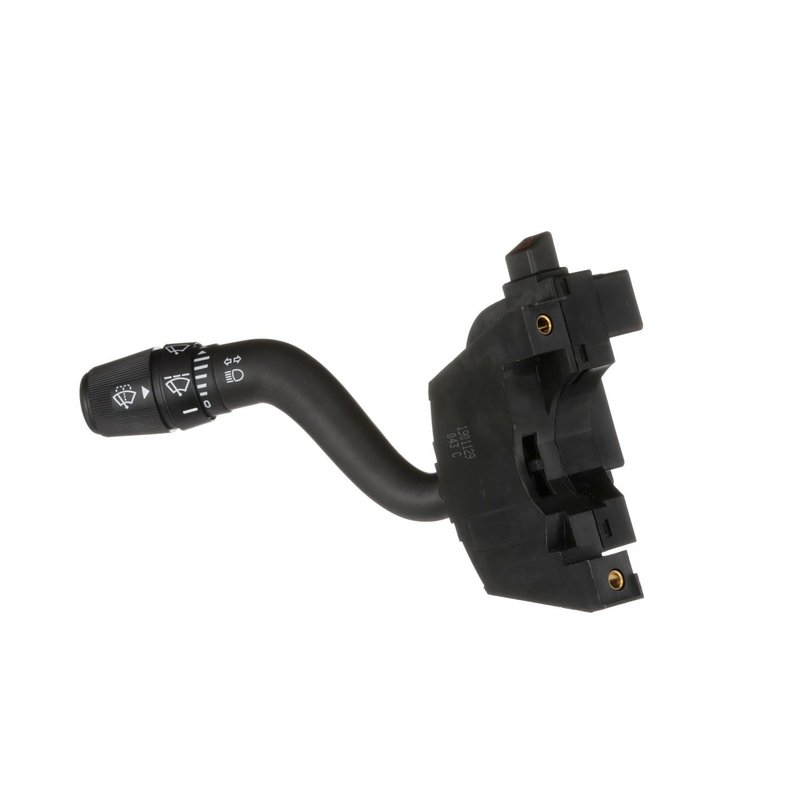

Standard Ignition CBS-1506 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS-1506

The Standard Ignition Headlight Dimmer Switch CBS-1506 is designed specifically for Ford Ranger models, providing reliable control over your vehicle's lighting functions. This bolt-on switch features a durable black plastic finish and is engineered to meet the electrical and lighting needs of your Ford Ranger.

• Compatible with Ford Ranger vehicles
• Bolt-on attachment method for secure installation
• Black plastic finish with rectangular female connectors
• Includes 3 connectors and 19 male blade terminals
• Combination switch with latching high beam and momentary high beam flasher
• Indicator markings clearly displayed for ease of use
• New, not remanufactured, ensuring consistent performance

Detailed Product Features and Specifications

The CBS-1506 headlight dimmer switch from Standard Ignition is a combination switch that integrates multiple lighting functions into one unit. It features a bolt-on attachment method, making it straightforward to install on compatible Ford Ranger models. The switch is finished in black plastic and includes three rectangular female connectors with two connector cavities, designed to interface with 19 male blade terminals. This configuration supports reliable electrical connections essential for headlight dimming and signaling.

Key functional attributes include a latching high beam operator and a momentary high beam flasher, allowing drivers to toggle between lighting modes efficiently. Indicator markings are included on the switch for clear identification of controls. While this switch does not include cruise control or fog light operators, it supports multiple wiper speed settings and delay options, enhancing overall vehicle lighting and control integration.

Applications and Problem Solving

• Replaces faulty or worn headlight dimmer switches on Ford Ranger models
• Restores proper high beam latching and flashing functions
• Resolves issues with inconsistent or non-responsive headlight dimming
• Improves driver control over lighting functions with clear indicator markings
• Addresses electrical connection problems related to worn terminals or connectors

Installation Notes and Tips

Installation of the Standard Ignition CBS-1506 headlight dimmer switch requires basic automotive electrical knowledge. The bolt-on attachment method ensures a secure fit without the need for modifications. Ensure the vehicle's battery is disconnected before beginning installation to prevent electrical shorts. Verify connector orientation and terminal alignment to avoid damage. After installation, test all lighting functions including high beam latching and flashing to confirm proper operation.

Quality Assurance and Warranty

This headlight dimmer switch is a new Standard Ignition part, manufactured to meet OEM specifications for Ford Ranger vehicles. The product undergoes quality control inspections to ensure durability and reliable performance. While specific warranty details are not provided here, Standard Ignition parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
