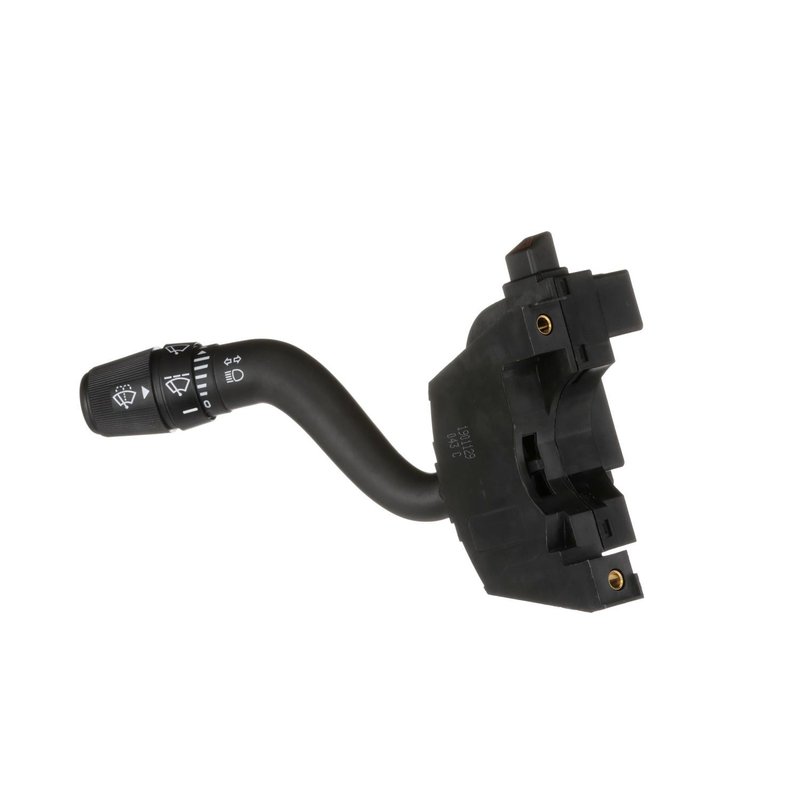

Standard Ignition CBS-1514 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Mazda B-Series Trucks

The Standard Ignition CBS-1514 headlight dimmer switch is designed specifically for Mazda B2300, B3000, and B4000 models. This bolt-on switch offers precise control over your vehicle's headlight functions, ensuring safe and efficient lighting operation.

• Direct bolt-on attachment method for secure installation
• Durable black plastic finish with rectangular female connectors
• Three connectors with two connector cavities and 19 male blade terminals
• Includes indicator markings and latching high beam operator
• Combination switch with momentary high beam flasher functionality
• Compatible with Mazda B2300, B3000, and B4000 models
• New, not remanufactured, ensuring reliable performance

Product Features and Specifications

The CBS-1514 headlight dimmer switch from Standard Ignition is engineered to meet the electrical and lighting needs of Mazda B-series trucks. Featuring a combination switch design, it integrates multiple functions such as a latching high beam operator and momentary high beam flasher. The switch is constructed with a black plastic finish and includes clear indicator markings for ease of use. It connects via three female rectangular connectors and 19 male blade terminals, providing a secure and reliable electrical connection. This switch does not include cruise control or fog light operators, focusing solely on headlight dimming and signaling functions.

Compatible Vehicles and Applications

This headlight dimmer switch is compatible with the following Mazda models:

• Mazda B2300
• Mazda B3000
• Mazda B4000

It is designed to replace faulty or worn headlight dimmer switches in these vehicles, restoring proper headlight control and signaling capabilities.

Common Issues Addressed by CBS-1514

• Intermittent or non-functioning high beam operation
• Failure of momentary high beam flash feature
• Worn or damaged switch causing poor electrical contact
• Missing or faded indicator markings affecting usability
• Loose or faulty connector terminals leading to lighting issues

Installation Notes and Tips

The CBS-1514 headlight dimmer switch installs via a bolt-on method, ensuring a secure fit in the vehicle's switch housing. When replacing the switch, verify connector orientation and ensure all 19 blade terminals are properly seated. Disconnect the vehicle battery before installation to prevent electrical shorts. No additional cruise control or fog light wiring is required, simplifying the replacement process.

Quality Assurance and Warranty

Standard Ignition provides this headlight dimmer switch as a new, OEM-quality replacement part. Manufactured to meet or exceed original equipment specifications, the CBS-1514 ensures reliable performance and durability. While specific warranty details may vary, Standard Ignition parts typically come with a limited warranty against defects in material and workmanship.
