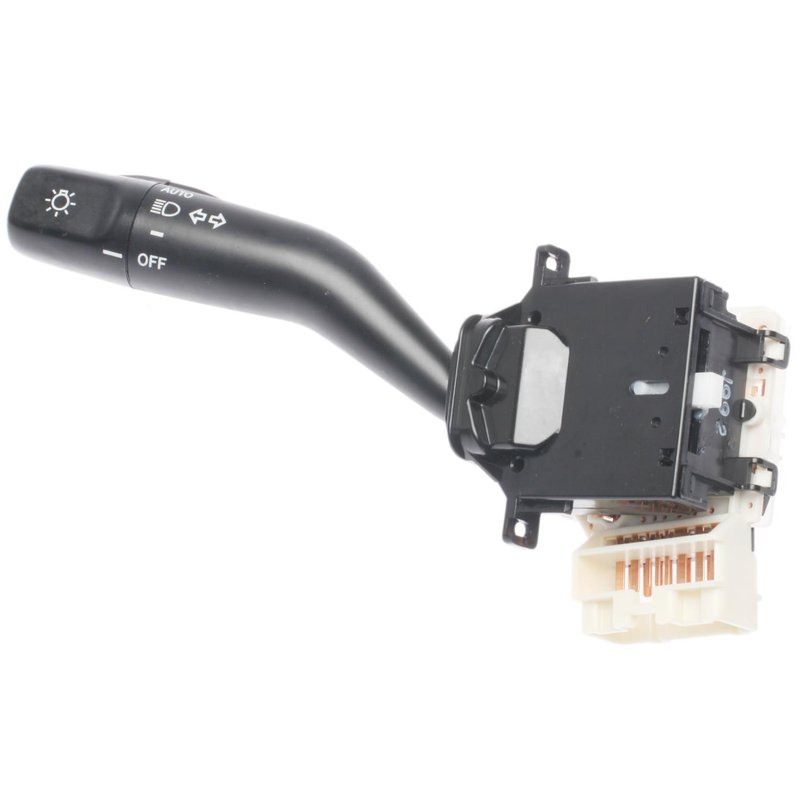

Standard Ignition CBS-1558 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1558 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black, White |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Toyota · 5 vehicles |
Bolt-on installation. Female rectangular connector and 16 blade terminals simplify replacement.
Combination switch. Controls headlights, turn signals, running lights, and high beams.
New plastic finish. Black and white housing with indicator markings for clear operation.
Cross-references Standard Ignition CBS-1558, 8414007070 and DL6958 for the same application. See all 5.
Headlight Dimmer Switch for Toyota Avalon
Standard Ignition CBS-1558 is a new headlight dimmer switch built as a combination switch for 12-volt systems. It includes the main light operator, running light operator, turn signal control, latching high beam operator, and momentary high beam flasher in one bolt-on assembly for Toyota Avalon applications with daytime running lights.
- Bolt-on headlight dimmer switch with one rectangular female connector
- 16 blade terminals, black and white plastic finish
- Combination switch functions with turn signal and directional indicator control
- Includes indicator markings and displayed markings for easier identification
- New replacement part from Standard Ignition
Detailed Product Overview
Standard Ignition CBS-1558 is an OE-style electrical switch assembly for the steering column controls on select Toyota Avalon models. It is designed to manage exterior lighting and signal functions through a single combination switch, including headlight dimming, running lights, turn signals, and high-beam operation. This part number CBS-1558 cross-references Standard Ignition CBS-1558 and Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Compatible With 2000-2002 Toyota Avalon, and 2001-2002 Toyota Avalon with daytime running lights. Use CBS-1558 when replacing a worn or malfunctioning headlight dimmer switch on a Toyota Avalon equipped for these configurations.
Common Problems This Part Can Address
- Intermittent or inoperative high-beam switching
- Turn signal control that does not respond correctly
- Headlight dimmer operation that feels loose or inconsistent
- Running light control issues tied to the combination switch
- Indicator markings that no longer align with switch function
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle equipment before installation. This switch uses a bolt-on attachment method with a single female rectangular connector and blade terminals, so matching the original electrical layout is important. Confirm fitment for your Toyota Avalon by model year and daytime running light configuration before replacing the original unit.
Quality Assurance
Standard Ignition supplies CBS-1558 as a new replacement electrical switch for direct-fit service on listed Toyota Avalon applications. The part is built for 12-volt vehicle systems and follows the specified connector, terminal, and function layout for the application.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Toyota | Avalon | — | N/A | w/o Fog Lights; w/ Daytime Running Lights |
| 2002 | Toyota | Avalon | XL | N/A | w/ Daytime Running Lights |
| 2001 | Toyota | Avalon | XL | N/A | w/ Daytime Running Lights |
| 2001 | Toyota | Avalon | — | N/A | w/o Fog Lights; w/ Daytime Running Lights |
| 2000 | Toyota | Avalon | — | N/A | w/o Fog Lights; w/ Daytime Running Lights |
