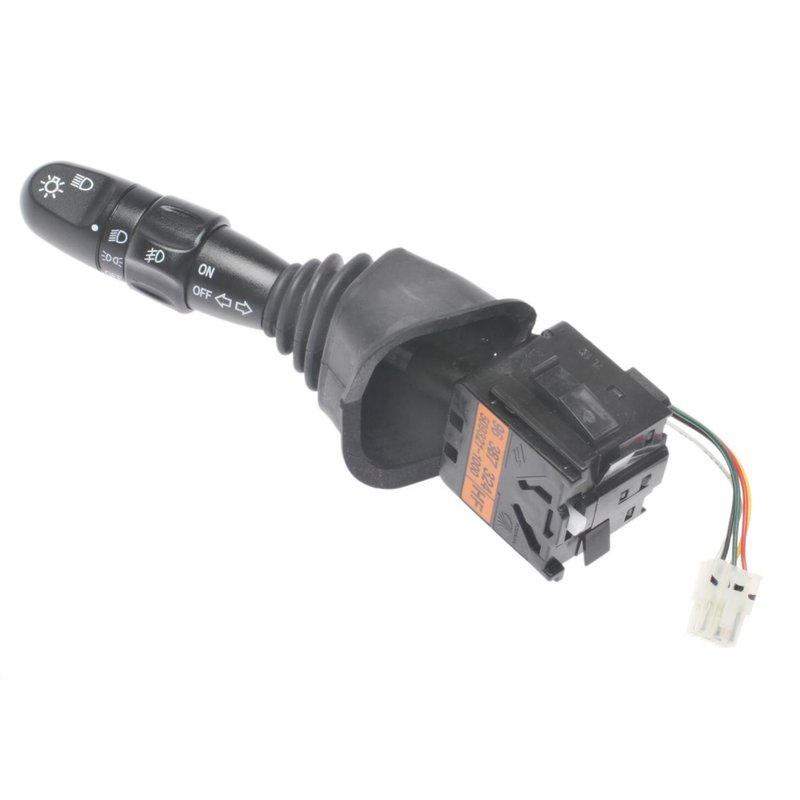

Standard Ignition CBS-1559 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1559 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female; Male |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic, Rubber |
| Fog Light Operator Included | Yes |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male; Female |
| Terminal Type | Blade; Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Suzuki · 15 vehicles |
Bolt-on installation. Directly replaces the switch with no modifications needed.
Combination switch. Controls headlights, turn signals, fog lights, and high beams.
New construction. Black plastic and rubber finish with 12-volt operation.
Cross-references Standard Ignition CBS-1559, 3742085Z00 and DL6959 for the same application. See all 5.
Headlight Dimmer Switch for Suzuki Forenza
Standard Ignition CBS-1559 is a new headlight dimmer switch built for column-mounted control on select Suzuki Forenza models with fog lights. It combines headlight, high-beam, turn signal, and fog light functions in one replacement switch for direct electrical control.
Key Features
- Fits 2004-2008 Suzuki Forenza, with fog lights
- Fits 2004-2007 Suzuki Forenza, column mounted, with fog lights
- Combination switch with main light operator, latching high beam operator, and momentary high beam flasher
- Includes turn signal control and fog light operator
- Black plastic and rubber finish with bolt-on attachment method
- 12-volt electrical design with 2 rectangular connectors
- Female and male connector terminals with blade and pin terminal types
- Displayed indicator markings included
Detailed Description
Standard Ignition CBS-1559 is a replacement headlight dimmer switch for Suzuki Forenza applications that use a column-mounted combination switch with fog lights. It is built as a new electrical component and includes the functions needed to control the main lights, high-beam flash, high-beam latch, turn signals, and fog lights from the steering column. This part number, CBS-1559, is a direct-fit style replacement for the listed Forenza model years and configurations.
This part cross-references 3742085Z00 and DL6959 for the same application.
What It Helps Fix
- Intermittent or non-working headlight switching
- High beams that do not latch or flash correctly
- Turn signal control issues at the column switch
- Fog light switch operation problems
- Worn or damaged combination switch contacts
Installation Notes and Tips
Verify the vehicle is a 2004-2008 Suzuki Forenza with fog lights before ordering. This switch uses a bolt-on attachment method and 2 rectangular connectors, so connector shape and terminal layout should be matched to the original unit before installation. Confirm the vehicle is column mounted where applicable, and transfer any vehicle-specific trim or surrounding components as needed during replacement.
Quality Assurance
Standard Ignition CBS-1559 is a new replacement switch built for 12-volt automotive electrical systems and supplied as a direct replacement component for the listed Suzuki Forenza applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Suzuki | Forenza | 2.0L | L4 | N/A | Compatible with vehicles equipped with fog lights. |
| 2008 | Suzuki | Forenza | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2008 | Suzuki | Forenza | 2.0L | L4 | N/A | — |
| 2007 | Suzuki | Forenza | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2007 | Suzuki | Forenza | — | — | N/A | w/ Fog Lights; Column Mounted |
| 2007 | Suzuki | Forenza | 2.0L | L4 | N/A | — |
| 2006 | Suzuki | Forenza | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2006 | Suzuki | Forenza | — | — | N/A | w/ Fog Lights; Column Mounted |
| 2006 | Suzuki | Forenza | 2.0L | L4 | N/A | — |
| 2005 | Suzuki | Forenza | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2005 | Suzuki | Forenza | — | — | N/A | w/ Fog Lights; Column Mounted |
| 2005 | Suzuki | Forenza | — | — | N/A | — |
| 2004 | Suzuki | Forenza | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2004 | Suzuki | Forenza | — | — | N/A | w/ Fog Lights; Column Mounted |
| 2004 | Suzuki | Forenza | 2.0L | L4 | N/A | — |
