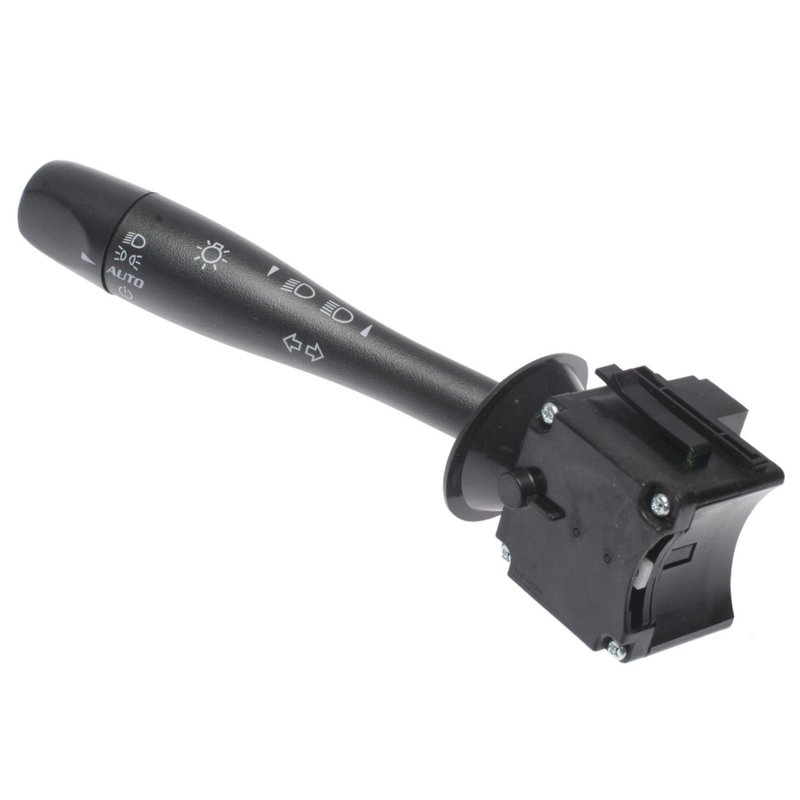

Standard Ignition CBS-1564 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1564 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Suzuki · 6 vehicles |
Combination switch. Controls headlights, turn signals, and wiper functions in one unit.
Bolt-on installation. Plug-in connector and no wiring included for a straightforward replacement.
New construction. Black plastic finish with a lever-style actuator and indicator markings.
Cross-references Standard Ignition CBS-1564, 3721078J00 and DL6964 for the same application. See all 5.
Headlight Dimmer Switch for Suzuki XL-7
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1564. It is a column-mounted combination switch for 12-volt systems and is built for 2007-2009 Suzuki XL-7 models, including 2007 Suzuki XL-7 vehicles with the headlight dimmer switch located on the steering column.
Key Features
- Lever-style activation with bolt-on attachment
- Black plastic finish with displayed indicator markings
- Female plug-in connector design with 2 connector cavities
- 12 terminals, male pin type
- Combination switch functions for lighting and turn signal control
- Includes main light operator, running light operator, latching high beam operator, momentary high beam flasher, and turn signal control
- New replacement part from Standard Ignition
Detailed Description
Standard Ignition CBS-1564 is a headlight dimmer switch designed for steering-column-mounted applications on the Suzuki XL-7. This combination switch manages key exterior lighting functions, including main lights, running lights, high beam operation, and turn signal/directional indicator control. It uses a plug-in female connector layout and bolt-on mounting for a direct replacement style installation on the specified 12-volt vehicles.
This part cross-references Dorman (e.g., DL6964) for the same application. For buyers searching for a 2007 Suzuki XL-7 headlight dimmer switch or a 2008-2009 Suzuki XL-7 column mounted combination switch, CBS-1564 is the correct fitment reference to verify before ordering.
What It Helps Fix
- Intermittent or inoperative high beam switching
- Faulty turn signal or directional indicator operation
- Loss of main headlight or running light control
- Sticking, worn, or unresponsive column switch lever
- Electrical contact issues inside the steering column switch assembly
Installation Notes and Tips
Fits 2007-2009 Suzuki XL-7, N/A. Fits 2007 Suzuki XL-7, N/A, column mounted - fits vehicles with headlight dimmer switch located on the steering column. Confirm connector shape, terminal count, and steering-column switch layout before installation. This part does not include wiring or hardware, so reuse existing vehicle components as required by the application.
Quality Assurance
Standard Ignition supplies this new replacement switch as a direct-fit electrical component for the listed Suzuki XL-7 applications. Verify the part number CBS-1564 and vehicle configuration against the fitment notes to ensure proper selection.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Suzuki | XL-7 | 3.6L | V6 | N/A | — |
| 2009 | Suzuki | XL-7 | — | — | N/A | — |
| 2008 | Suzuki | XL-7 | 3.6L | V6 | N/A | — |
| 2008 | Suzuki | XL-7 | — | — | N/A | — |
| 2007 | Suzuki | XL-7 | — | — | N/A | — |
| 2007 | Suzuki | XL-7 | — | — | N/A | Column Mounted - fits vehicles with headlight dimmer switch located on the steering column |
