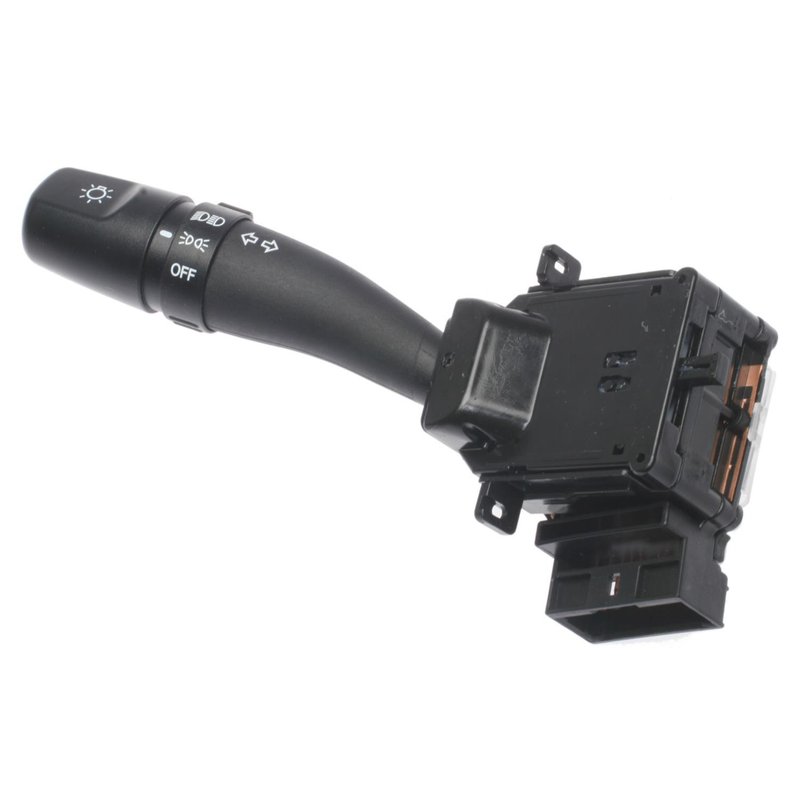

Standard Ignition CBS-1622 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1622 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Kia · 18 vehicles |
Bolt-on installation. Plug-in design with a rectangular connector for straightforward replacement.
Combination switch. Integrates lighting controls and turn signal operation in one unit.
New plastic finish. Black housing with a displayed indicator markings for a clean look.
Cross-references Beck/Arnley 201-1947, Standard Ignition CBS-1622 and 1S3360 for the same application. See all 11.
Headlight Dimmer Switch for Kia and Hyundai
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1622. It is a 12-volt combination switch with turn signal control, main light operator, latching high beam operator, momentary high beam flasher, and lighting controls built into one OE-style replacement.
Compatible With select Kia Sportage, Hyundai Tucson, and Hyundai Accent applications, this CBS-1622 switch uses a plug-in rectangular female connector and bolt-on attachment for a direct-fit service replacement.
Key Features
- Standard Ignition CBS-1622 headlight dimmer switch
- Combination switch with lighting and turn signal functions
- 12-volt electrical design
- Plug-in, rectangular female connector
- Bolt-on attachment method
- Black plastic finish
- Indicator markings included
- Turn signal/directional indicator included
- Main light operator included
- Latching high beam and momentary high beam flasher included
Detailed Description
The Standard Ignition CBS-1622 is a new headlight dimmer switch built for vehicles that use an integrated combination switch at the steering column. It supports headlight dimming, turn signal operation, and primary lighting control through a single 16-terminal blade-style connection. This part cross-references Beck/Arnley 201-1947 and Standard Ignition CBS-1622 for the same application.
Fits 2005-2010 Kia Sportage, N/A, with notes for without fog lights and without automatic headlights. Fits 2012 Kia Sportage, N/A, with notes for without fog lights and without automatic headlights. Fits 2005-2009 Hyundai Tucson, N/A. Fits 2000-2005 Hyundai Accent, N/A. Use CBS-1622 when replacing a worn or malfunctioning switch on these Kia Sportage and Hyundai models.
What It Helps Fix
- Headlights that do not switch between low and high beam correctly
- Turn signal operation problems at the steering column
- Intermittent or failed lighting control input
- High beam flasher or latch function issues
- Worn switch feel, sticking, or inconsistent electrical contact
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle equipment before installation. This switch uses a single rectangular plug-in connector and bolt-on mounting. Confirm the vehicle is equipped without fog lights and without automatic headlights where noted for Kia Sportage applications. Always compare the original switch layout and indicator markings to the replacement part before final assembly.
Quality Assurance
Standard Ignition supplies this CBS-1622 as a new replacement switch for service use. Its OE-style electrical layout and application-specific fitment support dependable restoration of factory lighting and turn signal functions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Kia | Sportage | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2010 | Kia | Sportage | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2009 | Hyundai | Tucson | N/A | — |
| 2009 | Kia | Sportage | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2008 | Hyundai | Tucson | N/A | — |
| 2008 | Kia | Sportage | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2007 | Hyundai | Tucson | N/A | — |
| 2007 | Kia | Sportage | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2006 | Hyundai | Tucson | N/A | — |
| 2006 | Kia | Sportage | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2005 | Hyundai | Accent | N/A | — |
| 2005 | Hyundai | Tucson | N/A | — |
| 2005 | Kia | Sportage | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2004 | Hyundai | Accent | N/A | — |
| 2003 | Hyundai | Accent | N/A | — |
| 2002 | Hyundai | Accent | N/A | — |
| 2001 | Hyundai | Accent | N/A | — |
| 2000 | Hyundai | Accent | N/A | — |
