OE Quality
60-Day Returns

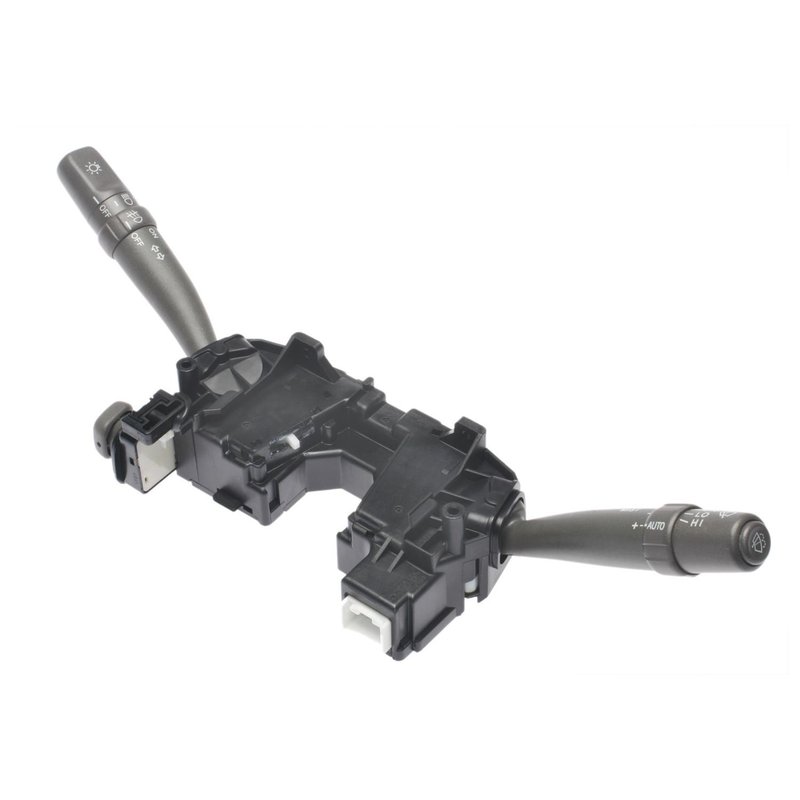

Standard Ignition CBS-1655 Headlight Dimmer Switch
Headlight Dimmer Switch for Lexus LS430
Standard Ignition CBS-1655 is a new combination headlight dimmer switch built for 12-volt vehicles with the listed Lexus LS430 fitment. It combines lighting, turn signal, wiper, and washer controls in one bolt-on unit for 2004-2006 Lexus LS430 models equipped with Rain Sensitive Wipers.
- Fits 2004-2006 Lexus LS430, N/A, with Rain Sensitive Wipers
- Bolt-on attachment method with 1 rectangular female connector
- 14 blade terminals for direct electrical connection
- Combination switch functions for lighting, turn signal, and wiper control
- Includes fog light operator, main light operator, running light operator, and turn signal control
- Includes latching high beam, momentary high beam flasher, windshield washer spray, and windshield wiper delay/speed settings
- Displayed unit with indicator markings included
Detailed Function and Fitment
Standard Ignition CBS-1655 is a headlight dimmer switch that consolidates multiple driver controls into one assembly. It includes the main light operator, fog light operator, running light operator, turn signal/directional indicator, and high beam functions, along with windshield washer spray and windshield wiper delay and speed settings. For Lexus LS430 applications, this part number CBS-1655 is listed for 2004-2006 vehicles equipped with Rain Sensitive Wipers.
This part cross-references Monroe Shocks & Struts (e.g., 8431050560, DL7055) for the same application.
Common Issues This Switch Can Address
- Headlights or high beams not responding correctly
- Turn signal or directional indicator control failure
- Fog light or running light switch malfunction
- Windshield wiper delay or speed control problems
- Washer spray activation issues at the steering column switch
Installation Notes and Tips
Verify connector shape, terminal count, and vehicle equipment before installation. CBS-1655 uses a bolt-on design with a single rectangular female connector and 14 blade terminals, so matching the original switch configuration is important. Confirm the vehicle is a 2004, 2005, or 2006 Lexus LS430 with Rain Sensitive Wipers before ordering.
Quality Assurance
Standard Ignition CBS-1655 is a new replacement switch from Standard Ignition, a brand known for electrical and switch components in automotive service applications. Confirmed fitment is listed for 2004-2006 Lexus LS430 models with Rain Sensitive Wipers.
| Brand | Standard Ignition |
|---|---|
| Part Number | CBS-1655 |
| Attachment Method | Bolt on |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | Yes |
| Functions | Combination switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Number Of Wiper Delay Settings | 4 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 14 |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Lexus | LS430 | N/A | Compatible with vehicles equipped with Rain Sensitive Wipers. |
| 2005 | Lexus | LS430 | N/A | Compatible with vehicles equipped with Rain Sensitive Wipers. |
| 2004 | Lexus | LS430 | N/A | Compatible with vehicles equipped with Rain Sensitive Wipers. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
