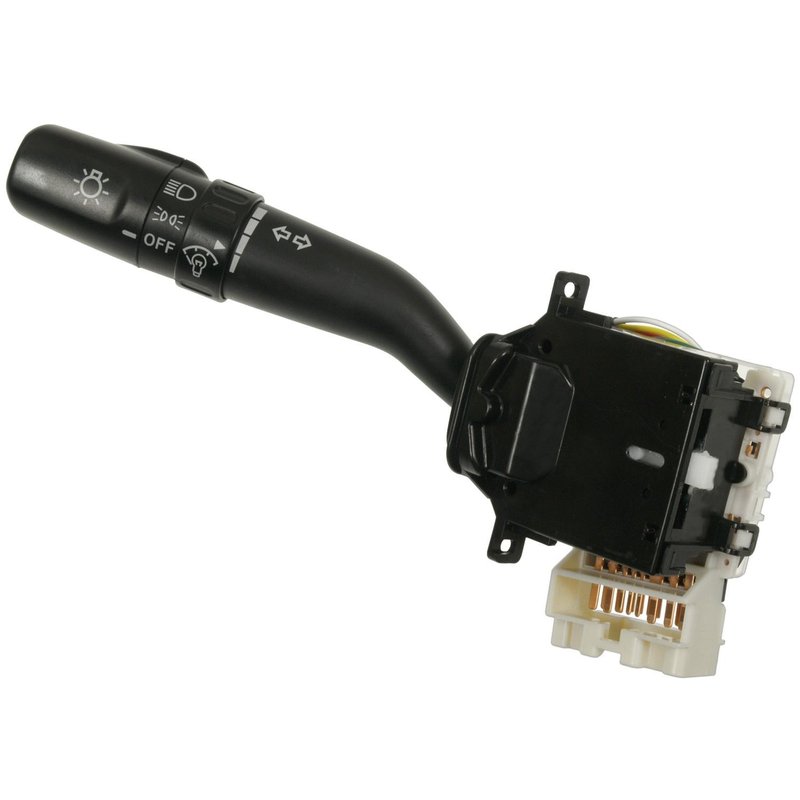

Standard Ignition CBS-1696 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1696 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Subaru · 15 vehicles |
Bolt-on installation. Female connector and blade terminals simplify replacement.
Combination switch. Controls headlights and turn signals in one unit.
New switch. Built with indicator markings and a latching high-beam operator.
Cross-references Standard Ignition CBS-1696, 83115AFE051 and DL7096 for the same application. See all 5.
Headlight Dimmer Switch for Subaru Column-Mounted Applications
Standard Ignition CBS-1696 is a new headlight dimmer switch with combination-switch functionality for select Subaru models. It provides headlight beam control and turn signal operation in one column-mounted unit, with fitment for vehicles that use the dimmer switch on the steering column.
- Fits 2005-2008 Subaru Forester, N/A
- Fits 2005-2007 Subaru Impreza, N/A
- Fits 2006 Subaru Forester, N/A, column mounted - fits vehicles with headlight dimmer switch located on the steering column
- Standard Ignition CBS-1696 replacement switch for direct-fit service applications
- Combination switch design with main light operator, latching high beam operator, momentary high beam flasher, and turn signal control
- 12-volt electrical component with 1 rectangular female connector and 16 blade terminals
- Bolt-on attachment method for column-mounted installation
- Indicator markings included for driver interface visibility
Detailed Product Overview
Standard Ignition CBS-1696 is built as a headlight dimmer switch for Subaru Forester and Subaru Impreza applications that use a steering-column-mounted switch assembly. It combines headlight dimming and turn signal functions in a single electrical control, with displayed indicator markings and the switching actions needed for high-beam and low-beam operation. This part cross-references Dorman (e.g., SW5504) for the same application. For buyers searching for a Subaru Forester headlight dimmer switch or Subaru Impreza combination switch, CBS-1696 provides the correct electrical layout and connector style for the listed vehicles.
Common Problems This Part Can Address
- Intermittent or inoperative high-beam switching
- Turn signal lever response issues
- Headlight beam selection problems at the steering column
- Worn internal switch contacts causing inconsistent lighting control
- Broken or unreliable combination-switch operation on the column
Installation Notes and Tips
Verify that the vehicle uses a column-mounted headlight dimmer switch before ordering. Match the connector shape, terminal count, and switch layout to the original unit on the Subaru Forester or Subaru Impreza. Because this is a bolt-on electrical switch, careful alignment and secure connector engagement are important during installation.
Quality Assurance
Standard Ignition supplies this CBS-1696 switch as a new replacement electrical component for service use. It is specified with the listed connector, terminal, voltage, and function details to support accurate replacement selection.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Subaru | Forester | — | — | — | N/A | — |
| 2007 | Subaru | Forester | — | — | — | N/A | — |
| 2007 | Subaru | Forester | — | 2.5L | H4 | N/A | — |
| 2007 | Subaru | Impreza | — | 2.5L | H4 | N/A | — |
| 2007 | Subaru | Impreza | WRX STI | 2.5L | H4 | N/A | — |
| 2007 | Subaru | Impreza | WRX STI Limited | 2.5L | H4 | N/A | — |
| 2007 | Subaru | Impreza | WRX STI Limited | — | — | N/A | — |
| 2007 | Subaru | Impreza | WRX STI | — | — | N/A | — |
| 2006 | Subaru | Forester | — | — | — | N/A | Column Mounted - fits vehicles with headlight dimmer switch located on the steering column |
| 2006 | Subaru | Forester | — | 2.5L | H4 | N/A | — |
| 2006 | Subaru | Forester | — | — | — | N/A | — |
| 2006 | Subaru | Impreza | — | 2.5L | H4 | N/A | — |
| 2006 | Subaru | Impreza | — | — | — | N/A | — |
| 2005 | Subaru | Forester | — | — | — | N/A | — |
| 2005 | Subaru | Impreza | — | — | — | N/A | — |
