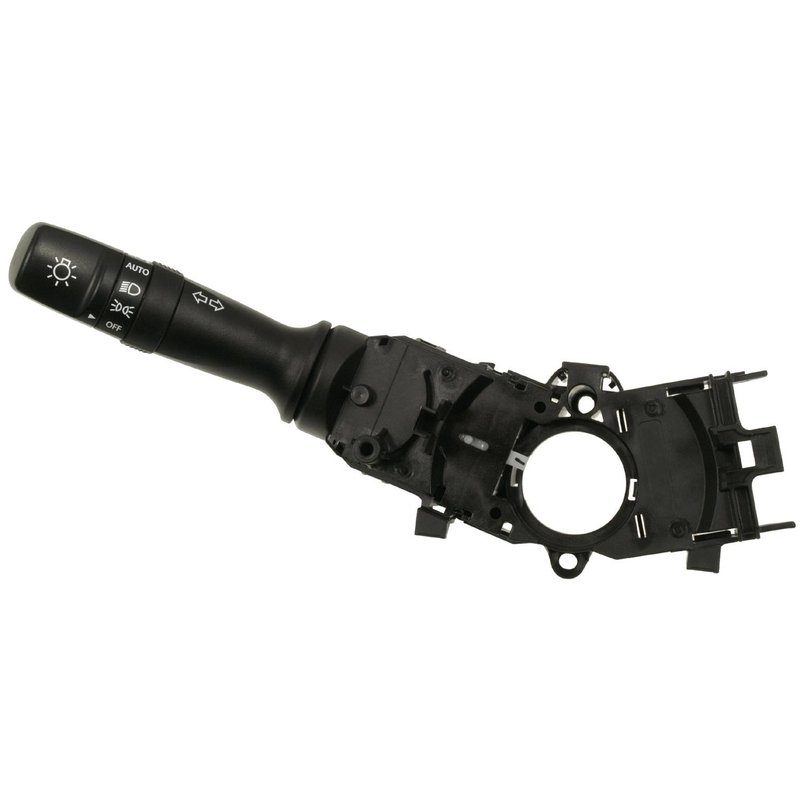

Standard Ignition CBS-1768 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1768 |
|---|---|
| Attachment Method | Snap Fit |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Hyundai · 6 vehicles |
Combination switch. Controls lighting and turn signal functions in one unit.
Snap-fit design. Installs with a plug-in connector for straightforward replacement.
Indicator markings included. Makes the switch easier to read and operate.
Cross-references Standard Ignition CBS-1768, 1S11422 and 18-2490 for the same application. See all 8.
Headlight Dimmer Switch for Hyundai Applications
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1768. It is a direct-fit combination switch for select Hyundai models with automatic headlights and no fog lights, including 2011-2012 Hyundai Elantra and 2011-2012 Hyundai Sonata, plus 2013 Hyundai Sonata through 6/13.
- Standard Ignition CBS-1768 headlight dimmer switch
- Combination switch with lighting controls and turn signal control
- Includes main light operator, running light operator, and momentary high beam flasher
- Latching high beam operator and indicator markings included
- Snap-fit attachment with one rectangular female plug-in connector
- 12-volt electrical design with 13 blade terminals
- Black plastic finish
- New replacement part
Detailed Product Overview
The CBS-1768 is a headlight dimmer switch built for vehicles that use an integrated combination switch to manage exterior lighting and directional signaling. It supports main lighting functions, high beam operation, running lights, and turn signal control in one assembly. For Hyundai Elantra and Hyundai Sonata owners, this part number CBS-1768 provides a direct replacement option when the original switch shows wear or inconsistent operation.
This part cross-references Standard Ignition CBS-1768 for the same application.
Common Problems This Switch Can Address
- Intermittent or non-functioning high beam activation
- Headlights that do not switch properly between lighting modes
- Turn signal control issues from a worn combination switch
- Dimmer lever or stalk movement that feels loose or unresponsive
- Indicator markings that no longer align with the selected lighting function
Installation Notes and Fitment
Compatible With 2011-2012 Hyundai Elantra, w/o Fog Lights; w/ Auto Headlights. Compatible With 2011-2012 Hyundai Sonata, w/o Sport Package; w/ Auto Headlights. Compatible With 2013 Hyundai Sonata, w/o Fog Lights; w/ Auto Headlights; To 6/13. Verify connector shape, terminal count, and vehicle equipment before installation. This CBS-1768 switch uses a snap-fit attachment and a single rectangular plug-in connector for a clean OE-style replacement.
Quality Assurance
Standard Ignition supplies this new electrical switch as a replacement component for select Hyundai lighting and signal systems. The design follows the listed OE-style connector and terminal configuration for proper fitment on the specified vehicles.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Hyundai | Sonata | — | N/A | w/o Fog Lights; w/ Auto Headlights; To 6/13 |
| 2012 | Hyundai | Elantra | GLS | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2012 | Hyundai | Sonata | — | N/A | w/o Sport Package; w/ Auto Headlights |
| 2011 | Hyundai | Elantra | GLS | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2011 | Hyundai | Elantra | Limited | N/A | w/o Fog Lights; w/ Auto Headlights |
| 2011 | Hyundai | Sonata | — | N/A | w/o Sport Package; w/ Auto Headlights |
