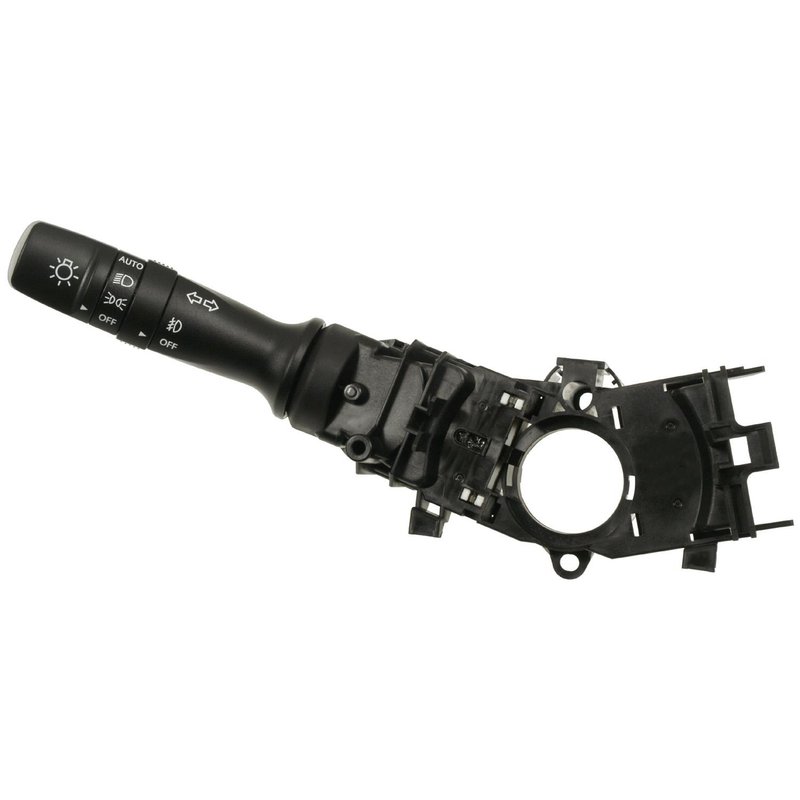

Standard Ignition CBS-1769 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1769 |
|---|---|
| Attachment Method | Snap Fit |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | Yes |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Hyundai and Kia · 24 vehicles |
Combination switch. Combines headlight, turn signal, and fog light controls in one unit.
Snap-fit design. Installs securely with a single rectangular connector.
New replacement part. Built with a black plastic finish and 13 blade terminals.
Cross-references Standard Ignition CBS-1769, 4102M110 and 934102M115 for the same application. See all 6.
Headlight Dimmer Switch for Hyundai and Kia
Standard Ignition CBS-1769 is a new headlight dimmer switch built as a combination switch for vehicles with automatic headlights and fog light control. It uses a snap-fit attachment, a single female rectangular connector, and 13 male blade terminals for a direct electrical connection.
Compatible With 2010-2013 Hyundai Tucson, 2010-2013 Hyundai Genesis Coupe, 2010 Hyundai Genesis, 2010-2013 Kia Forte, 2012 Kia Forte5, and 2012 Kia Sportage in the listed automatic-headlight and fog-light configurations. This part number, CBS-1769, also cross-references 4102M110 and DL7169 for the same application.
Key Features
- Standard Ignition CBS-1769 headlight dimmer switch
- Combination switch functions for lighting and turn signal control
- Includes main light operator, running light operator, fog light operator, and turn signal control
- Supports latching high beam, momentary high beam flasher, and indicator markings
- Black plastic finish with displayed markings
- 12-volt electrical design
- Snap-fit mounting with one rectangular female connector
Detailed Description
Standard Ignition CBS-1769 is a replacement headlight dimmer switch for select Hyundai and Kia vehicles equipped with automatic headlights, and in some applications, fog lights. The combination-switch layout integrates the main lighting controls, high-beam functions, running light operation, and turn signal/directional indicator operation into one assembly. Its black plastic construction, snap-fit attachment method, and blade-terminal connector layout support a clean OE-style electrical interface.
Use CBS-1769 when servicing a worn or malfunctioning lighting control switch on a Hyundai Tucson, Hyundai Genesis Coupe, Hyundai Genesis, Kia Forte, Kia Forte5, or Kia Sportage with the listed equipment package. The part number CBS-1769 is also listed with interchange references 4102M110 and DL7169.
What This Switch Helps Address
- Intermittent or inoperative headlight control
- High beams that do not latch or flash correctly
- Fog light switch operation problems
- Turn signal control issues at the steering-column switch
- Dimmer switch wear that affects lighting selection
Installation Notes and Tips
Verify the vehicle’s equipment before ordering, especially automatic headlights and fog light configuration. Confirm connector shape, terminal count, and switch layout against the original part before installation. This switch uses a snap-fit attachment and a single connector, so matching the OE-style interface is important for proper fitment and function.
Quality Assurance
Standard Ignition supplies replacement electrical components for service applications, and CBS-1769 is a new part built for the listed vehicle fitments and lighting functions.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Hyundai | Tucson | — | — | — | N/A | For vehicles equipped with automatic headlights |
| 2013 | Hyundai | Tucson | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2013 | Kia | Forte | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2012 | Hyundai | Genesis Coupe | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2012 | Hyundai | Tucson | — | — | — | N/A | — |
| 2012 | Kia | Forte | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2012 | Kia | Forte5 | — | 2.0L | L4 | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2012 | Kia | Forte5 | — | 2.4L | L4 | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2012 | Kia | Sportage | — | — | — | N/A | — |
| 2011 | Hyundai | Genesis Coupe | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2011 | Hyundai | Tucson | — | — | — | N/A | — |
| 2011 | Kia | Forte | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2010 | Hyundai | Genesis | — | 3.8L | V6 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Genesis Coupe | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2010 | Hyundai | Genesis Coupe | 2.0T R-Spec | 2.0L | L4 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Genesis Coupe | 3.8 Grand Touring | 3.8L | V6 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Genesis Coupe | 3.8 Track | 3.8L | V6 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Genesis Coupe | 2.0T Premium | 2.0L | L4 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Genesis Coupe | 2.0T | 2.0L | L4 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Genesis Coupe | 3.8 | 3.8L | V6 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Genesis Coupe | 2.0T Track | 2.0L | L4 | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Tucson | — | — | — | N/A | For vehicles equipped with automatic headlights |
| 2010 | Hyundai | Tucson | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
| 2010 | Kia | Forte | — | — | — | N/A | Fits vehicles with Fog Lights and Auto Headlights. |
