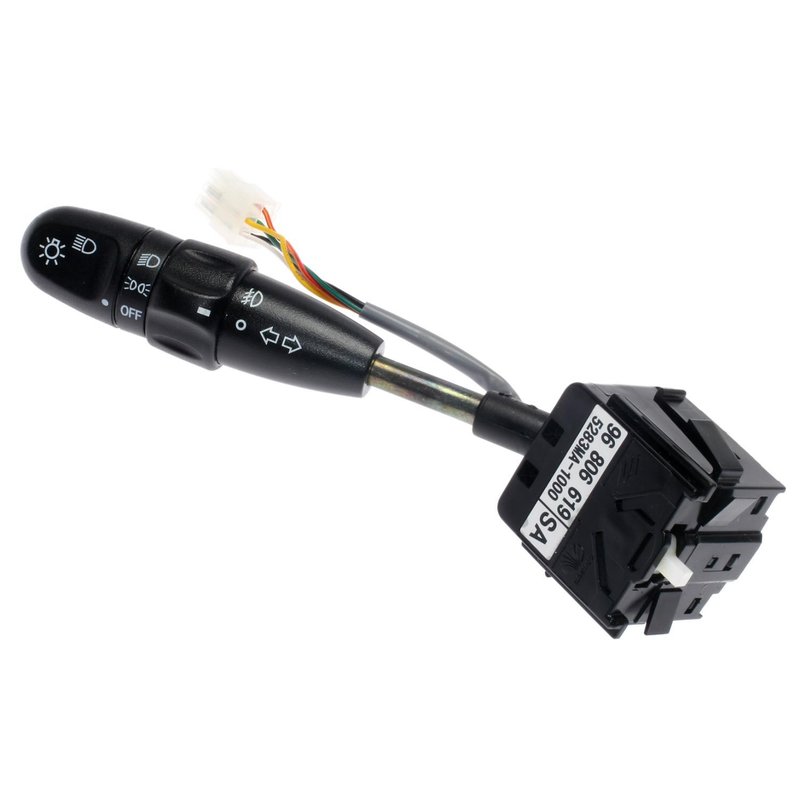

Standard Ignition CBS-1782 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1782 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female; Male |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | Yes |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male; Female |
| Terminal Type | Blade; Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Chevrolet and Pontiac · 18 vehicles |
OE direct replacement. Restores combination switch functions with proper fit, form, and function.
Copper alloy conductors. Deliver strong conductivity with low resistive losses.
Bolt-on installation. Uses a direct-fit design for straightforward replacement.
Cross-references 1S11158, 53-58954 and 96806619 for the same application. See all 6.
Headlight Dimmer Switch for Select GM Compact Cars
Restore headlight and turn signal control with this Standard Ignition headlight dimmer switch. The CBS-1782 is a direct-fit OE replacement built for reliable combination switch operation in select Chevrolet Aveo, Chevrolet Aveo5, Pontiac G3, and Pontiac G3 Wave applications.
- Direct-fit OE replacement for factory combination switch function
- Fits 2009-2011 Chevrolet Aveo and Aveo5, with fog light-equipped applications noted
- Fits 2009-2010 Pontiac G3 and 2009 Pontiac G3 Wave
- Black plastic finish with bolt-on attachment method
- 2 connectors, rectangular connector shape, 12-volt design
- Includes fog light operator, main light operator, latching high beam operator, momentary high beam flasher, and turn signal control
- Indicator markings included for clear driver operation
- New switch with copper alloy conductors for low-resistance electrical flow
Detailed Product Overview
Standard Ignition CBS-1782 is engineered to restore the functions of the steering column combination switch in vehicles that rely on integrated lighting and signal controls. It is built to OE specifications for proper fit, form, and function, with copper alloy conductors and a robust housing intended to meet the demands of daily service use. This part cross-references Standard Ignition 1S11158 and Dorman 53-58954 for the same application.
Use CBS-1782 when servicing a worn or malfunctioning headlight dimmer switch on a Chevrolet Aveo, Chevrolet Aveo5, Pontiac G3, or Pontiac G3 Wave. The part number CBS-1782 is also useful when searching for an OE-style replacement switch for 2009-2011 Chevrolet Aveo and Aveo5 models equipped with fog lights.
Common Problems This Switch Can Address
- Intermittent or inoperative high beam switching
- Headlight selector not responding correctly
- Turn signal control issues at the combination switch
- Fog light switch function loss
- Dimmer switch wear from repeated use
Installation Notes and Tips
Verify connector style, terminal count, and vehicle equipment before installation. This switch uses a bolt-on attachment method and 2 rectangular connectors with male and female terminals. Confirm fog light-equipped fitment on applicable Chevrolet Aveo and Aveo5 models before ordering. Professional installation is recommended to ensure correct steering column switch operation and proper electrical connection.
Quality Assurance
Standard Ignition manufactures this switch to OE specification and maintains quality control throughout production. The CBS-1782 is built with durable materials and copper alloy conductors to support consistent electrical performance in service applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Chevrolet | Aveo | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2011 | Chevrolet | Aveo | — | 1.6L | L4 | N/A | — |
| 2011 | Chevrolet | Aveo5 | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2011 | Chevrolet | Aveo5 | — | 1.6L | L4 | N/A | — |
| 2010 | Chevrolet | Aveo | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2010 | Chevrolet | Aveo | — | — | — | N/A | — |
| 2010 | Chevrolet | Aveo5 | — | 1.6L | L4 | N/A | Compatible with vehicles equipped with fog lights. |
| 2010 | Chevrolet | Aveo5 | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2010 | Chevrolet | Aveo5 | LS | — | — | N/A | — |
| 2010 | Pontiac | G3 | — | — | — | N/A | — |
| 2009 | Chevrolet | Aveo | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2009 | Chevrolet | Aveo | — | — | — | N/A | — |
| 2009 | Chevrolet | Aveo5 | — | 1.6L | L4 | N/A | Compatible with vehicles equipped with fog lights. |
| 2009 | Chevrolet | Aveo5 | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2009 | Chevrolet | Aveo5 | LT | — | — | N/A | — |
| 2009 | Pontiac | G3 | — | — | — | N/A | — |
| 2009 | Pontiac | G3 Wave | — | — | — | N/A | — |
| 2009 | Pontiac | G3 Wave | — | 1.6L | L4 | N/A | — |
