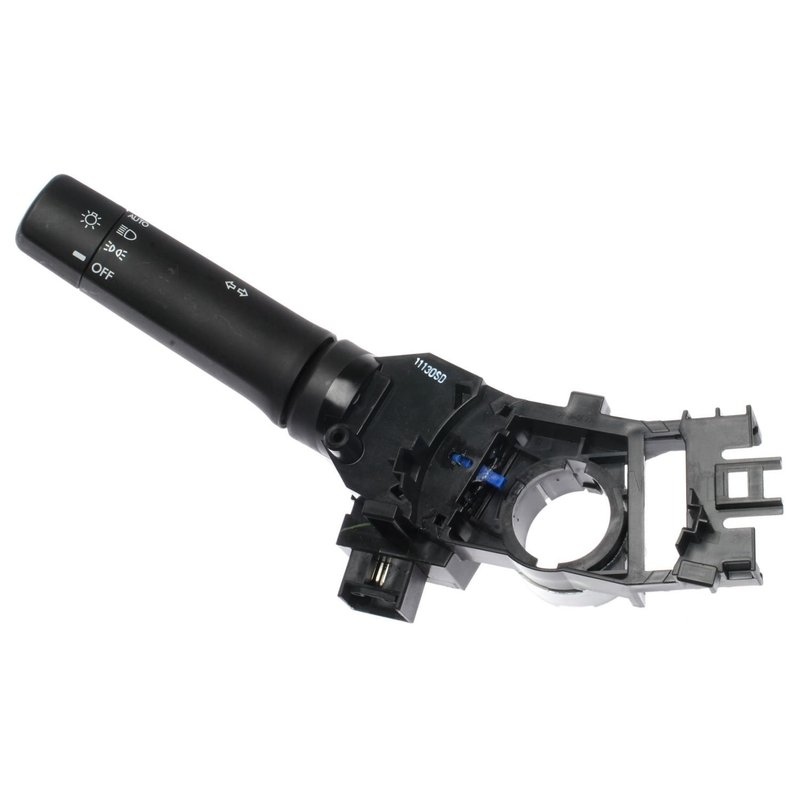

Standard Ignition CBS-1783 Headlight Dimmer Switch
Reliable Headlight Dimmer Switch for Subaru Legacy and Outback
The Standard Ignition CBS-1783 headlight dimmer switch is designed to restore proper lighting control for your Subaru Legacy or Outback. This new combination switch offers essential functions including turn signal control, high beam operation, and running light activation, ensuring safe and efficient vehicle lighting performance.
Key Features of Standard Ignition CBS-1783
- Direct bolt-on attachment method for secure installation
- Female rectangular connector with one cavity for easy wiring
- Includes indicator markings for clear operation
- Functions as a combination switch with turn signal and headlight dimmer controls
- Supports latching high beam and momentary high beam flasher functions
- Operates main lights, running lights, and turn signals
- 12 male blade terminals for reliable electrical connections
- Designed for 12-volt electrical systems
- New part, not remanufactured
Detailed Product Description
The Standard Ignition CBS-1783 headlight dimmer switch is engineered specifically for Subaru Legacy and Outback models, providing precise control over your vehicle’s lighting system. This combination switch integrates multiple functions including turn signal activation, main and running light operation, and high beam control with both latching and momentary flash capabilities. The switch features a single female rectangular connector with one cavity and 12 male blade terminals, ensuring compatibility with the factory wiring harness. Its bolt-on attachment method allows for straightforward replacement without modifications. Indicator markings on the switch enhance usability by clearly identifying each function.
Common Issues Addressed by This Headlight Dimmer Switch
- Intermittent or non-functioning turn signals on Subaru Legacy or Outback
- Failure of high beam latching or momentary flash operation
- Main or running lights not responding to switch input
- Damaged or worn combination switch causing lighting control problems
- Electrical connection issues due to faulty switch terminals
Installation Notes and Tips
- Ensure vehicle battery is disconnected before beginning installation
- Locate the existing headlight dimmer switch on the steering column for removal
- Use appropriate tools to unbolt the old switch and disconnect the female connector
- Align the new CBS-1783 switch and bolt it securely in place
- Reconnect the female rectangular connector and verify all functions before reassembling
- Test turn signals, high beams, and running lights to confirm proper operation
Quality Assurance and Warranty
The Standard Ignition CBS-1783 is a new, OEM-quality replacement part manufactured to meet or exceed original equipment specifications. It undergoes rigorous testing to ensure reliable electrical performance and durability. This part is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship for a specified period. Using this switch helps maintain the safety and functionality of your Subaru Legacy or Outback lighting system.
| Brand | Standard Ignition |
| Part Number | CBS-1783 |
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Subaru | Legacy | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2014 | Subaru | Outback | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2013 | Subaru | Legacy | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2013 | Subaru | Outback | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2012 | Subaru | Legacy | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2012 | Subaru | Outback | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2011 | Subaru | Legacy | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2011 | Subaru | Outback | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2010 | Subaru | Legacy | N/A | Not compatible with vehicles equipped with Fog Lights. |
| 2010 | Subaru | Outback | N/A | Not compatible with vehicles equipped with Fog Lights. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
