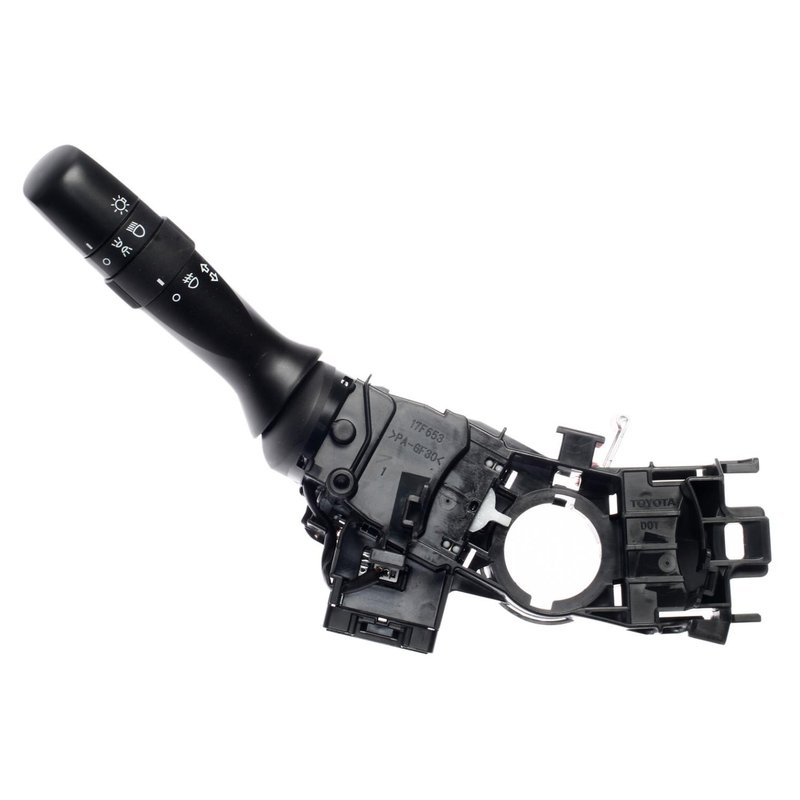

Standard Ignition CBS-1788 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1788 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | Yes |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Toyota · 10 vehicles |
Bolt-on installation. Direct-fit switch with a single rectangular connector.
Combination switch. Combines headlight, turn signal, fog light, and high beam controls.
New construction. Black plastic finish with 12 blade terminals for dependable operation.
Cross-references Standard Ignition CBS-1788, 8414052150 and DL7188 for the same application. See all 5.
Headlight Dimmer Switch for Toyota Yaris
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1788. It is a new, bolt-on combination switch for 12-volt systems and is built with a black plastic finish, a female rectangular connector, and blade terminals for direct replacement service.
Fits 2006-2011 Toyota Yaris, N/A, with fog lights. Fits 2007-2010 Toyota Yaris, N/A.
- Standard Ignition CBS-1788 headlight dimmer switch
- Combination switch functions for lighting and turn signal control
- Main light operator, latching high beam operator, and momentary high beam flasher included
- Fog light operator included
- Turn signal and directional indicator control included
- 12-volt electrical design with one rectangular female connector
- Bolt-on attachment method for direct mounting
- Black plastic finish
Detailed Product Overview
The CBS-1788 is a replacement headlight dimmer switch for Toyota Yaris models equipped with fog lights. It combines multiple driver controls into one unit, including headlight switching, high beam operation, fog light control, and turn signal functions. The switch is new and uses a single connector with 12 blade terminals for vehicle-specific electrical connection.
This part cross-references Standard Ignition CBS-1788 for the same application.
Common Problems This Part Can Address
- Intermittent or inoperative headlight switching
- High beams that do not latch or flash correctly
- Fog light control that no longer responds at the stalk
- Turn signal or directional indicator switch failure
- Worn or damaged combination switch contacts
Installation Notes and Tips
Verify connector style, terminal count, and vehicle equipment before installation. This switch is specified for Toyota Yaris applications with fog lights where noted in the fitment data. Confirm the existing switch layout and electrical connection match CBS-1788 before replacement.
Quality Assurance
Standard Ignition supplies replacement electrical components for service applications, and this CBS-1788 switch is a new part built to match the listed fitment and connector specifications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Toyota | Yaris | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2010 | Toyota | Yaris | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2010 | Toyota | Yaris | 1.5L | L4 | N/A | — |
| 2009 | Toyota | Yaris | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2009 | Toyota | Yaris | 1.5L | L4 | N/A | — |
| 2008 | Toyota | Yaris | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2008 | Toyota | Yaris | 1.5L | L4 | N/A | — |
| 2007 | Toyota | Yaris | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2007 | Toyota | Yaris | 1.5L | L4 | N/A | — |
| 2006 | Toyota | Yaris | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| No rows match your filter. | ||||||
