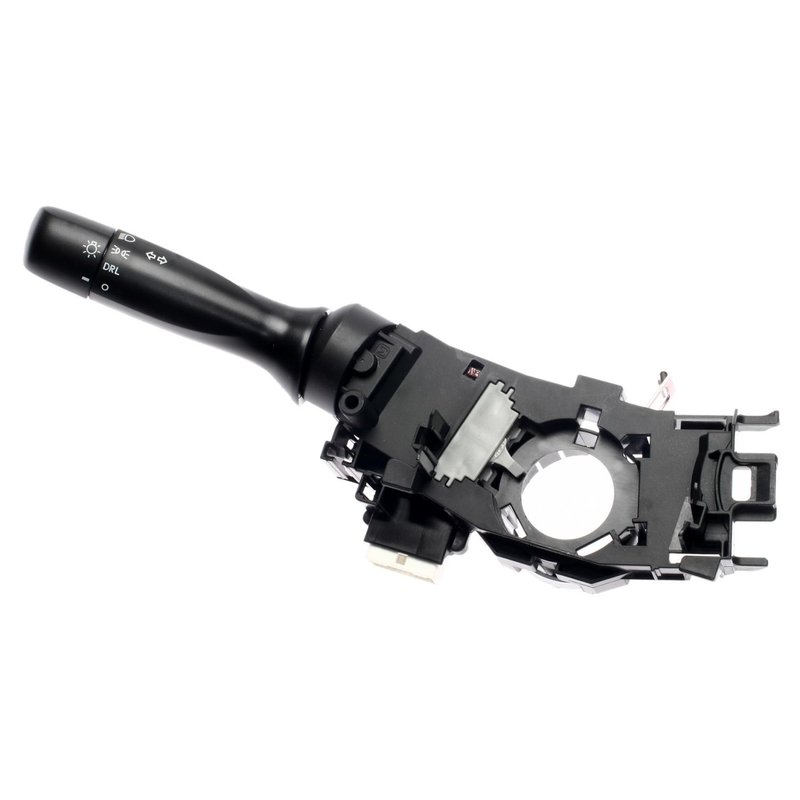

Standard Ignition CBS-1796 Headlight Dimmer Switch

Reliable Headlight Dimmer Switch for Toyota Sienna

The Standard Ignition CBS-1796 headlight dimmer switch is designed specifically for Toyota Sienna models, providing precise control over your vehicle's lighting functions. This new combination switch ensures smooth operation of headlights, turn signals, and high beams.

• Bolt-on attachment method for secure installation
• Female rectangular connector with one cavity
• Includes main light, running light, and turn signal controls
• Features latching high beam operator and momentary high beam flasher
• Indicator markings clearly displayed for ease of use
• Operates on standard 12-volt electrical systems
• Equipped with 10 male pin terminals for reliable connectivity

Product Details and Functionality

The Standard Ignition CBS-1796 headlight dimmer switch is a combination switch that integrates multiple lighting functions into a single unit. It includes controls for the main headlights, running lights, turn signals, and high beam operations. The switch features a bolt-on attachment method, ensuring a stable and secure fit within the Toyota Sienna's electrical system. Its female rectangular connector with one cavity and 10 male pin terminals provide a dependable electrical connection. Indicator markings are included on the switch for clear identification of each function, enhancing driver convenience and safety.

Compatible Vehicles and Applications

This headlight dimmer switch is compatible with Toyota Sienna models, making it a direct replacement part for vehicles requiring the CBS-1796 part number. It is designed to restore proper lighting control functions, including turn signals and high beam operations, ensuring your vehicle meets safety standards and operates as intended.

• Resolves issues with non-functioning or intermittent headlights
• Restores turn signal and directional indicator functionality
• Fixes problems with high beam latching and flashing
• Eliminates faulty or worn combination switch behavior
• Addresses electrical connection failures due to damaged terminals

Installation Notes and Tips

Installation of the Standard Ignition CBS-1796 headlight dimmer switch requires basic automotive electrical knowledge. The bolt-on attachment method simplifies mounting, but care should be taken to properly align the connector and terminals. Disconnect the vehicle battery before installation to prevent electrical shorts. Verify that the female rectangular connector is securely attached and that all 10 male pin terminals are properly seated. Testing all lighting functions after installation is recommended to ensure correct operation.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The CBS-1796 headlight dimmer switch is a new component, not remanufactured, providing consistent quality. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
