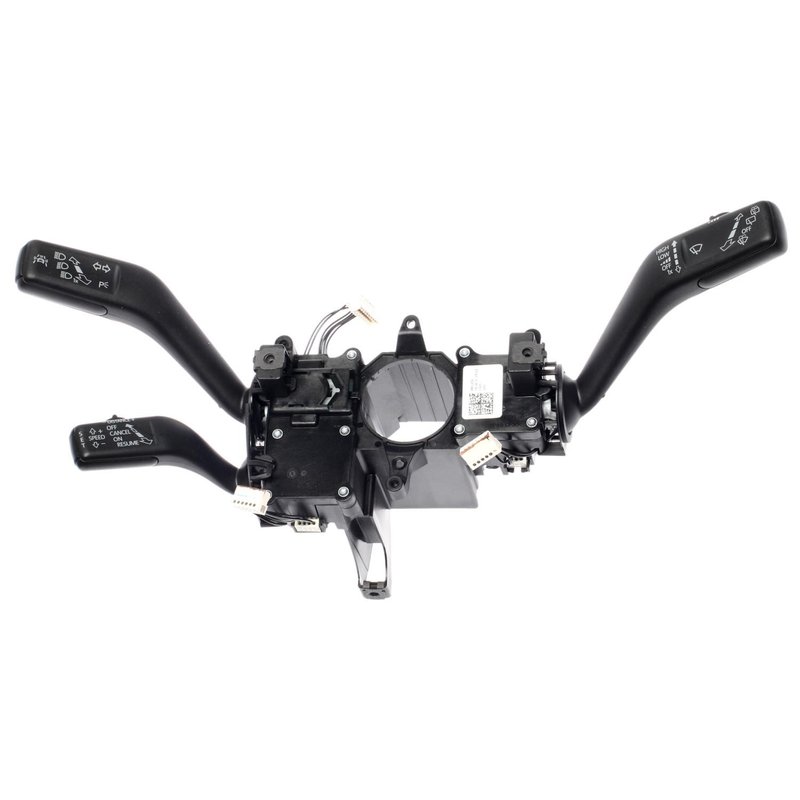

Standard Ignition CBS-1876 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS-1876

The Standard Ignition Headlight Dimmer Switch CBS-1876 is designed specifically for Volkswagen Passat models, providing reliable control over your vehicle's lighting and cruise control functions. This combination switch integrates multiple features into a single unit, ensuring seamless operation and enhanced driving convenience.

• Snap fit attachment method for straightforward installation
• Male rectangular connector with 3 cavities and 16 female slide terminals
• Includes cruise control functions: On/Off, Set, Resume, Cancel, and Speed Adjustment
• Turn signal and directional indicator controls integrated
• Momentary high beam flasher and latching high beam operator included
• Indicator markings displayed for easy identification
• Rear window washer spray function included
• Multiple wiper speed and delay settings: 3 speed settings and 4 delay settings

Detailed Product Description

The CBS-1876 headlight dimmer switch from Standard Ignition is a new, direct replacement part engineered for Volkswagen Passat vehicles. This combination switch consolidates headlight dimming, turn signal operation, and cruise control management into one compact unit. The snap fit attachment method allows for secure mounting without additional hardware. Featuring a male rectangular connector with three cavities and sixteen female slide terminals, this switch ensures reliable electrical connections. The switch supports multiple cruise control functions including On/Off, Set, Resume, Cancel, and speed adjustment, enhancing driver control. Additionally, it includes a momentary high beam flasher and a latching high beam operator, along with turn signal and directional indicator controls. The rear window washer spray is also integrated, while the switch offers three wiper speed settings and four delay settings for versatile windshield wiper operation. Indicator markings are clearly displayed to assist with operation.

Common Applications and Problem Resolution

• Restores headlight dimming and high beam flashing functions on Volkswagen Passat
• Replaces faulty or unresponsive turn signal and directional indicator controls
• Resolves cruise control operation issues including On/Off, Set, Resume, and Cancel functions
• Fixes malfunctioning rear window washer spray activation
• Addresses inconsistent windshield wiper speed and delay settings

Installation Notes and Tips

Installation of the Standard Ignition CBS-1876 headlight dimmer switch requires disconnecting the vehicle battery to ensure safety. The snap fit attachment method simplifies mounting, but care should be taken to align the connector properly before securing. Verify that the male rectangular connector with three cavities mates correctly with the vehicle wiring harness. After installation, test all functions including cruise control, turn signals, high beam flashers, and rear window washer spray to confirm proper operation.

Quality Assurance and Warranty

This headlight dimmer switch is a new Standard Ignition part, manufactured to meet or exceed OEM specifications for Volkswagen Passat vehicles. While specific warranty details are not provided, Standard Ignition products typically undergo rigorous quality control to ensure durability and reliable performance in electrical and lighting systems.
