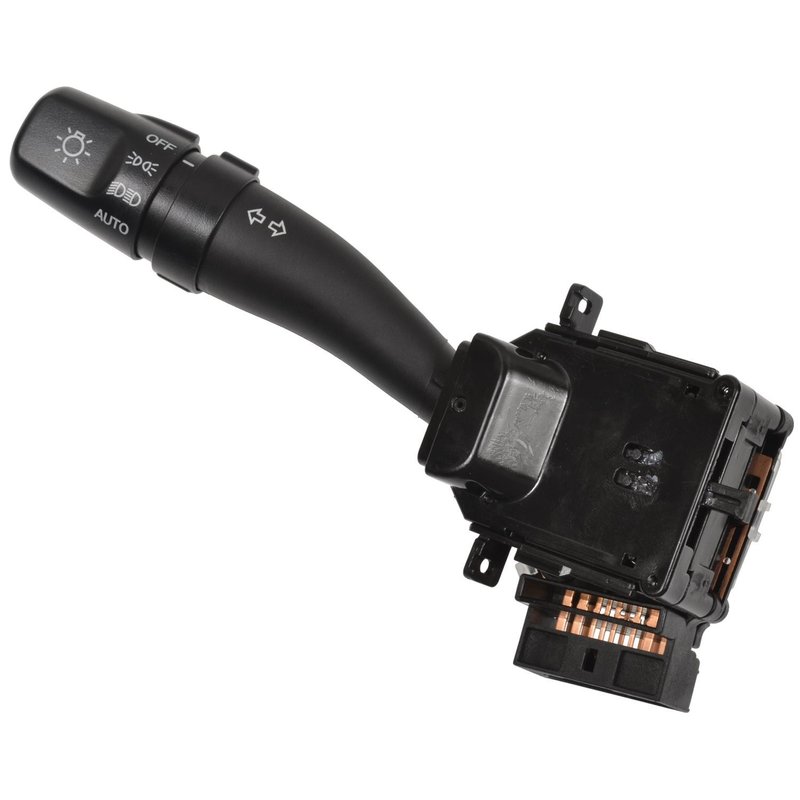

Standard Ignition CBS-1996 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-1996 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Hyundai · 5 vehicles |
Bolt-on installation. Female connector and 16 blade terminals for a straightforward electrical connection.
Combination switch. Controls headlights, turn signals, running lights, and high-beam functions in one unit.
New construction. Black plastic finish with indicator markings for a clean, factory-style look.
Cross-references Standard Ignition CBS-1996, 1S10819 and 53-23049 for the same application. See all 8.
Headlight Dimmer Switch for Hyundai Tucson
Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS-1996. It is a direct-fit combination switch for select Hyundai Tucson models with automatic headlights, including 2005 Tucson with auto headlights from 5/6/05 and 2006-2009 Tucson applications.
- Standard Ignition CBS-1996 headlight dimmer switch
- Combination switch with main light, running light, turn signal, and high beam functions
- Includes latching high beam operator and momentary high beam flasher
- Black plastic finish with bolt-on attachment method
- 1 female rectangular connector, 16 blade terminals, 12-volt electrical design
- Indicator markings included for clear driver operation
Detailed Product Overview
The CBS-1996 is a new headlight dimmer switch built for vehicles equipped with automatic headlights. It combines multiple lighting controls into one steering-column switch assembly, including the main light operator, running light operator, turn signal control, and both latching and momentary high beam functions. For Hyundai Tucson owners, this part number CBS-1996 provides the correct electrical interface and switch layout for the listed applications.
This part cross-references Standard Ignition CBS-1996 for the same application.
Common Problems This Switch Can Address
- Intermittent or non-functioning high beam operation
- Headlights that do not switch correctly between lighting modes
- Turn signal control issues at the steering column
- Worn or damaged combination switch contacts
- Broken or faded indicator markings on the original switch
Installation Notes and Tips
Compatible With 2005 Hyundai Tucson, N/A, for vehicles equipped with automatic headlights from 5/6/05. Compatible With 2006-2009 Hyundai Tucson, N/A, for vehicles equipped with automatic headlights. Verify connector style, terminal count, and vehicle lighting equipment before installation. This switch uses a bolt-on attachment method and a single female rectangular connector.
Quality Assurance
Standard Ignition supplies this as a new replacement electrical switch with OE-style fitment for the listed Hyundai Tucson applications. Part number CBS-1996 is built for 12-volt systems and uses the specified connector and terminal configuration for proper integration.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Hyundai | Tucson | N/A | For vehicles equipped with automatic headlights |
| 2008 | Hyundai | Tucson | N/A | For vehicles equipped with automatic headlights |
| 2007 | Hyundai | Tucson | N/A | For vehicles equipped with automatic headlights |
| 2006 | Hyundai | Tucson | N/A | For vehicles equipped with automatic headlights |
| 2005 | Hyundai | Tucson | N/A | w/ Auto Headlights; From 5/6/05 |
