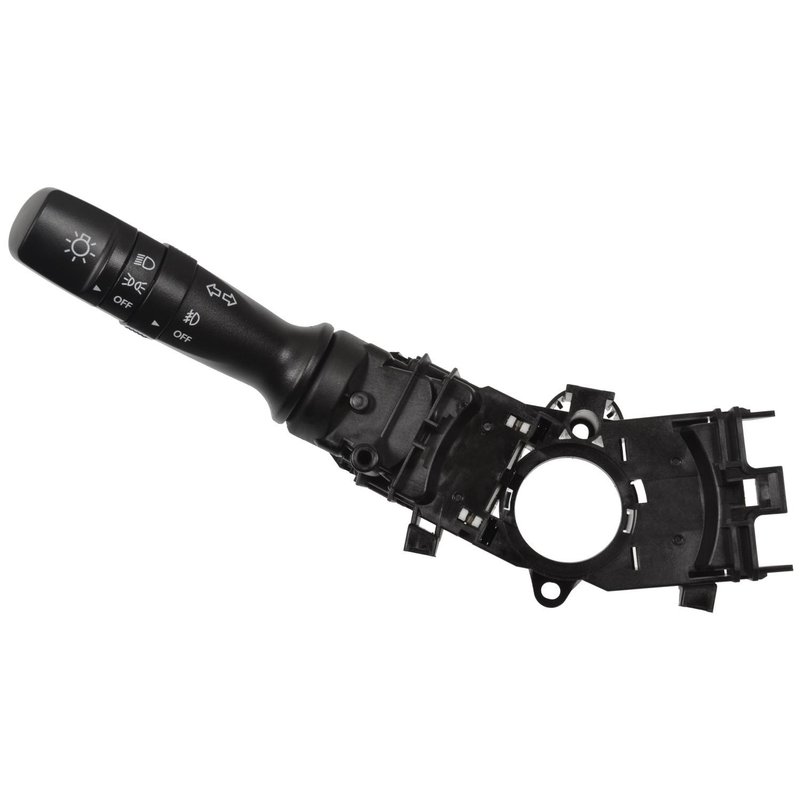

Standard Ignition CBS-2016 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-2016 |
|---|---|
| Attachment Method | Snap Fit |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | Yes |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Hyundai, Kia, and Mercedes-Benz · 57 vehicles |
Combination switch. Combines headlight dimmer, turn signal, fog light, and main light controls.
Snap-fit installation. Attaches securely with a single rectangular connector.
New replacement part. Built with 13 blade terminals for a direct electrical connection.
Cross-references Standard Ignition CBS-2016, 1S11351 and 934102M010 for the same application. See all 6.
Headlight Dimmer Switch for Select Hyundai and Kia Models
Standard Ignition CBS-2016 is a new combination headlight dimmer switch built for vehicles that use a single rectangular female connector and 12-volt electrical system. It combines headlight, high-beam, fog light, and turn signal control in one OE-style switch assembly for select Hyundai Tucson, Kia Forte, Kia Soul, and related applications.
Key Features
- Combination switch functions for headlight dimmer and turn signal control
- Includes main light operator, latching high beam operator, and momentary high beam flasher
- Fog light operator included
- Displayed indicator markings included
- Snap-fit attachment method for direct replacement applications
- Female rectangular connector with 1 connector cavity and 13 blade terminals
- New 12-volt switch assembly
Product Details
Standard Ignition CBS-2016 is a headlight dimmer switch designed to restore driver control of exterior lighting functions through a single combination switch. It includes turn signal control, headlight switching, high-beam operation, and fog light control where equipped. This part cross-references OE-style numbers such as 934102M010 and DL7416 for the same application. Common search terms for this part include Hyundai Tucson headlight dimmer switch, Kia Forte combination switch replacement, and Kia Soul headlight switch with fog light control. The CBS-2016 is listed for select 2010-2013 Hyundai Tucson, 2010-2013 Kia Forte, 2010-2013 Kia Forte Koup, 2010-2013 Kia Soul, 2011-2012 Hyundai Elantra, 2010-2012 Hyundai Genesis Coupe, 2012 Kia Sportage, 2007-2012 Mercedes-Benz R350, 2011 Hyundai Sonata, 2010-2011 Kia Soul, 2010 Hyundai Genesis, and select Mercedes-Benz GL and R-Class models.
What This Switch Can Help Resolve
- Inoperative headlight dimmer or high-beam switching
- Faulty turn signal or directional indicator control
- Nonfunctioning fog light switch operation
- Worn or intermittent combination switch contacts
- Broken indicator markings or hard-to-read switch positions
Installation Notes and Tips
Verify connector style, terminal count, and vehicle equipment before installation. This CBS-2016 is not for use with auto headlight control on certain applications, including some Hyundai Tucson, Hyundai Genesis Coupe, and Hyundai Genesis models. Fitment notes also indicate compatibility with vehicles equipped with fog lights on specific Hyundai and Kia applications. Confirm the vehicle’s original switch layout and lighting options before replacing the part.
Quality Assurance
Standard Ignition supplies this switch as a new replacement component for electrical and body control applications. The part number CBS-2016 is cataloged for direct-fit use on the listed vehicles and is built to match the required connector and terminal configuration for those applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Hyundai | Tucson | — | — | — | N/A | w/o Auto Headlight Control |
| 2013 | Hyundai | Tucson | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2013 | Kia | Forte | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2013 | Kia | Forte | — | — | — | N/A | Incl. Headlight Switch |
| 2013 | Kia | Forte Koup | — | 2.0L | L4 | N/A | — |
| 2013 | Kia | Soul | — | — | — | N/A | — |
| 2012 | Hyundai | Elantra | GLS | — | — | N/A | — |
| 2012 | Hyundai | Genesis Coupe | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2012 | Hyundai | Genesis Coupe | — | — | — | N/A | w/o Auto Headlight Control |
| 2012 | Hyundai | Tucson | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2012 | Hyundai | Tucson | — | — | — | N/A | w/o Auto Headlight Control |
| 2012 | Kia | Forte | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2012 | Kia | Forte | — | — | — | N/A | Incl. Headlight Switch |
| 2012 | Kia | Forte Koup | — | 2.0L | L4 | N/A | — |
| 2012 | Kia | Soul | — | — | — | N/A | — |
| 2012 | Kia | Sportage | — | — | — | N/A | — |
| 2012 | Mercedes-Benz | R350 | — | — | — | N/A | — |
| 2011 | Hyundai | Elantra | GLS | — | — | N/A | — |
| 2011 | Hyundai | Genesis Coupe | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2011 | Hyundai | Genesis Coupe | — | — | — | N/A | w/o Auto Headlight Control |
| 2011 | Hyundai | Sonata | — | — | — | N/A | — |
| 2011 | Hyundai | Tucson | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2011 | Hyundai | Tucson | — | — | — | N/A | w/o Auto Headlight Control |
| 2011 | Kia | Forte | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2011 | Kia | Forte | — | — | — | N/A | Incl. Headlight Switch |
| 2011 | Kia | Forte Koup | — | 2.0L | L4 | N/A | — |
| 2011 | Kia | Soul | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2011 | Kia | Soul | — | — | — | N/A | — |
| 2011 | Mercedes-Benz | R350 | — | — | — | N/A | — |
| 2010 | Hyundai | Genesis | — | 3.8L | V6 | N/A | w/o Auto Headlight Control |
| 2010 | Hyundai | Genesis Coupe | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2010 | Hyundai | Genesis Coupe | — | — | — | N/A | w/o Auto Headlight Control |
| 2010 | Hyundai | Tucson | — | — | — | N/A | w/o Auto Headlight Control |
| 2010 | Hyundai | Tucson | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2010 | Kia | Forte | — | — | — | N/A | Fitment note: Not for use with Auto Headlights, but compatible with vehicles equipped with Fog Lights. |
| 2010 | Kia | Forte | — | — | — | N/A | Incl. Headlight Switch |
| 2010 | Kia | Forte Koup | — | 2.0L | L4 | N/A | — |
| 2010 | Kia | Soul | — | — | — | N/A | — |
| 2010 | Kia | Soul | — | — | — | N/A | Compatible with vehicles equipped with fog lights. |
| 2010 | Mercedes-Benz | R350 | — | — | — | N/A | — |
| 2009 | Mercedes-Benz | GL320 | — | — | — | N/A | — |
| 2009 | Mercedes-Benz | GL450 | — | — | — | N/A | — |
| 2009 | Mercedes-Benz | GL550 | — | 5.5L | V8 | N/A | — |
| 2009 | Mercedes-Benz | R320 | — | 3.0L | V6 | N/A | — |
| 2009 | Mercedes-Benz | R350 | — | 3.5L | V6 | N/A | — |
| 2008 | Mercedes-Benz | GL320 | — | — | — | N/A | — |
| 2008 | Mercedes-Benz | GL450 | — | — | — | N/A | — |
| 2008 | Mercedes-Benz | GL550 | — | 5.5L | V8 | N/A | — |
| 2008 | Mercedes-Benz | R320 | — | 3.0L | V6 | N/A | — |
| 2008 | Mercedes-Benz | R350 | — | 3.5L | V6 | N/A | — |
| 2007 | Mercedes-Benz | GL320 | — | — | — | N/A | — |
| 2007 | Mercedes-Benz | GL450 | — | — | — | N/A | — |
| 2007 | Mercedes-Benz | R320 | — | 3.0L | V6 | N/A | — |
| 2007 | Mercedes-Benz | R350 | — | — | — | N/A | — |
| 2007 | Mercedes-Benz | R350 | 4Matic | 3.5L | V6 | N/A | — |
| 2007 | Mercedes-Benz | R500 | — | 5.0L | V8 | N/A | — |
| 2007 | Mercedes-Benz | R63 AMG | — | — | — | N/A | — |
