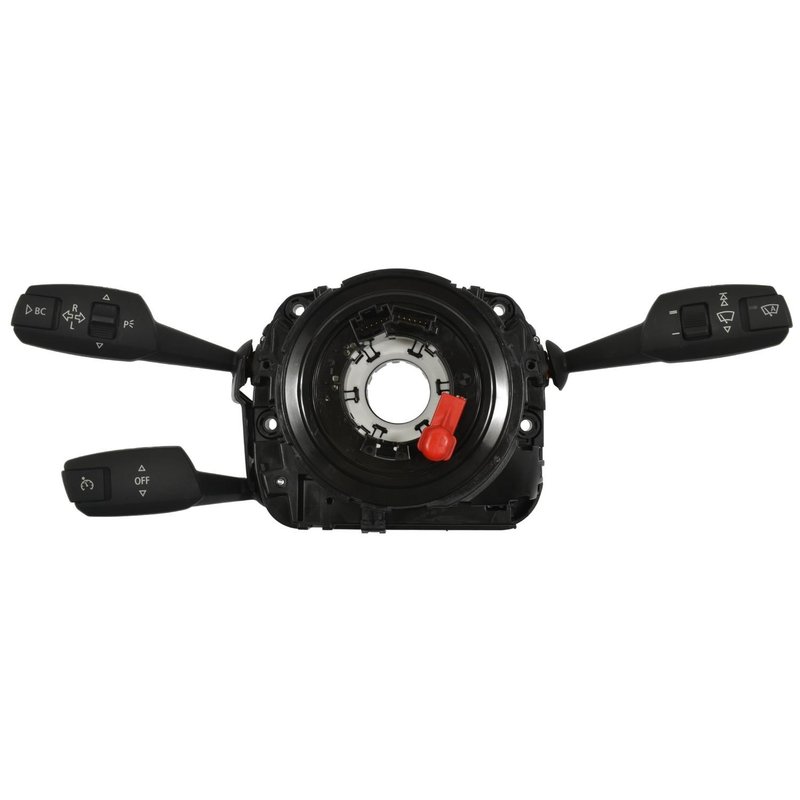

Standard Ignition CBS-2111 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-2111 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Male |
| Connector Shape | Rectangular |
| Contents | Switch |
| Cruise Control Cancel Included | Yes |
| Cruise Control On/Off Operator Inc | Yes |
| Cruise Control Resume Included | Yes |
| Cruise Control Set Included | Yes |
| Cruise Control Speed Adjustment In | Yes |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | No |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Number Of Wiper Speed Settings | 2 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Bullet |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | BMW · 39 vehicles |
Bolt-on installation. Combination switch with a rectangular male connector.
New switch. Built with 12 bullet terminals for a clean electrical connection.
Multi-function control. Includes turn signal, cruise control, and wiper functions.
Cross-references Standard Ignition CBS-2111, 61319169072 and DL7511 for the same application. See all 4.
Headlight Dimmer Switch for BMW X6 and Z4
Standard Ignition CBS-2111 is a new combination switch for BMW steering-column control functions, including headlight dimmer operation, turn signals, windshield washer spray, and windshield wiper speed control. It also includes cruise control inputs and indicator markings for a direct replacement on supported BMW X6 and BMW Z4 applications.
Key Features
- Standard Ignition CBS-2111 headlight dimmer switch
- Bolt-on attachment method with male rectangular connectors
- 2 connectors, 12 terminals, bullet terminal type
- Combination switch with turn signal and directional indicator control
- Momentary high beam flasher and latching high beam operator included
- Cruise control cancel, on/off, resume, set, and speed adjustment included
- Windshield washer spray and windshield wiper speed control included
- 12-volt electrical design
Detailed Description
This Standard Ignition CBS-2111 combination switch restores multiple steering-column functions in one OE-style replacement unit. It is built for BMW X6 and BMW Z4 vehicles listed below, including 2008-2019 BMW X6 with cruise control and without a heated steering wheel, plus 2009 BMW Z4 without a heated steering wheel and with cruise control. This part cross-references Monroe Shocks & Struts (e.g., 61319169072, DL7511) for the same application.
Compatible With: Fits 2008-2019 BMW X6, N/A, w/o Heated Steering Wheel; w/ Cruise Control. Fits 2009 BMW Z4, N/A, w/o Heated Steering Wheel; w/ Cruise Control. Fits 2010 BMW X6, N/A, w/o Heated Steering Wheel. Fits 2012-2014 BMW X6, N/A, w/o Heated Steering Wheel. Fits 2016-2017 BMW X6, N/A, w/o Heated Steering Wheel. Fits 2019 BMW X6, N/A, w/o Heated Steering Wheel.
What It Helps Fix
- Inoperative or intermittent high beam dimmer function
- Turn signal control problems at the steering column
- Windshield washer spray switch failure
- Wiper speed selection issues
- Cruise control switch input faults
Installation Notes and Tips
Verify connector shape, terminal count, and steering-wheel equipment before installation. This CBS-2111 uses a bolt-on mounting style with male connectors, so the replacement should match the vehicle’s original switch layout and options. Confirm the vehicle is equipped without a heated steering wheel where noted in the fitment data.
Quality Assurance
Standard Ignition supplies this new replacement switch for direct-fit service on the listed BMW applications. The part is built to match the required electrical and control functions for supported BMW X6 and BMW Z4 models.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2019 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel |
| 2019 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2018 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2017 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel |
| 2017 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2016 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel |
| 2016 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2016 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2015 | BMW | X6 | xDrive35i | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2015 | BMW | X6 | xDrive50i | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2015 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2014 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel |
| 2014 | BMW | X6 | xDrive50i | 4.4L | V8 | — | N/A | w/o Heated Steering Wheel |
| 2014 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2014 | BMW | X6 | xDrive50i | 4.4L | V8 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2014 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2013 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel |
| 2013 | BMW | X6 | xDrive50i | 4.4L | V8 | — | N/A | w/o Heated Steering Wheel |
| 2013 | BMW | X6 | xDrive35i | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2013 | BMW | X6 | xDrive50i | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2013 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2012 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel |
| 2012 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2012 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2011 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2010 | BMW | X6 | xDrive35i | 3.0L | L6 | GAS | N/A | w/o Heated Steering Wheel |
| 2010 | BMW | X6 | xDrive50i | 4.4L | V8 | GAS | N/A | w/o Heated Steering Wheel |
| 2010 | BMW | X6 | xDrive50i | 4.4L | V8 | — | N/A | w/o Heated Steering Wheel |
| 2010 | BMW | X6 | — | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel |
| 2010 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2009 | BMW | X6 | xDrive35i | 3.0L | L6 | GAS | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2009 | BMW | X6 | xDrive50i | 4.4L | V8 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2009 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2009 | BMW | Z4 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2009 | BMW | Z4 | sDrive30i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2009 | BMW | Z4 | sDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2008 | BMW | X6 | — | — | — | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2008 | BMW | X6 | xDrive35i | 3.0L | L6 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
| 2008 | BMW | X6 | xDrive50i | 4.4L | V8 | — | N/A | w/o Heated Steering Wheel; w/ Cruise Control |
