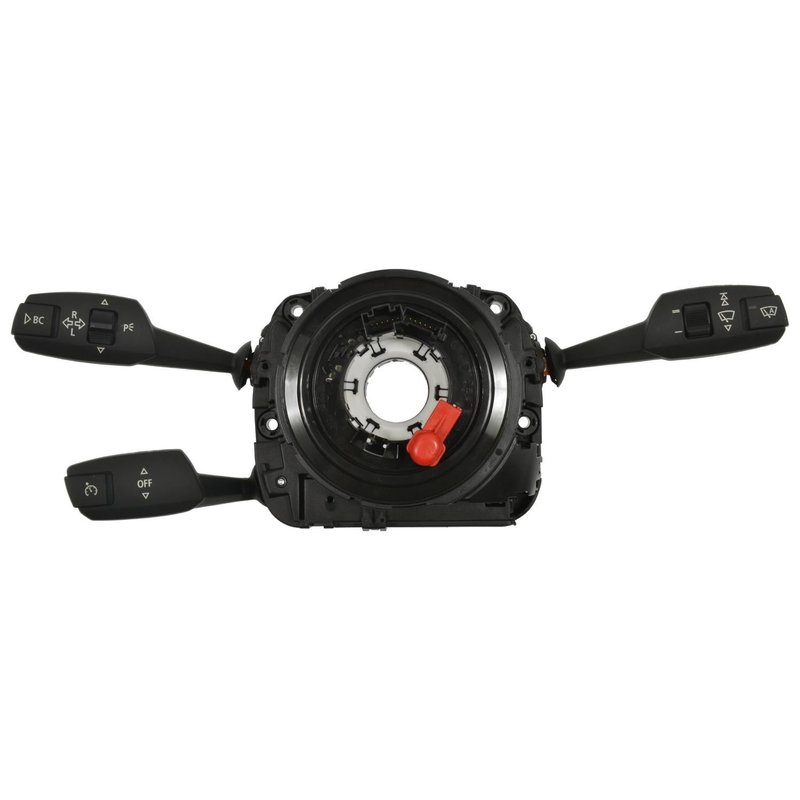

Standard Ignition CBS-2112 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS-2112

The Standard Ignition CBS-2112 headlight dimmer switch is designed specifically for BMW X5 models, providing reliable control over your vehicle's lighting and cruise control functions. This new combination switch integrates multiple features into a single bolt-on unit with a rectangular female connector for straightforward installation.

• Bolt-on attachment method for secure fitment
• Female rectangular connector with 2 cavities
• Includes cruise control functions: On/Off, Set, Resume, Cancel, and Speed Adjustment
• Turn signal and directional indicator control included
• Momentary high beam flasher and latching high beam operator
• Rear window washer spray function integrated
• Indicator markings displayed for ease of use
• Operates on 12-volt electrical system

Detailed Product Description

The Standard Ignition CBS-2112 headlight dimmer switch is a comprehensive combination switch engineered for BMW X5 vehicles. It features a bolt-on design with a female rectangular connector housing two cavities, ensuring compatibility with the factory wiring harness. This switch consolidates multiple functions including turn signal control, high beam operation with both momentary flasher and latching modes, and cruise control commands such as On/Off, Set, Resume, Cancel, and speed adjustment. Additionally, it supports rear window washer spray activation, enhancing driver convenience. The switch terminals are blade type with male gender, totaling 30 terminals, designed to meet OEM specifications and maintain electrical integrity within the vehicle's 12-volt system.

Common Applications and Problem Resolution

• Replacement for faulty or unresponsive headlight dimmer switches on BMW X5
• Restores cruise control functionality including speed adjustment and resume features
• Fixes issues with turn signal or directional indicator operation
• Resolves problems with high beam flasher or latching high beam control
• Restores rear window washer spray operation

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector orientation and secure bolt-on attachment for proper fit
• Check that all 2 connector cavities are fully engaged to avoid intermittent electrical issues
• Test all integrated functions including cruise control and lighting after installation
• Consult BMW X5 service manual for detailed wiring diagrams and torque specifications

Quality Assurance and Warranty

The Standard Ignition CBS-2112 headlight dimmer switch is a new, OEM-quality replacement part designed to meet or exceed original equipment standards. Manufactured to strict quality controls, this switch ensures reliable performance and durability. Standard Ignition typically offers a limited warranty covering defects in materials and workmanship; please refer to the product documentation for specific warranty terms.
