OE Quality
60-Day Returns

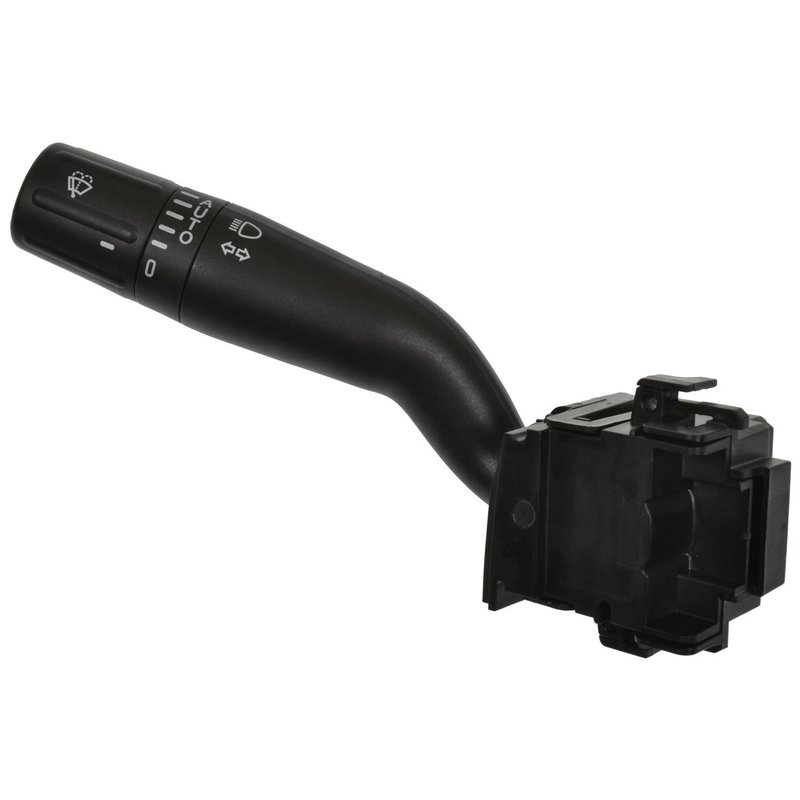

Standard Ignition CBS-2163 Turn Signal Lever
OE-Style Turn Signal Lever for Ford F-150
Restore steering column switch functions with this Standard Ignition turn signal lever, part number CBS-2163. It is a direct-fit replacement for select 2011-2012 Ford F-150 trucks equipped with Variable Intermittent Wipers and Rain Sensitive Wipers, and it also fits 2011 Ford F-150 models with Rain Sensitive Wipers.
Key Features
- Direct-fit electrically operated replacement for the steering column combination switch
- OE-spec design for proper fit, form, and function
- Copper alloy conductors for strong electrical conductivity and low resistive loss
- Black plastic finish with a rectangular female connector
- Includes turn signal control, windshield washer spray, windshield wiper delay, and windshield wiper speed functions
- Built with 12-volt electrical system compatibility
- Made new with 16 blade terminals and bolt-on attachment
Detailed Description
Standard Ignition CBS-2163 is a replacement turn signal lever and combination switch designed for steering column applications where multiple driver controls are integrated into one unit. This part supports turn signal operation, high beam flash and latch functions, windshield washer spray, and windshield wiper delay and speed settings. It is built to OE specifications to help maintain correct fit and electrical operation in the Ford F-150 steering column assembly.
Fits 2011-2012 Ford F-150, N/A, with Variable Intermittent Wipers and Rain Sensitive Wipers. Fits 2011 Ford F-150, N/A, with Rain Sensitive Wipers. This part cross-references Standard Ignition CBS-2163 with interchange numbers such as 1S11265 and 53-58988 for the same application.
Common Repair Uses
- Turn signal lever that no longer activates left or right indicators
- Intermittent wiper control that skips settings or stops responding
- Washer spray function that fails at the steering column switch
- High beam flash or latch operation that becomes inconsistent
- Combination switch wear from repeated daily use in the Ford F-150
Installation Notes and Tips
Install CBS-2163 as a bolt-on steering column switch replacement and verify the connector shape, terminal count, and vehicle equipment before installation. Confirm the truck is equipped with the listed rain-sensitive or variable intermittent wiper configuration, since fitment depends on those options. After installation, test turn signals, high beam functions, washer spray, and all wiper speeds and delay settings before returning the vehicle to service.
Quality Assurance
Standard Ignition builds this switch to OE specification using robust materials and copper alloy conductors for dependable electrical performance. The design is intended to match original equipment fit and function for service-professional repairs.
| Brand | Standard Ignition |
|---|---|
| Part Number | CBS-2163 |
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | 1 Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | No |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Number Of Wiper Delay Settings | 5 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Ford | F-150 | N/A | Compatible with vehicles equipped with Variable Intermittent Wipers and Rain Sensitive Wipers. |
| 2011 | Ford | F-150 | N/A | Compatible with vehicles equipped with Variable Intermittent Wipers and Rain Sensitive Wipers. |
| 2011 | Ford | F-150 | N/A | Compatible with vehicles equipped with Rain Sensitive Wipers. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
