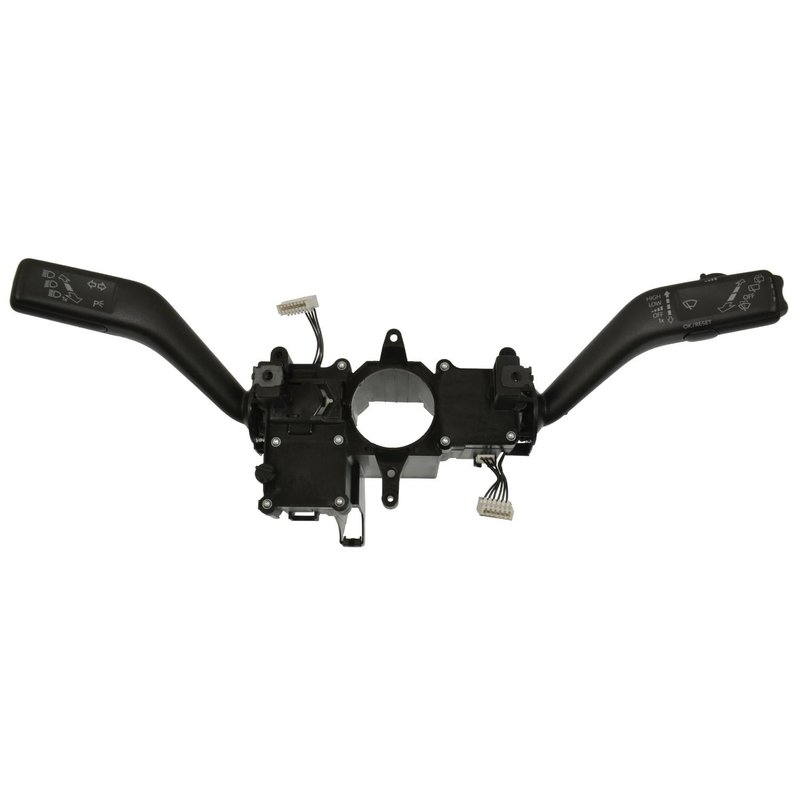

Standard Ignition CBS-2186 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-2186 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Male |
| Connector Shape | Rectangular |
| Contents | 1 Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | No |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 2 |
| Number Of Wiper Delay Settings | 4 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | Yes |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Female |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Volkswagen · 5 vehicles |
Bolt-on installation. Direct-fit switch with a rectangular connector and 10 blade terminals.
Combination switch. Combines dimmer, turn signal, and wiper controls in one unit.
New plastic finish. Black housing with indicator markings for a clean, factory-style look.
Cross-references Standard Ignition CBS-2186, 3C9953502A9B9 and DL7586 for the same application. See all 5.
Headlight Dimmer Switch for Volkswagen Passat
Standard Ignition CBS-2186 is a new combination switch for vehicles that use integrated lighting, wiper, washer, and turn signal controls at the steering column. It is built for select Volkswagen Passat and Passat CC applications with trip computer controls, making it a direct replacement for the original switch assembly.
- Part number: CBS-2186
- Brand: Standard Ignition
- Combination switch function with headlight dimmer control
- Momentary high beam flasher and latching high beam operator included
- Turn signal control and directional indicator included
- Windshield wiper delay setting and windshield wiper speed setting included
- Windshield washer spray and rear window washer spray included
- Black plastic finish with bolt-on attachment method
- Male rectangular connector with 1 connector and 10 blade terminals
- 12-volt electrical design
Fitment Details
Compatible with 2012-2014 Volkswagen Passat, N/A, w/o Sport Steering Wheel; w/o Lane Departure Warning; w/o Cruise Control; w/ Trip Computer Controls.
Compatible with 2009-2010 Volkswagen Passat CC, N/A, w/o Sport Steering Wheel; w/o Lane Departure Warning; w/o Cruise Control; w/ Trip Computer Controls.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Switch Helps Address
- Intermittent or failed headlight dimmer operation
- Inoperative high beam flash or high beam latch function
- Turn signal control issues at the steering column
- Wiper delay, wiper speed, or washer spray control faults
- Rear window washer spray control problems
Installation Notes and Tips
Verify the vehicle is equipped with trip computer controls and does not use a sport steering wheel, lane departure warning, or cruise control before ordering. This CBS-2186 uses a bolt-on mounting style, a single rectangular male connector, and blade terminals, so connector shape and terminal count should be matched to the original part before installation.
Quality Assurance
Standard Ignition replacement switches are built for direct-fit service on the listed Volkswagen applications and are supplied as new components for electrical repair work.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Volkswagen | Passat | N/A | w/o Sport Steering Wheel; w/o Lane Departure Warning; w/o Cruise Control; w/ Trip Computer Controls |
| 2013 | Volkswagen | Passat | N/A | w/o Sport Steering Wheel; w/o Lane Departure Warning; w/o Cruise Control; w/ Trip Computer Controls |
| 2012 | Volkswagen | Passat | N/A | w/o Sport Steering Wheel; w/o Lane Departure Warning; w/o Cruise Control; w/ Trip Computer Controls |
| 2010 | Volkswagen | Passat CC | N/A | w/o Sport Steering Wheel; w/o Lane Departure Warning; w/o Cruise Control; w/ Trip Computer Controls |
| 2009 | Volkswagen | Passat CC | N/A | w/o Sport Steering Wheel; w/o Lane Departure Warning; w/o Cruise Control; w/ Trip Computer Controls |
