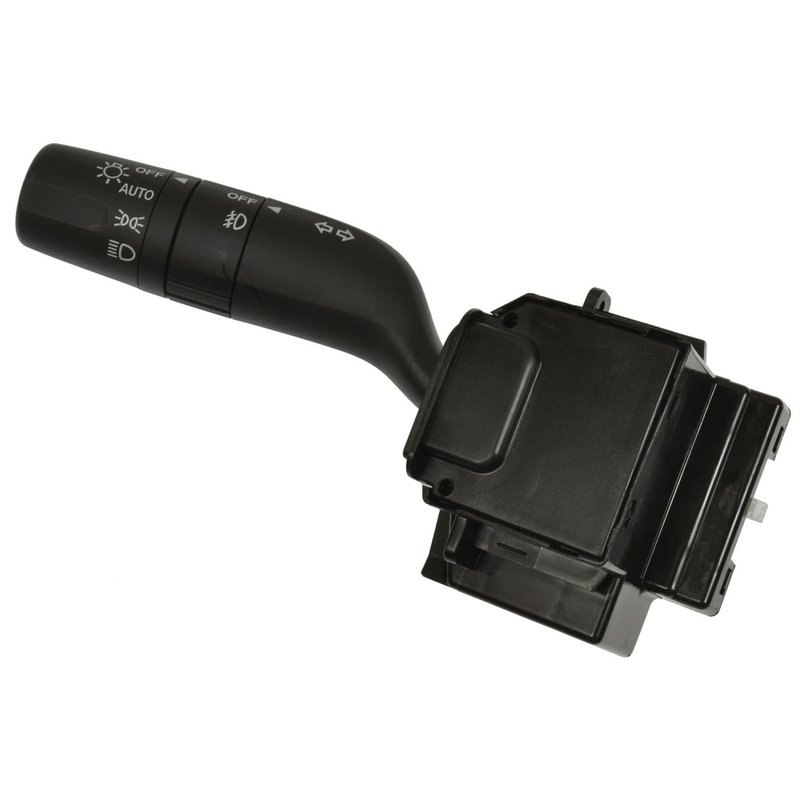

Standard Ignition CBS-2188 Headlight Dimmer Switch

Headlight Dimmer Switch for Mazda 3 and Mazda 5

Standard Ignition CBS-2188 is a new headlight dimmer switch built as a combination switch for vehicles with automatic headlights and fog lights. It provides direct control of the main lights, running lights, turn signals, high-beam flash, and fog light operation in one dash-mounted unit.

Compatible With 2011-2013 Mazda 3 and 2014-2015 Mazda 5, this CBS-2188 replacement is a practical choice when the original switch has worn contacts, intermittent lighting control, or failed beam selection. The black plastic housing uses a rectangular female connector and 11 blade terminals for a bolt-on installation.

Key Features

• Standard Ignition CBS-2188 headlight dimmer switch
• Combination switch with headlight, turn signal, and fog light functions
• Includes main light operator, running light operator, turn signal control, and fog light operator
• Includes latching high beam and momentary high beam flasher functions
• Black plastic finish with bolt-on attachment method
• 12-volt electrical design with one rectangular female connector
• New replacement part with blade terminals

Detailed Description

This headlight dimmer switch is engineered for Mazda applications that require automatic headlights and fog light control. It is a direct replacement for the factory combination switch used on 2011-2013 Mazda 3 and 2014-2015 Mazda 5 models, and it supports the lighting and signal functions commonly controlled from the steering column. Standard Ignition CBS-2188 also cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.

The switch includes indicator markings and displayed markings for straightforward driver operation. It is configured with a female connector, one connector cavity, and 11 male blade terminals to match the original electrical layout. Part number CBS-2188 is intended for vehicles equipped with automatic headlights and fog lights, making it a focused replacement for specific Mazda 3 and Mazda 5 configurations.

What It Helps Fix

• Intermittent or failed headlight dimmer operation
• Inoperative high-beam flash or high-beam latch function
• Faulty turn signal or directional indicator control
• Loss of fog light switch operation
• Worn or damaged combination switch contacts

Installation Notes and Tips

Verify vehicle equipment before ordering: this part is listed for Mazda 3 and Mazda 5 models with automatic headlights, and the fitment notes also specify fog light-equipped vehicles where applicable. Confirm connector shape, terminal count, and switch layout against the original unit before installation. Because this is a bolt-on electrical switch, careful alignment and secure connector engagement are important for proper operation.

Quality Assurance

Standard Ignition supplies this as a new replacement electrical switch built for the listed Mazda applications. Part number CBS-2188 is designed to match the original function and connector configuration for the specified vehicles.
