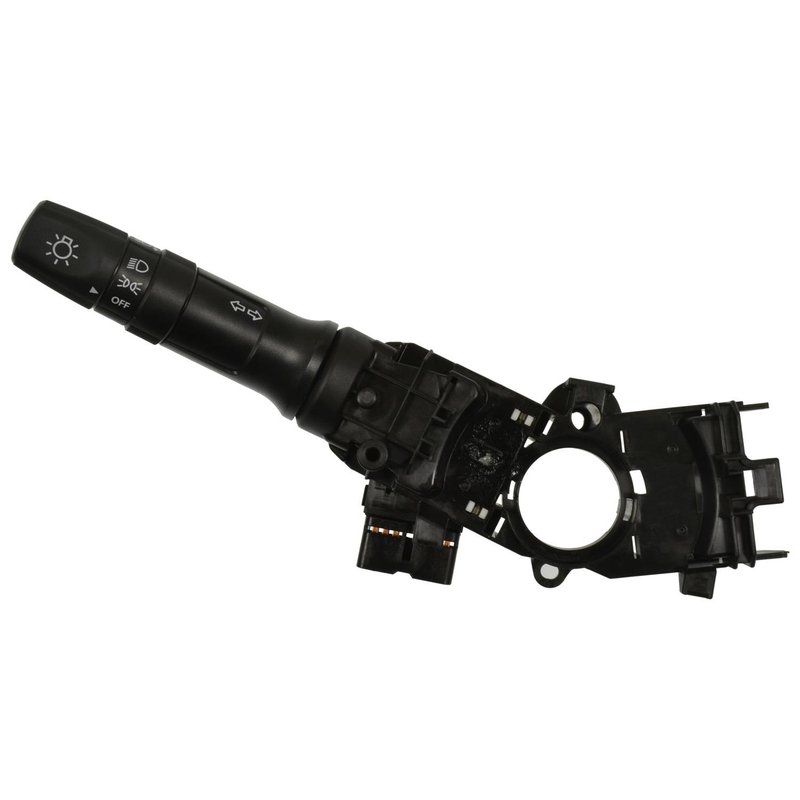

Standard Ignition CBS-2190 Headlight Dimmer Switch

Headlight Dimmer Switch for Hyundai Accent

Standard Ignition CBS-2190 is a new combination switch for the lighting and turn signal controls on select Hyundai Accent models. It is built with a black plastic finish, a rectangular female connector, and a bolt-on attachment method for a direct replacement style installation.

Compatible with 2011-2013 Hyundai Accent applications, this headlight dimmer switch includes main light control, fog light operator, turn signal control, latching high beam operation, momentary high beam flasher, and indicator markings. Standard Ignition CBS-2190 is a practical replacement for worn or malfunctioning steering column switch functions on the Hyundai Accent.

Key Features

• Part number CBS-2190
• Headlight dimmer switch with combination switch functions
• Includes lighting controls, main light operator, and turn signal control
• Includes fog light operator, latching high beam operator, and momentary high beam flasher
• Black plastic finish with one rectangular female connector
• 12-volt electrical design with blade terminals
• New replacement part from Standard Ignition

Detailed Description

Standard Ignition CBS-2190 is engineered as a steering column combination switch for vehicles that need coordinated control of exterior lighting and directional signaling. It supports headlight dimmer operation along with turn signal and fog light functions, helping restore normal driver control when the original switch becomes intermittent, sticky, or unresponsive. For 2011-2013 Hyundai Accent models, CBS-2190 provides a direct-fit replacement solution that matches the listed connector and terminal configuration.

This part cross-references 1S11341 and SW8541 for the same application.

What It Helps Fix

• Headlights that will not switch between low and high beam
• Turn signals that stop responding from the column switch
• Fog light control issues on equipped vehicles
• Intermittent lighting operation caused by worn internal contacts
• Stiff, loose, or unreliable combination switch movement

Installation Notes and Tips

Fits 2011-2013 Hyundai Accent, N/A. Not compatible with vehicles equipped with fog lights. Verify the connector shape, terminal count, and switch layout against the original part before installation. This bolt-on switch uses a single rectangular female connector and 12 blade terminals, so matching the OE electrical configuration is important for proper operation.

Quality Assurance

Standard Ignition supplies CBS-2190 as a new replacement electrical switch built to match the listed application details and connector specifications.
