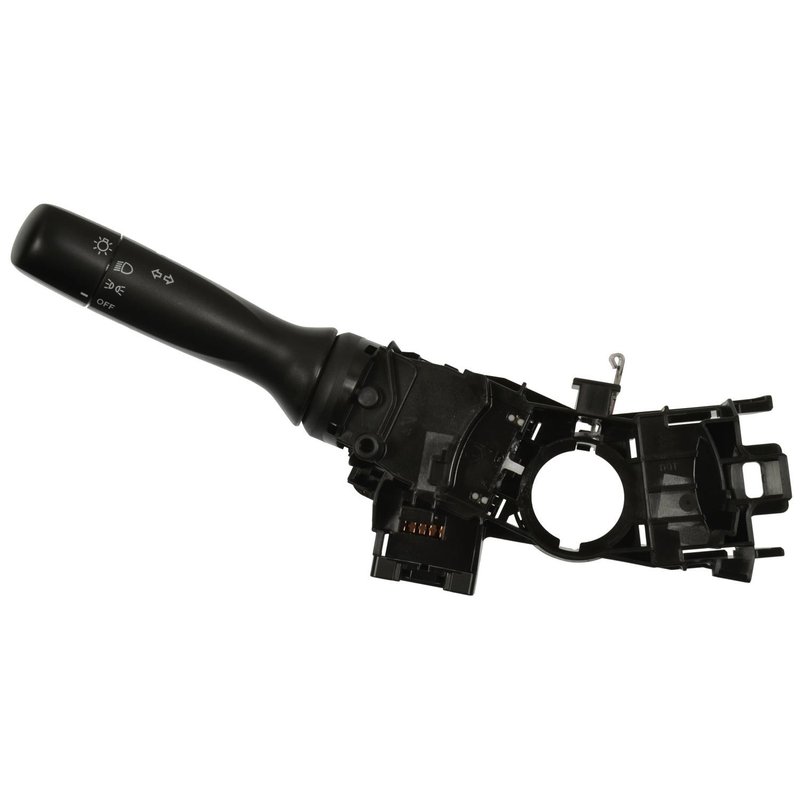

Standard Ignition CBS-2208 Headlight Dimmer Switch
| Brand | Standard Ignition CBS-2208 |
|---|---|
| Attachment Method | Bolt On |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | 1 Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Scion · 4 vehicles |
Bolt-on installation. Direct-fit switch with a single rectangular connector.
Combination switch. Controls headlights, turn signals, and high-beam functions in one unit.
New construction. Black plastic finish with clear indicator markings.
Cross-references Standard Ignition CBS-2208, 8414052210 and DL7609 for the same application. See all 5.
Headlight Dimmer Switch for Scion xD
Restore reliable headlight and turn signal control with this Standard Ignition headlight dimmer switch, part number CBS-2208. It is a direct-fit electrical switch assembly for select 2011-2014 Scion xD models without fog lights and without automatic headlights.
Key Features
- Standard Ignition CBS-2208 headlight dimmer switch
- Combination switch function with main light operator, latching high beam operator, momentary high beam flasher, and turn signal control
- Bolt-on attachment method with black plastic finish
- Female rectangular connector with 1 connector cavity and 9 blade terminals
- 12-volt new replacement part
- Indicator markings included for clear driver input
Detailed Description
The Standard Ignition CBS-2208 is a combination switch built for headlight dimmer and turn signal operation. It is configured with a single female rectangular connector, male blade terminals, and a bolt-on mounting style for a secure electrical and mechanical connection. This switch includes main light control, high beam latch, high beam flash, and turn signal/directional indicator functions, making it a practical replacement for worn or intermittent steering-column lighting controls. Fits 2011-2014 Scion xD, N/A, without fog lights and without automatic headlights. This part cross-references OE-style numbers such as 8414052210 and DL7609 for the same application.
Common Problems This Part Can Help Solve
- Headlights that do not switch between low beam and high beam correctly
- Turn signal lever operation that feels inconsistent or unresponsive
- Intermittent flashing or dimmer control at the steering column
- Worn indicator markings or poor switch feel during daily driving
- Electrical control issues caused by a failing combination switch
Installation Notes and Tips
Verify vehicle equipment before ordering: this CBS-2208 application is for 2011-2014 Scion xD models without fog lights and without automatic headlights. Confirm connector shape, terminal count, and switch layout against the original unit before installation. Because this is a steering-column electrical component, disconnect the battery and follow the vehicle service procedure before removal and replacement.
Quality Assurance
Standard Ignition supplies replacement electrical components for service applications, and this switch is new, not remanufactured. The CBS-2208 is built to match the listed connector, terminal, and function requirements for the specified Scion xD fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Scion | xD | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2013 | Scion | xD | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2012 | Scion | xD | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2011 | Scion | xD | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
