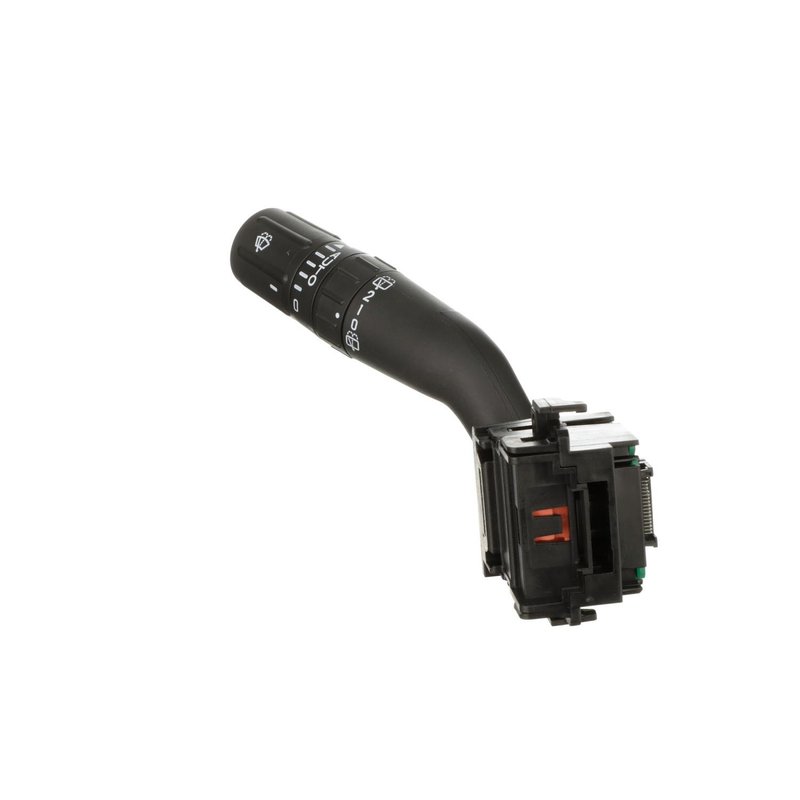

Standard Ignition CBS2294 Headlight Dimmer Switch
| Brand | Standard Ignition CBS2294 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | 1 Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | No |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Number Of Wiper Delay Settings | 5 |
| Number Of Wiper Speed Settings | 3 |
| Rear Window Washer Spray Included | Yes |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | Yes |
| Running Light Operator Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Voltage | 12 |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Ford · 6 vehicles |
OE direct replacement. Restores combination switch functions with a bolt-on fit.
Copper alloy conductors. Deliver strong conductivity with low resistive losses.
Combination switch. Integrates lighting, wiper, and turn signal controls.
Cross-references 1S13821, DL7695 and EA8Z13K359BA for the same application. See all 6.
OE-Style Headlight Dimmer Switch
The Standard Ignition CBS2294 is a direct-fit OE-replacement headlight dimmer switch for restoring combination switch functions on select Ford and Lincoln vehicles. It is built with copper alloy conductors for strong electrical conductivity and low resistive loss, with a durable design suited to service replacement work.
Compatible With 2013-2015 Lincoln MKT and 2013, 2014, 2015 Ford Flex applications, including 2014 Ford Flex with automatic wipers. The CBS2294 is a practical replacement when the original combination switch no longer operates lighting, wiper, or turn signal functions correctly.
- Direct-fit OE replacement for combination switch function restoration
- Copper alloy conductors for efficient electrical transfer
- 12-volt electrical system application
- Rectangular female connector with 16 blade terminals
- Bolt-on attachment method for factory-style mounting
- Includes headlight dimmer, turn signal, high beam flash, and wiper/washer functions
- Displayed indicator markings for driver interface visibility
Function and Vehicle Coverage
This Standard Ignition CBS2294 combination switch is built to restore multiple steering-column controls in one OE-style unit. It includes latching high beam operation, momentary high beam flash, turn signal control, windshield washer spray, windshield wiper delay and speed settings, rear window washer spray, and rear window wiper speed setting. It also provides five windshield wiper delay settings and three windshield wiper speed settings for vehicles equipped with those features.
Fits 2015 Ford Flex, N/A. Fits 2013 Ford Flex, N/A. Fits 2014 Ford Flex, N/A, w/ Automatic Wipers. Fits 2013-2015 Lincoln MKT, N/A.
- Headlight dimmer or high beam switch failure
- Turn signal control loss or intermittent operation
- Windshield wiper delay or speed control problems
- Washer spray function issues at the steering column switch
- Combination switch wear affecting multiple driver controls
Installation Notes and Quality
Install as a bolt-on replacement using the existing rectangular female connector and 16 blade terminals. Verify vehicle equipment, including automatic wipers where noted, before installation. This part cross-references Standard Ignition CBS2294 for the same application.
Standard Ignition manufactures this switch with in-process quality control and service-grade materials to support consistent fit and electrical performance in repair applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Ford | Flex | N/A | — |
| 2015 | Lincoln | MKT | N/A | — |
| 2014 | Ford | Flex | N/A | w/ Automatic Wipers |
| 2014 | Lincoln | MKT | N/A | — |
| 2013 | Ford | Flex | N/A | — |
| 2013 | Lincoln | MKT | N/A | — |
| No rows match your filter. | ||||
