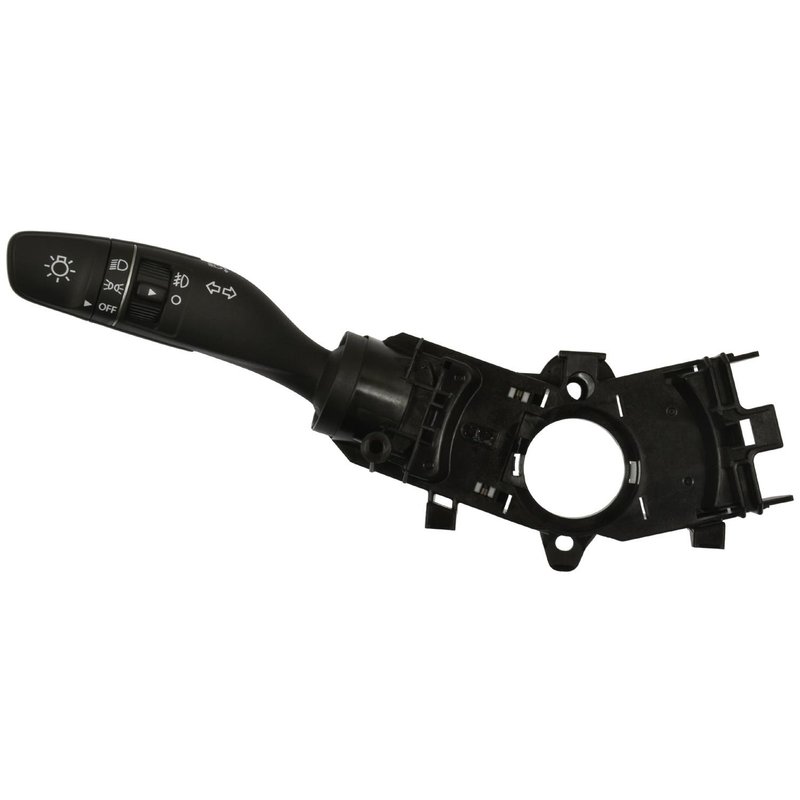

Standard Ignition CBS2312 Headlight Dimmer Switch

Headlight Dimmer Switch for Hyundai Santa Fe

Restore reliable lighting control with this Standard Ignition headlight dimmer switch, part number CBS2312. It is a new combination switch built for 12-volt systems and includes the main light operator, fog light operator, turn signal control, and both latching and momentary high beam functions.

Compatible With Hyundai Santa Fe, Hyundai Santa Fe Sport, and Hyundai Santa Fe XL applications that use a rectangular female connector and blade terminals, this switch is a direct-fit electrical replacement for vehicles without auto headlights in the listed configurations.

Key Features

• Standard Ignition CBS2312 headlight dimmer switch
• Combination switch with headlight, fog light, and turn signal functions
• 12-volt electrical design
• Bolt-on attachment method
• 1 rectangular female connector with 15 blade terminals
• Includes indicator markings
• New replacement part
• Cross-references Hyundai OE-style part numbers 934104Z010 and DL7713 for the same application

Detailed Description

The CBS2312 is a steering-column combination switch designed to manage exterior lighting and directional signaling from one control point. It includes the main light operator, fog light operator, turn signal control, turn signal/directional indicator, and both latching high beam and momentary high beam flasher functions. This makes it a practical replacement when the original switch has worn contacts, intermittent beam selection, or failed lighting controls.

Fits 2013-2018 Hyundai Santa Fe, N/A; 2017-2018 Hyundai Santa Fe, N/A; 2018 Hyundai Santa Fe, N/A; 2013-2016 Hyundai Santa Fe, N/A; 2013-2018 Hyundai Santa Fe Sport, N/A; 2017-2018 Hyundai Santa Fe Sport, N/A; 2018 Hyundai Santa Fe Sport, N/A; 2013-2016 Hyundai Santa Fe Sport, N/A; 2013-2016 Hyundai Santa Fe XL, N/A. Notes vary by application and include no auto headlights, and on select vehicles no daytime running lights with fog lights equipped.

Common Issues This Switch Can Address

• Headlights that do not switch properly between low and high beam
• Fog light control that no longer responds at the stalk
• Turn signal operation that is intermittent or inoperative
• Worn or damaged combination switch contacts
• Lighting control problems caused by a failed steering-column switch

Installation Notes and Tips

Verify connector shape, terminal count, and vehicle equipment before installation. This part uses a bolt-on attachment method and a single rectangular female connector with blade terminals. Confirm that the vehicle is not equipped with auto headlights where the fitment notes exclude that feature, and check daytime running light and fog light configuration where listed.

For best results, compare the original switch layout and indicator markings to the replacement part before installation. The CBS2312 is intended for the listed Hyundai Santa Fe, Santa Fe Sport, and Santa Fe XL applications only.

Quality Assurance

Standard Ignition supplies this CBS2312 switch as a new electrical replacement part for the specified applications. It is built to match the listed connector, terminal, and function requirements for direct-fit service on the covered Hyundai models.
