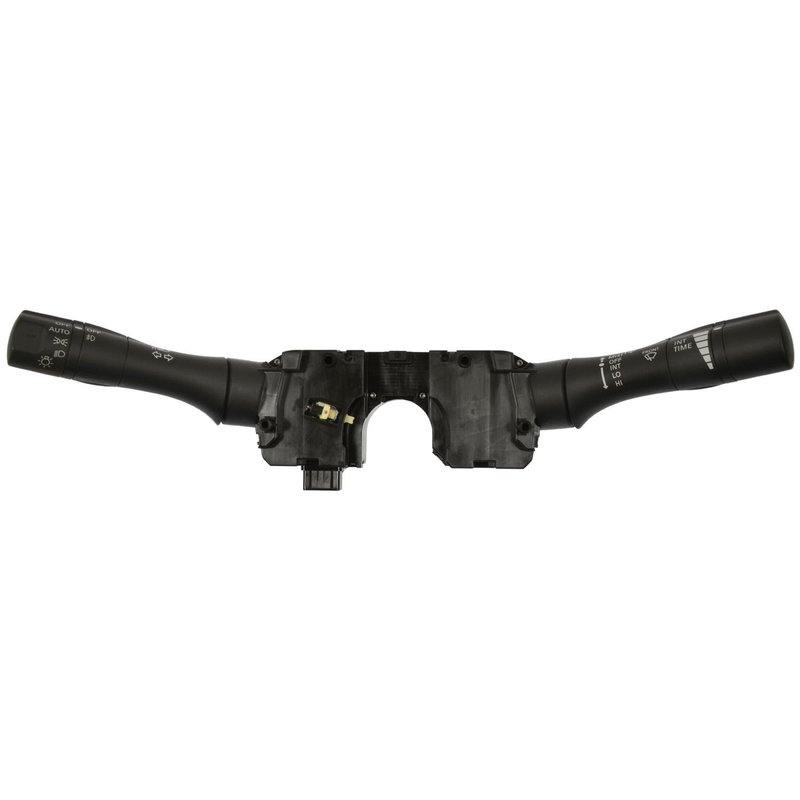

Standard Ignition CBS2319 Headlight Dimmer Switch

Headlight Dimmer Switch for Nissan Sentra

Standard Ignition CBS2319 is a combination headlight dimmer switch built for select Nissan Sentra models with the correct factory equipment. It supports lighting control functions, turn signal operation, and wiper delay settings in one dash-mounted assembly.

Key Features

• Fits 2018-2019 Nissan Sentra, N/A
• Fits 2013-2017 Nissan Sentra, N/A, w/ Fog Lights; w/ Auto Headlights; Dual Lever Multifunction Switch Assembly
• Fits 2013-2017 Nissan Sentra, N/A, w/ Auto Headlights; Dual Lever Multifunction Switch Assembly
• Combination switch with headlight dimmer, turn signal, fog light, and lighting controls
• Includes main light operator, latching high beam operator, momentary high beam flasher, and running light operator
• Includes indicator markings and displayed function layout
• Black plastic finish with bolt-on attachment and plug-in rectangular female connector
• 12-volt electrical design with 14 male pin terminals
• Six wiper delay settings and three wiper speed settings

Detailed Description

Standard Ignition CBS2319 is a new headlight dimmer switch designed for Nissan Sentra applications that use a dual lever multifunction switch assembly. It combines lighting and signal controls into a single dash switch, including turn signal control, fog light operation, main lighting control, high beam flash, and running light functions. The black plastic housing uses a bolt-on attachment method and a single rectangular plug-in connector for direct replacement service. This part number, CBS2319, is also referenced for select OE-style replacement needs on 2013-2019 Nissan Sentra models.

This part cross-references 255603SH1B and DL7720 for the same application.

What It Helps Fix

• Inoperative or intermittent headlight dimmer operation
• Faulty turn signal or directional indicator control
• Nonfunctioning fog light switch operation
• High beam flash or latch function issues
• Wiper delay or speed control problems at the multifunction switch

Installation Notes and Tips

Verify the vehicle uses the listed Sentra configuration before ordering CBS2319. This switch is a plug-in, bolt-on replacement with a female connector and pin terminals, so connector style and terminal count should match the original unit. Confirm whether the vehicle is equipped with fog lights and auto headlights on 2013-2017 Nissan Sentra models, since those notes affect application coverage.

Quality Assurance

Standard Ignition supplies this CBS2319 switch as a new replacement electrical component for the specified Nissan Sentra applications. Confirm fitment by year, model, and equipment package before installation.
