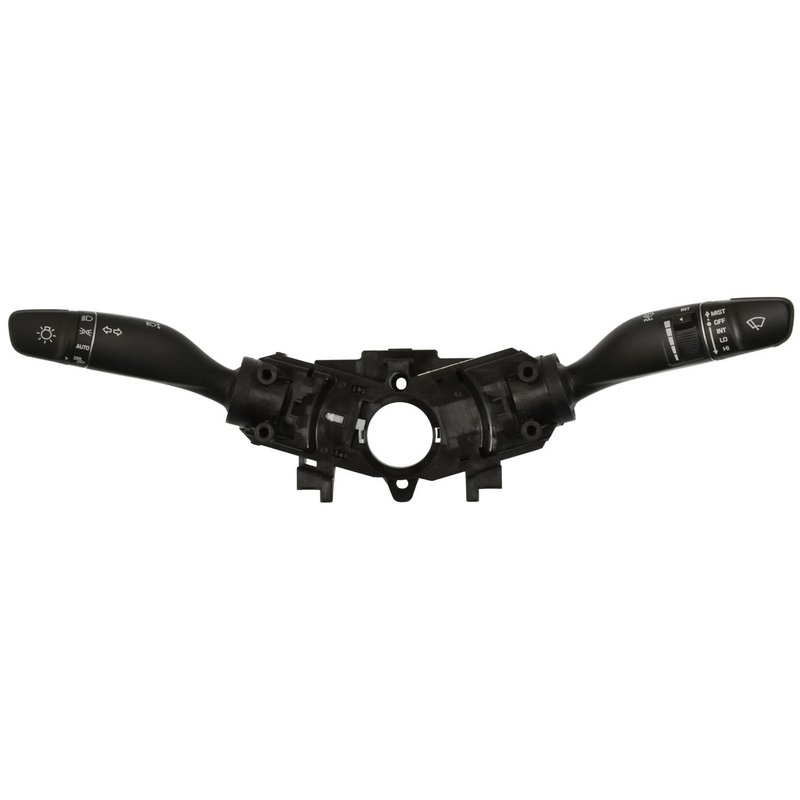

Standard Ignition CBS2326 Headlight Dimmer Switch

Overview of Standard Ignition Headlight Dimmer Switch CBS2326

The Standard Ignition Headlight Dimmer Switch CBS2326 is designed specifically for Hyundai Sonata models, providing reliable control over your vehicle's lighting functions. This new combination switch integrates multiple lighting and signaling operations into a single, bolt-on unit for straightforward replacement.

• Compatible with Hyundai Sonata vehicles
• Bolt-on attachment method for secure installation
• Female rectangular connector with one cavity
• Includes main light, running light, turn signal, and high beam operators
• Features indicator markings and latching high beam control
• Supports momentary high beam flasher and multiple wiper speed settings
• Equipped with 16 male blade terminals for reliable electrical connections

Detailed Product Description

The Standard Ignition CBS2326 headlight dimmer switch is a combination switch that consolidates essential lighting and signaling functions for Hyundai Sonata vehicles. It features a bolt-on attachment method ensuring a secure fit and easy replacement. The switch includes a female rectangular connector with a single cavity, designed to interface with the vehicle's wiring harness efficiently. This unit supports multiple functions such as main light operation, running lights, turn signals, and a latching high beam operator. Additionally, it offers a momentary high beam flasher and indicator markings for clear user feedback. The switch also integrates wiper controls with three speed settings and five delay settings, although it does not include rear window wiper or washer controls. With 16 male blade terminals, the CBS2326 ensures solid electrical connections and durability.

Common Applications and Issues Addressed

• Replacement for malfunctioning or unresponsive headlight dimmer switches on Hyundai Sonata
• Restores proper operation of turn signals and high beam functions
• Resolves issues with inconsistent or non-functioning running lights
• Addresses problems with wiper speed and delay controls integrated into the switch
• Eliminates electrical connection faults caused by worn or damaged terminals

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Disconnect the battery to prevent electrical shorts during replacement
• Use appropriate tools to remove the bolt-on switch securely
• Verify connector orientation and secure the female rectangular connector firmly
• Test all lighting and signaling functions after installation to confirm proper operation

Quality Assurance and Warranty

The Standard Ignition CBS2326 headlight dimmer switch is a new, OEM-quality replacement part designed to meet or exceed original equipment specifications. Manufactured with durable materials and precise engineering, this switch provides reliable performance for Hyundai Sonata vehicles. Standard Ignition products typically come with a limited warranty covering defects in materials and workmanship; please refer to the product documentation for specific warranty details.
