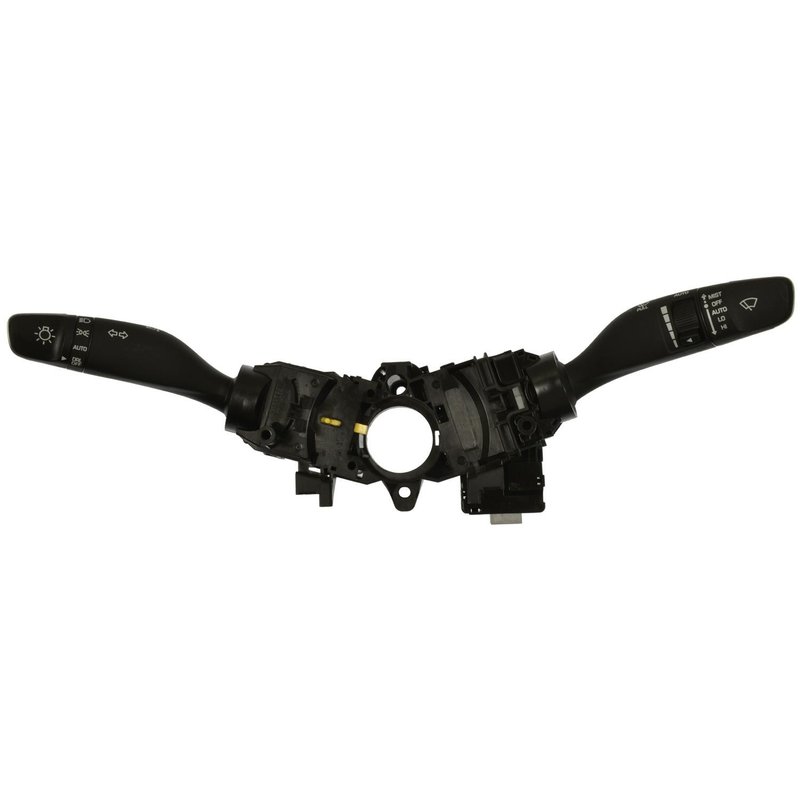

Standard Ignition CBS2391 Headlight Dimmer Switch
| Brand | Standard Ignition CBS2391 |
|---|---|
| Attachment Method | Direct |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | 1 Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | Yes |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Number Of Wiper Delay Settings | 5 |
| Number Of Wiper Speed Settings | 4 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Turn Signal Control Included | No |
| Turn Signal/Directional Indicator | No |
| Windshield Washer Spray Included | Yes |
| Windshield Wiper Delay Setting Inc | Yes |
| Windshield Wiper Speed Setting Inc | Yes |
| Fits | Hyundai · 2 vehicles |
Direct attachment. Installs with a direct fit and a single rectangular connector.
Combination switch. Combines headlight, wiper, and washer controls in one unit.
New plastic finish. Black plastic construction with a clean, factory-style appearance.
Cross-references Standard Ignition CBS2391, 93400B14204X and DL7792 for the same application. See all 5.
Headlight Dimmer Switch for Hyundai Genesis
The Standard Ignition CBS2391 is a direct-attachment headlight dimmer switch built for 2015-2016 Hyundai Genesis models with rain sensitive wipers and auto headlights. It combines lighting and wiper control functions in one OE-style replacement, making it a practical choice when the original switch is worn, intermittent, or no longer responding correctly.
- Direct attachment design for straightforward replacement
- Combination switch with main light operator, running light operator, and latching high beam operator
- Momentary high beam flasher included
- Windshield washer spray, windshield wiper delay, and windshield wiper speed functions included
- Black plastic finish with rectangular female connector
- New switch with indicator markings included
- Compatible with 2015-2016 Hyundai Genesis, w/ Rain Sensitive Wipers; w/ Auto Headlights
Detailed Product Overview
Standard Ignition CBS2391 is a combination headlight dimmer switch engineered for vehicles that use integrated lighting and wiper controls. It features a single rectangular female connector, 10 male pin terminals, and direct attachment mounting for a clean OE-style replacement. The switch includes headlight control, running light control, latching high beam operation, momentary high beam flash, windshield washer spray, and windshield wiper delay and speed settings. For fitment-focused searches, this part number is commonly referenced as CBS2391 for Hyundai Genesis lighting and wiper switch replacement.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Switch Can Address
- Headlights or running lights not switching properly
- High beams that do not latch or flash as expected
- Windshield wiper delay or speed settings that stop responding
- Washer spray control that becomes intermittent
- Worn or damaged combination switch contacts
Installation Notes and Tips
Verify the connector shape, terminal count, and vehicle equipment before installation. This CBS2391 is listed for 2015-2016 Hyundai Genesis models with rain sensitive wipers and auto headlights, so match the original switch functions and connector layout to the vehicle before replacement. Confirm that the steering column switch assembly and related electrical connectors are in good condition during service.
Quality Assurance
Standard Ignition CBS2391 is a new replacement switch built to match the listed application requirements for 2015-2016 Hyundai Genesis vehicles. Standard Ignition is a recognized aftermarket brand for electrical and switch components, and this part is specified with OE-style connector and function details for accurate fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Hyundai | Genesis | N/A | w/ Rain Sensitive Wipers; w/ Auto Headlights |
| 2015 | Hyundai | Genesis | N/A | w/ Rain Sensitive Wipers; w/ Auto Headlights |
