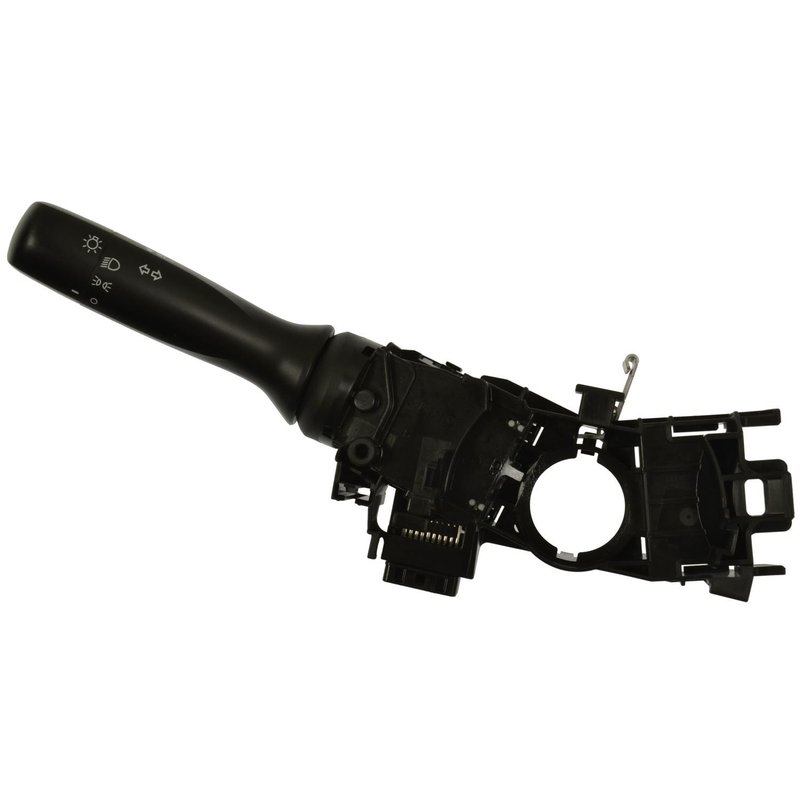

Standard Ignition CBS2436 Headlight Dimmer Switch
| Brand | Standard Ignition CBS2436 |
|---|---|
| Attachment Method | Clip |
| Color | Black |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | 1 Switch |
| Cruise Control Cancel Included | No |
| Cruise Control On/Off Operator Inc | No |
| Cruise Control Resume Included | No |
| Cruise Control Set Included | No |
| Cruise Control Speed Adjustment In | No |
| Displayed | Yes |
| Finish | Plastic |
| Fog Light Operator Included | No |
| Functions | Combination Switch |
| Indicator Markings Included | Yes |
| Latching High Beam Operator Includ | Yes |
| Main Light Operator Included | Yes |
| Momentary High Beam Flasher Includ | No |
| New or Reman | New |
| Number Of Connector Cavities | 1 |
| Rear Window Washer Spray Included | No |
| Rear Window Wiper Delay Control In | No |
| Rear Window Wiper Speed Setting In | No |
| Running Light Operator Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Pin |
| Turn Signal Control Included | Yes |
| Turn Signal/Directional Indicator | Yes |
| Windshield Washer Spray Included | No |
| Windshield Wiper Delay Setting Inc | No |
| Windshield Wiper Speed Setting Inc | No |
| Fits | Subaru · 11 vehicles |
Combination switch. Controls headlights, turn signals, and running lights in one unit.
Clip-on installation. Attaches securely with a single rectangular connector.
Indicator markings included. Clear markings help identify each function at a glance.
Cross-references Standard Ignition CBS2436, 83115FJ040 and DL7837 for the same application. See all 5.
Headlight Dimmer Switch for Subaru Applications
Standard Ignition CBS2436 is a new headlight dimmer switch built as a combination switch for vehicles that use a single rectangular female connector and pin terminals. It includes the main light operator, running light operator, turn signal control, and latching high beam operator, with indicator markings visible on the switch face.
Compatible With 2012-2015 Subaru Impreza, 2014-2016 Subaru Forester, 2015-2016 Subaru WRX, and 2015-2016 Subaru WRX STI in configurations without fog lights and without automatic headlights. Standard Ignition CBS2436 is a direct-fit electrical switch for restoring lighting and signal control on the steering column.
Key Features
- Headlight dimmer switch with combination-switch function
- Black plastic finish with displayed indicator markings
- Female rectangular connector with 10 male pin terminals
- Includes main light, running light, turn signal, and latching high beam operators
- Clip attachment method for OE-style mounting
- New replacement part for Subaru steering column switch applications
Detailed Description
This Standard Ignition CBS2436 switch is designed for Subaru vehicles that use a combination lighting and signal control on the steering column. It manages headlight dimming, main lighting, running lights, and turn signal operation through a single switch assembly, while the latching high beam function supports normal beam selection. The black plastic housing and visible indicator markings match the functional layout expected in these applications.
This part cross-references Subaru 83115FJ040 for the same application. It is also listed under interchange part number CBS2436 for Standard Ignition and related replacement references.
What It Is Used For
- Restoring headlight dimmer control when the original switch wears out
- Correcting intermittent or inoperative turn signal operation
- Replacing a switch with damaged indicator markings or worn contacts
- Addressing loss of main light or running light control from the column switch
- Replacing a faulty high beam latch function on Subaru steering column controls
Installation Notes and Tips
Verify vehicle configuration before ordering: this switch is listed for Subaru Forester, WRX, WRX STI, and Impreza applications without fog lights and without automatic headlights. Confirm the connector shape, terminal count, and switch layout against the original part before installation. Because this is a steering column electrical component, disconnect the battery and follow the vehicle service procedure before removal and replacement.
Quality Assurance
Standard Ignition supplies this as a new replacement electrical switch for direct-fit service in the listed Subaru applications. The part is built with the specified connector, terminal, and function layout to match the original equipment style used in these vehicles.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Subaru | Forester | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2016 | Subaru | WRX | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2016 | Subaru | WRX STI | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2015 | Subaru | Forester | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2015 | Subaru | Impreza | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2015 | Subaru | WRX | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2015 | Subaru | WRX STI | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2014 | Subaru | Forester | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2014 | Subaru | Impreza | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2013 | Subaru | Impreza | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
| 2012 | Subaru | Impreza | N/A | Fitment: Without Fog Lights, Without Automatic Headlights |
