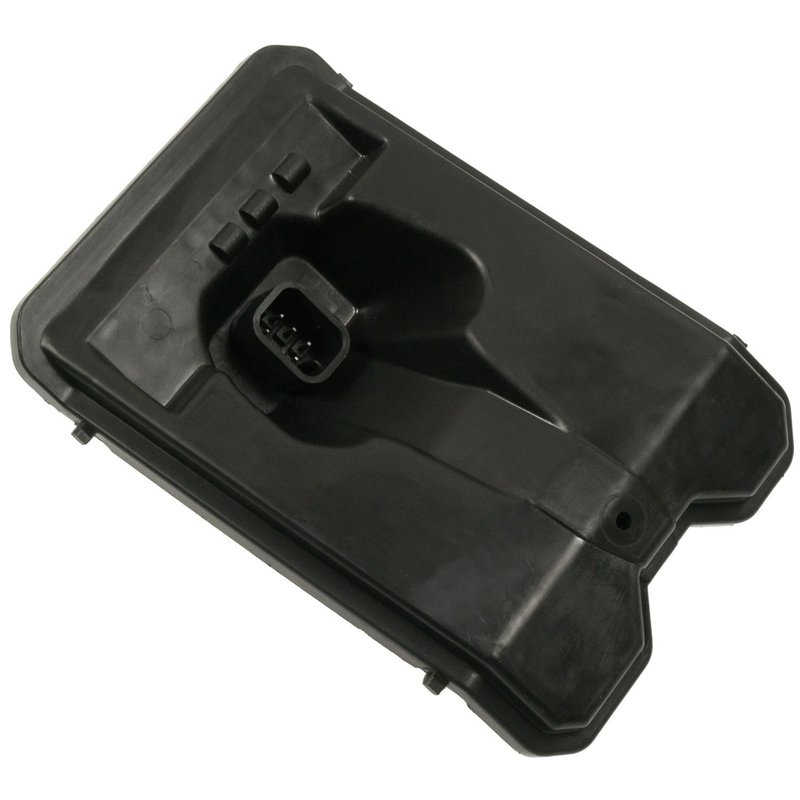

Standard Ignition CBT109 Tail Light Circuit Board - Right
| Brand | Standard Ignition CBT109 |
|---|---|
| Position | Right |
| Connector Gender | Female |
| Contents | 1 Tail Light Circuit Board |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Chevrolet · 9 vehicles |
Direct-fit replacement. Installs easily out of the box for a straightforward repair.
OE-spec tested. Built to restore tail light function with dependable performance.
Blade terminals. Female connector with two male blade terminals for a secure connection.
Cross-references 1005, 15894728 and TBC109 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Tail Light Circuit Board for Malibu and Classic
Restore proper rear lighting function with this Standard Ignition tail light circuit board. The direct-fit design supports straightforward installation, while OE-spec testing helps ensure the board performs as expected in daily use. Standard Ignition CBT109 is built for the right rear position on select Chevrolet Malibu and Chevrolet Classic models.
Key Features
- Direct-fit tail light circuit board for the right side
- Female connector with 1 connector interface
- Male blade terminals: 2 terminals total
- Built to restore tail light operation after circuit board failure
- Tested to OE specifications for fit and performance
- Standard Ignition CBT109 replacement for select Chevrolet applications
Detailed Description
Standard Ignition CBT109 is a replacement tail light circuit board engineered for the right rear lamp assembly on 1997-2003 Chevrolet Malibu and 2004-2005 Chevrolet Classic. It uses a female connector and male blade terminals to match the original electrical interface, helping maintain proper contact and reliable rear lighting function. For technicians and DIY repairs, this OE-style replacement supports a clean repair when the original board has heat damage, corrosion, or broken traces. This part cross-references 1005 and TCB106 for the same application.
What It Helps Fix
- Inoperative tail light function on the right rear lamp
- Intermittent brake light or running light operation
- Electrical faults caused by damaged circuit traces
- Connector or terminal contact issues at the lamp assembly
- Rear lighting failures on Chevrolet Malibu and Chevrolet Classic models
Installation Notes and Tips
Fits 1997-2003 Chevrolet Malibu, right. Fits 2004-2005 Chevrolet Classic, right. Verify connector style, terminal layout, and lamp-side orientation before installation. Inspect the tail lamp housing and wiring for heat damage, corrosion, or loose terminals so the replacement board can restore proper function without repeat failure.
Quality Assurance
Standard Ignition tests this circuit board to OE specifications and builds it as a direct-fit replacement for dependable service life. The CBT109 is intended to meet or exceed OE performance expectations for the listed Chevrolet Malibu and Chevrolet Classic applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Chevrolet | Classic | Right | — |
| 2004 | Chevrolet | Classic | Right | — |
| 2003 | Chevrolet | Malibu | Right | — |
| 2002 | Chevrolet | Malibu | Right | — |
| 2001 | Chevrolet | Malibu | Right | — |
| 2000 | Chevrolet | Malibu | Right | — |
| 1999 | Chevrolet | Malibu | Right | — |
| 1998 | Chevrolet | Malibu | Right | — |
| 1997 | Chevrolet | Malibu | Right | — |
