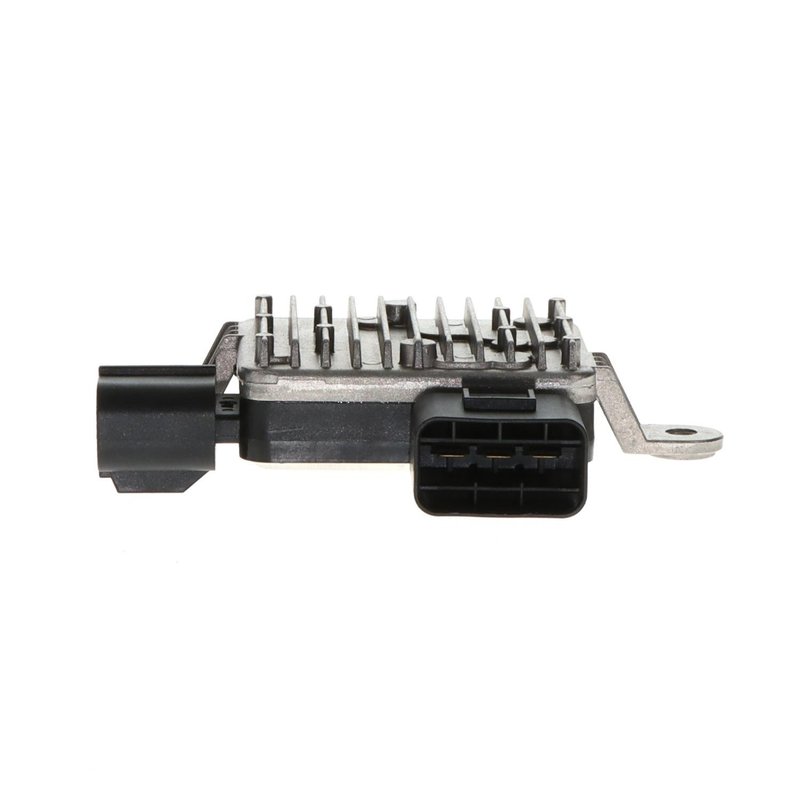

Standard Ignition CFM109 Engine Cooling Fan Module

Engine Cooling Control for Hyundai Sonata

Standard Ignition CFM109 is an engine cooling fan module for select Hyundai Sonata applications. It is built with a bolt-on attachment method and uses two oval female connectors with male blade terminals for a direct electrical interface.

Key Features

• Engine cooling fan module for thermal management control
• Bolt-on mounting for secure installation
• Two oval female connectors
• Male blade terminals with 3 + 2 terminal layout
• Direct-fit replacement for select Hyundai Sonata models

Fitment and Application

Fits 2017-2019 Hyundai Sonata, N/A. Fits 2015 Hyundai Sonata, N/A. This part cross-references AR7532 and CFMB10010 for the same application.

Use Standard Ignition CFM109 when replacing a failed engine cooling fan module on a Hyundai Sonata. The module helps manage fan operation through the vehicle’s cooling system controls, supporting proper airflow response based on engine temperature demands. Standard Ignition CFM109 is also referenced by part number CFM109 for ordering and application matching.

Common Problems It Can Address

• Cooling fan not engaging at the correct time
• Intermittent fan operation
• Overheating caused by fan control failure
• Cooling system warning lights related to fan circuit faults
• Electrical connector or terminal-related fan control issues

Installation Notes

Verify connector shape, terminal count, and mounting style before installation. Inspect the fan motor, wiring, and related relays or fuses for damage before replacing the module. Confirm vehicle year and model match the listed Hyundai Sonata fitment before ordering.

Quality Assurance

Standard Ignition is a recognized aftermarket source for electrical and engine management components. CFM109 is built to match the listed connector and mounting configuration for the specified Hyundai Sonata applications.
