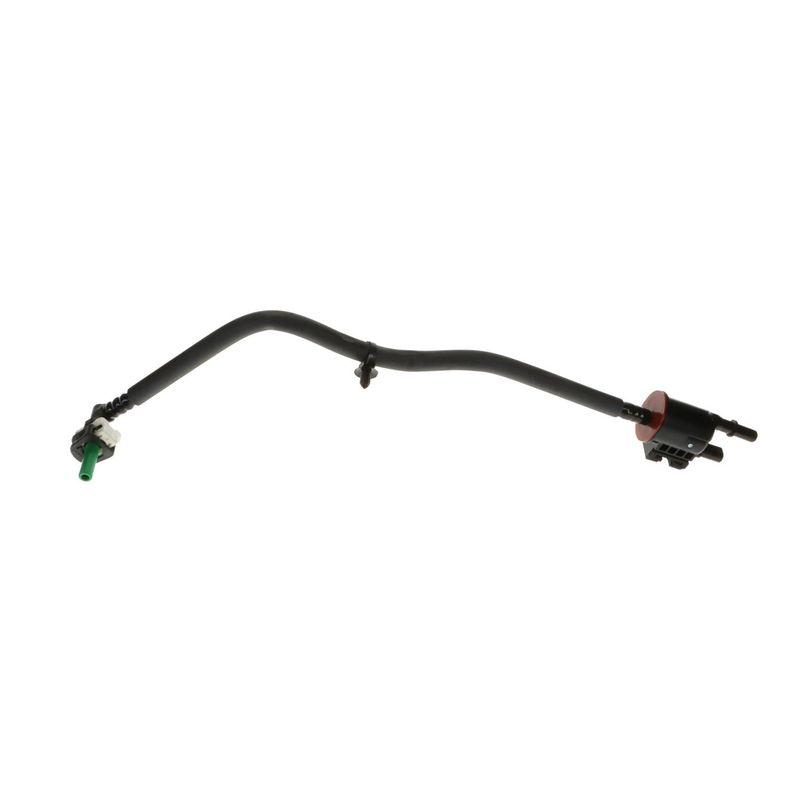

Standard Ignition CP132 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for Ford Super Duty

Standard Ignition CP132 is a vapor canister purge solenoid for emission control service on select Ford Super Duty trucks and vans. It is built with a female oval connector, one hose connection, one port, and blade terminals for direct replacement of the original purge solenoid.

Compatible With 2020-2024 Ford F-250 Super Duty, 2020-2022 Ford F-350 Super Duty, and 2021-2024 Ford E-350 Super Duty, this CP132 part number supports EVAP system repair where the purge solenoid mounts on a bracket.

Key Features

• Vapor canister purge solenoid for emission control repair
• Female oval connector with 2 male blade terminals
• 1 hose connector and 1 port configuration
• Mounts on bracket on listed Ford applications
• Direct-fit replacement for select Ford Super Duty EVAP systems

Detailed Description

Standard Ignition CP132 is designed for the evaporative emission control system, where the purge solenoid regulates vapor flow from the charcoal canister into the engine intake under the proper operating conditions. The connector and terminal layout, along with the single hose and single-port design, match the service requirements of the listed Ford applications. This part number, CP132, is a practical replacement choice for Ford F-250 Super Duty, Ford F-350 Super Duty, and Ford E-350 Super Duty models that use a bracket-mounted purge solenoid.

This part cross-references 2-33049 and PV2147 for the same application.

What It Helps Fix

• EVAP purge flow faults that trigger check engine lights
• Fuel vapor control issues caused by a failing solenoid
• Rough idle or drivability concerns related to purge valve operation
• Emission test failures tied to purge system malfunction
• Hard-start or fuel odor complaints linked to vapor management problems

Installation Notes and Tips

Verify the connector style, hose connection, and bracket-mounted location before installation. On the listed Ford Super Duty and E-350 Super Duty applications, CP132 installs in the EVAP purge solenoid position and should be matched to the vehicle’s original connector and mounting layout. Inspect nearby vacuum lines and electrical terminals during service to confirm the repair addresses the full purge system circuit.

Quality Assurance

Standard Ignition supplies emission control components for service replacement applications, and CP132 is built to match the specified connector, terminal, and mounting configuration for the listed vehicles.
