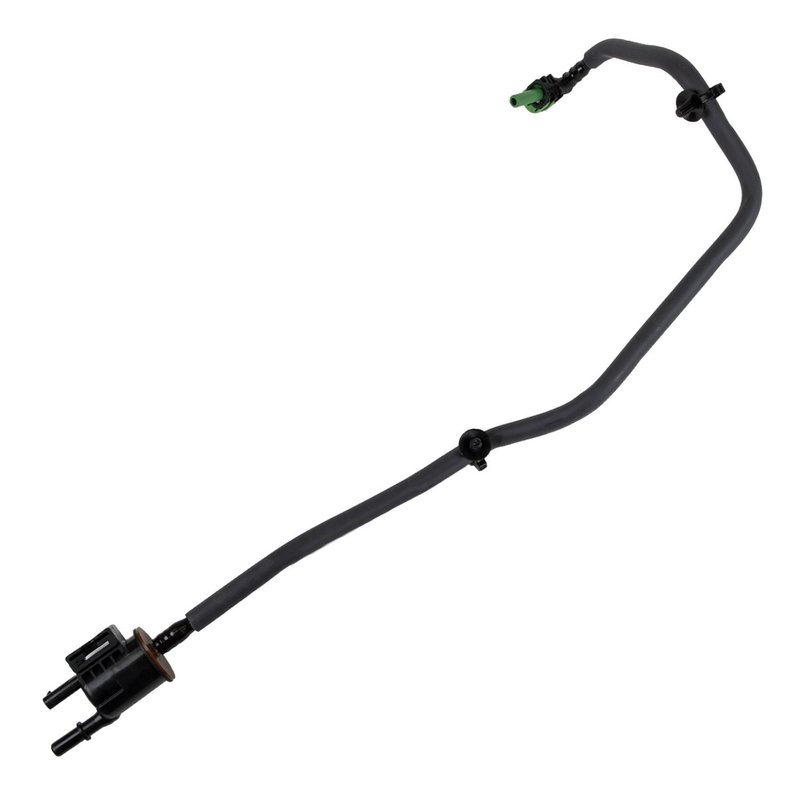

Standard Ignition CP133 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for Ford Applications

Standard Ignition CP133 is a vapor canister purge solenoid used in emission control systems to regulate fuel vapor flow from the charcoal canister to the engine intake. It is a direct-fit service part for select Ford models, including Explorer, F-150, and Transit vans with the solenoid mounted by the intake manifold.

Key Features

• Vapor canister purge solenoid for emission control service
• Female connector with a rectangular connector shape
• 2-port design with male blade terminals
• Connector quantity: 1
• Contents: solenoid
• Standard Ignition CP133 replacement part

Detailed Description

This purge solenoid helps control when stored fuel vapors are routed into the intake stream for combustion. Standard Ignition CP133 is built with a female rectangular connector, two male blade terminals, and a two-port layout to match the original-style electrical and vacuum connection points on supported Ford vehicles. It cross-references 2-33040 for the same application. This part number also cross-references PV2145 for the same application. Compatible With 2020-2023 Ford Explorer, by intake manifold; 2021-2023 Ford F-150, by intake manifold; and 2020-2023 Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD, by intake manifold.

Common Issues It May Solve

• Check engine light related to EVAP purge flow faults
• Rough idle caused by purge valve sticking open or closed
• Fuel vapor control problems in the evaporative emissions system
• Hard starting after refueling on affected Ford vehicles
• Emission test failures tied to purge solenoid operation

Installation Notes and Tips

Verify the connector style, terminal layout, and port configuration before installation. This part mounts by the intake manifold on listed applications, so confirm the original purge solenoid location and hose routing on the vehicle. For best results, inspect related EVAP hoses, electrical connectors, and nearby vacuum lines for wear or damage during replacement.

Quality Assurance

Standard Ignition supplies emission control service parts for OE-style fitment and function on supported applications. Use the vehicle fitment details and connector specifications to confirm compatibility with your Ford Explorer, F-150, or Transit model before installation.
