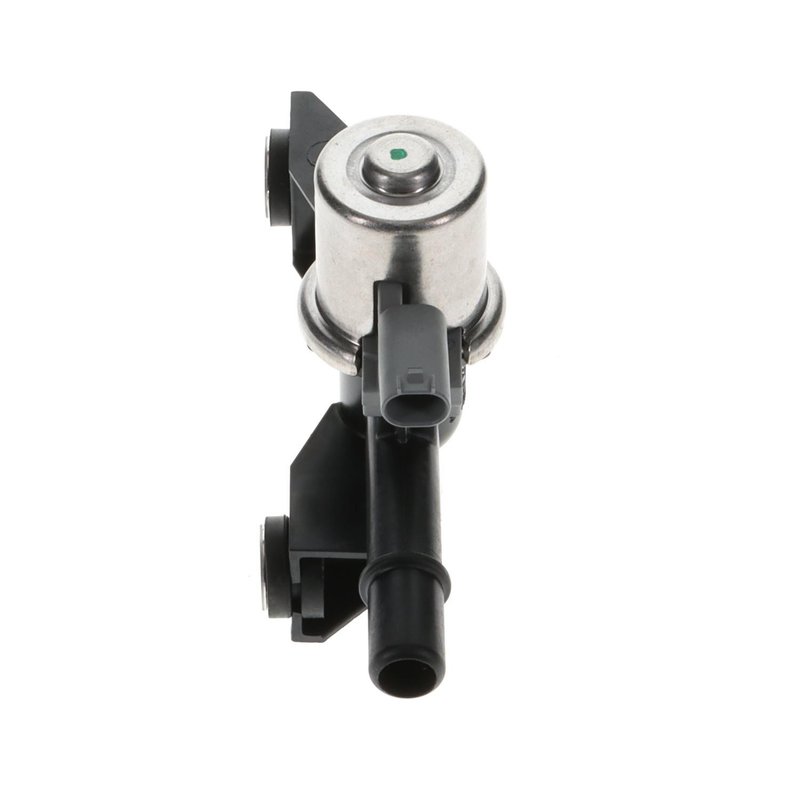

Standard Ignition CP330 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for EVAP Control

Standard Ignition CP330 is a vapor canister purge solenoid used in the evaporative emission control system to regulate fuel vapor flow from the charcoal canister to the engine intake. It is built with a female oval connector, male pin terminals, and a 2-port solenoid design for direct replacement service on select Chrysler and Dodge applications.

Key Features

• Vapor canister purge solenoid for EVAP system vapor management
• Female connector with oval shape for the vehicle harness interface
• 2-port solenoid design for purge circuit control
• Male pin terminals with 2-terminal configuration
• Standard Ignition CP330 replacement part number for service matching
• Cross-reference part numbers include 2-33053 and 52029575AA for the same application

Detailed Description

Standard Ignition CP330 is a vapor canister purge solenoid designed for emission control service where precise purge operation is required. It is used to control the release of stored fuel vapors from the vapor canister into the intake stream, helping the EVAP system operate as intended. This part number is a direct-fit service option for 2017-2025 Chrysler Pacifica by the vapor canister and 2024 Dodge Hornet by the vapor canister. For buyers searching for a 2017-2025 Chrysler Pacifica vapor canister purge solenoid or a 2024 Dodge Hornet EVAP purge solenoid, CP330 is the relevant replacement reference.

What It Helps Address

• EVAP purge flow faults related to a sticking or failed solenoid
• Fuel vapor control issues from the vapor canister circuit
• Check engine light conditions tied to purge system performance
• Rough idle or drivability concerns caused by improper purge operation
• Emission system service needs on Chrysler Pacifica and Dodge Hornet applications

Installation Notes and Tips

Verify connector style, terminal layout, and port configuration before installation. This part uses a female oval connector with male pin terminals and a 2-port layout, so matching the original unit is important for proper fitment. Install at the vapor canister location specified for the vehicle application and confirm all EVAP hoses and electrical connections are secure after replacement. Use the vehicle service information to clear diagnostic trouble codes and confirm purge system operation.

Quality Assurance

Standard Ignition is a recognized aftermarket source for emission control service parts. CP330 is built to match the listed application details and interchange references for service replacement accuracy.
