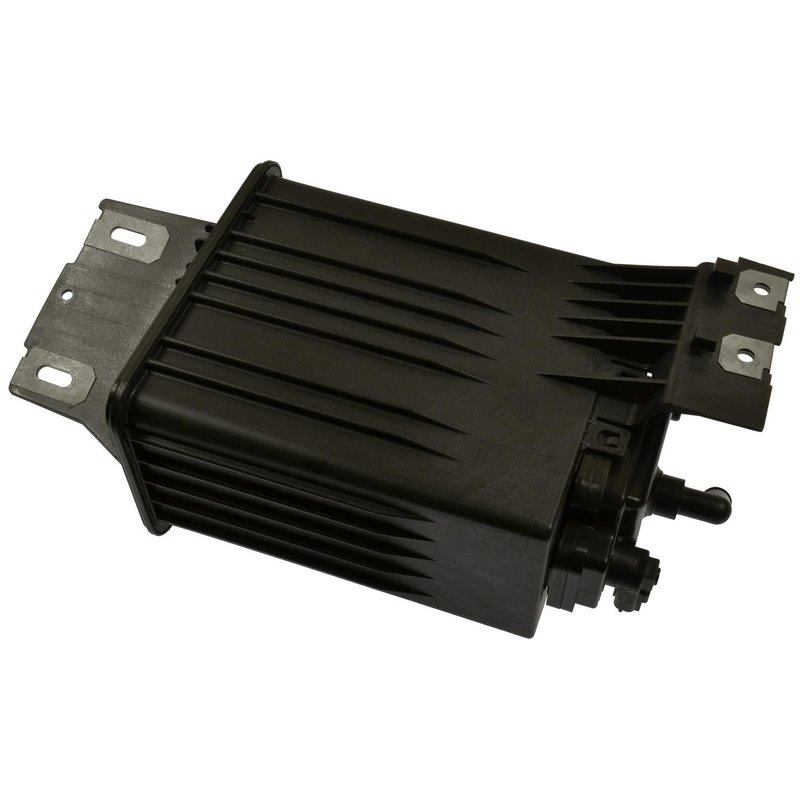

Standard Ignition CP3564 Vapor Canister

OE Vapor Canister for Ford F-150

Standard Ignition CP3564 is a direct-fit vapor canister for evaporative emission system service on select Ford trucks. It is built for 2015-2020 Ford F-150 models with the extended range fuel tank, with a black finish, one connector, and two terminals for straightforward replacement.

Key Features

• Direct-fit OE replacement for proper fit, form, and function
• Integrated check valve with operating pressure matched to vehicle requirements
• Designed for pressurized fuel systems and sustained creep loads
• Black housing finish
• One connector and two terminals
• Fits 2015-2020 Ford F-150, N/A, Extended Range Fuel Tank

Detailed Description

Standard Ignition CP3564 vapor canister is engineered as an OE-style replacement for the evaporative control system on the Ford F-150. The direct-fit design supports clean installation and correct system routing, while the integrated check valve helps maintain the operating pressure required by the vehicle’s fuel and emissions setup. This part number, CP3564, is intended for trucks equipped with the extended range fuel tank and is built to meet the demands of pressurized fuel systems.

This part cross-references Ford OE number FL3Z9D653B for the same application.

What It Helps Address

• Evaporative emission system fault codes related to vapor storage
• Fuel vapor containment issues caused by a damaged canister
• Pressure control problems in the evaporative system
• Fitment concerns when replacing the original vapor canister on a Ford F-150
• Service needs on 2015-2020 Ford F-150 trucks with the extended range fuel tank

Installation Notes and Tips

Verify the vehicle’s fuel tank configuration before installation. This vapor canister is specified for 2015-2020 Ford F-150 applications with the extended range fuel tank, so matching the original setup is important. Confirm connector and terminal layout against the removed part, and inspect related evaporative hoses, seals, and mounting points during service.

Quality Assurance

Standard Ignition manufactures this vapor canister as a direct-fit OE replacement with application-specific operating pressure and construction for pressurized fuel systems. The design focus is correct fitment and dependable evaporative system function on Ford F-150 service applications.
