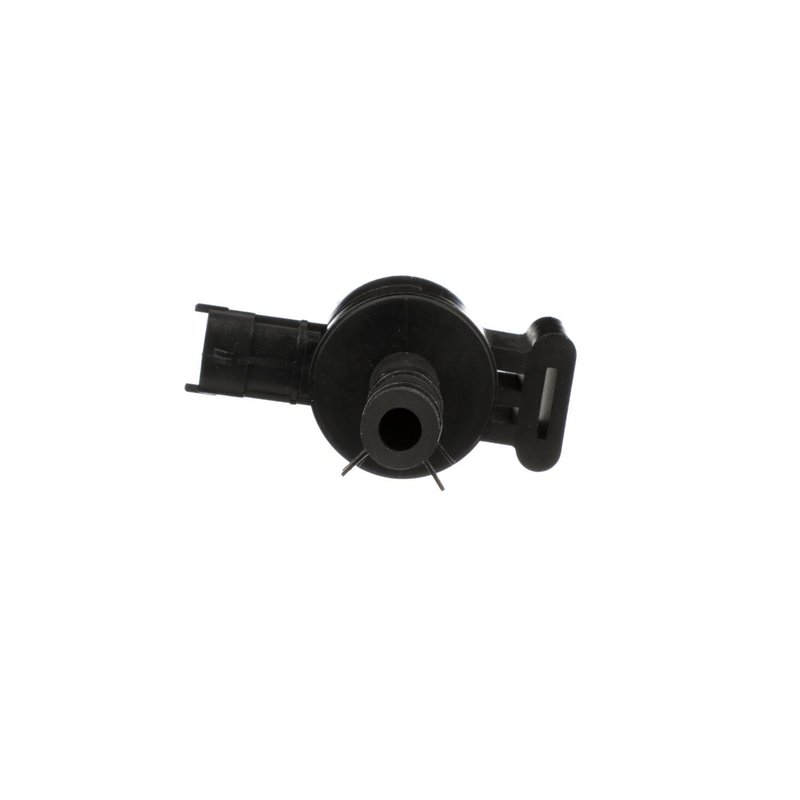

Standard Ignition CP545 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for Hyundai and Kia

Standard Ignition CP545 is a vapor canister purge solenoid for emission control systems that route fuel vapors from the charcoal canister into the engine intake under the proper operating conditions. It features a female oval connector, male blade terminals, a 3/8 in. hose size, and a built-in filter element for the vapor control circuit.

Key Features

• Vapor canister purge solenoid for emission control service
• Female oval connector with 2 male blade terminals
• 2-port design with 3/8 in. hose connection
• Filter element included
• Direct-fit application coverage for select Hyundai and Kia models
• Standard Ignition CP545 / CP635 interchange support

Detailed Description

Standard Ignition CP545 is built for vehicles that use an electronically controlled purge valve to manage evaporative emissions. This part is listed for select 2006-2014 Hyundai and Kia applications, including Hyundai Genesis, Sonata, Equus, Elantra, Accent, Santa Fe, and Kia Optima, Borrego, Rio, Rio5, Soul, and Rondo. It also cross-references Bosch-style applications such as 0280142556 and related numbers for the same use case. If you are replacing a faulty purge valve on a Hyundai Sonata, Kia Optima, or Hyundai Elantra, CP545 provides the specified connector, terminal, and hose configuration.

Common Issues This Part Addresses

• Check engine light related to evaporative emissions faults
• Hard starting after refueling
• Fuel vapor purge flow problems
• Rough idle caused by purge valve malfunction
• EVAP system leak or purge circuit diagnostic trouble codes

Installation Notes and Tips

Verify the connector shape, terminal style, port count, and hose size before installation. This part uses a female oval connector, 2 male blade terminals, and a 3/8 in. hose connection, so matching the original layout is important for proper fitment. Confirm vehicle-specific placement and hose routing on the Hyundai Genesis, Hyundai Sonata, Kia Optima, and other listed applications before replacing the original solenoid.

Quality Assurance

Standard Ignition CP545 is cataloged as an OE-style emission control replacement for the listed Hyundai and Kia applications. Confirm fitment by year, make, model, and hose configuration before ordering.
