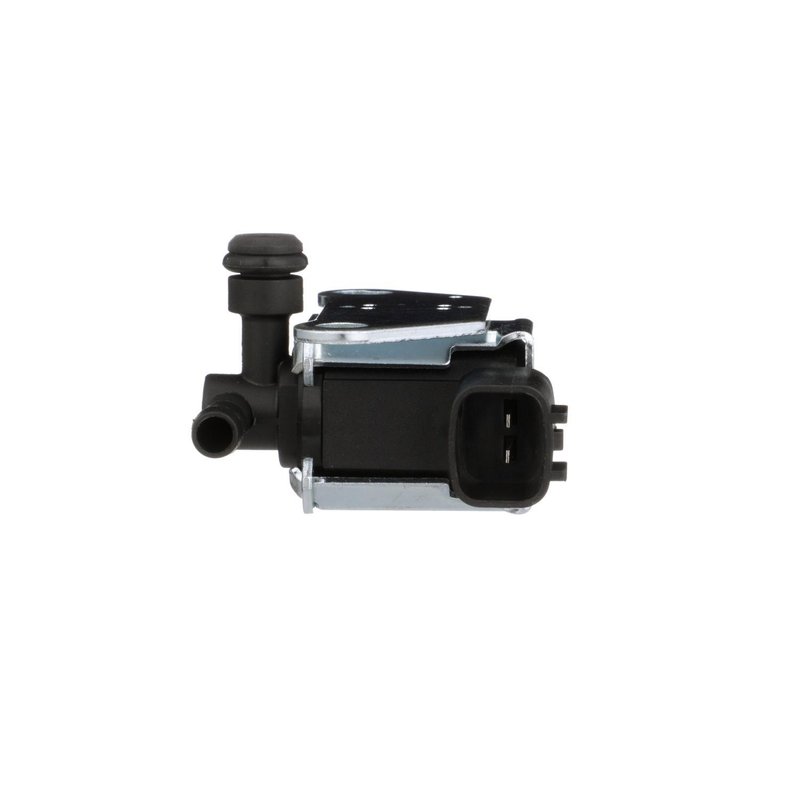

Standard Ignition CP615 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for Nissan Applications

Standard Ignition CP615 is a vapor canister purge solenoid for emission control service. It uses a female square connector, male blade terminals, two ports, and includes a filter element for the purge circuit. This CP615 replacement is a direct-fit option for select Nissan and Chevrolet models, including Nissan Versa, Sentra, Cube, NV200, Versa Note, and Chevrolet City Express.

Key Features

• Vapor canister purge solenoid for evaporative emission control systems
• Female 1-way connector with square housing
• Male blade terminals, 2 terminal design
• 2-port configuration for purge system routing
• Filter element included
• Standard Ignition CP615 / CP705 interchange reference

Detailed Description

Standard Ignition CP615 is built for vehicles that use an electronically controlled purge solenoid to manage fuel vapor flow from the charcoal canister into the intake system. It is listed for 2007-2021 Nissan Versa, 2007-2012 Nissan Sentra, 2009-2014 Nissan Cube, 2013-2021 Nissan NV200, 2014-2019 Nissan Versa Note, 2015-2017 Chevrolet City Express, and 2020 Nissan Versa. One fitment note specifies 2010 Nissan Sentra applications with California emissions, and 2015-2019 Nissan Versa and 2014-2019 Nissan Versa Note listings marked Solenoid.

This part cross-references Gates PV435 for the same application. If you are searching for a vapor canister purge solenoid for Nissan Versa, Sentra, or NV200 models, CP615 is a relevant OE-style replacement reference.

What It Helps Address

• Check engine light related to evaporative emissions faults
• Purge flow or purge solenoid circuit trouble codes
• Fuel vapor control issues in the EVAP system
• Rough idle or drivability concerns tied to purge valve operation
• Failed emissions inspection caused by EVAP system faults

Installation Notes and Tips

Verify connector style, port layout, and terminal configuration before installation. This unit uses a female square connector with male blade terminals and does not include mounting hardware. Confirm the vehicle’s emissions calibration and application notes, especially for 2010 Sentra California emissions coverage, before replacing the original solenoid.

Quality Assurance

Standard Ignition supplies emission control components for service replacement use. CP615 is cataloged with OE-style interchange references and application-specific fitment data for Nissan and Chevrolet EVAP systems.
