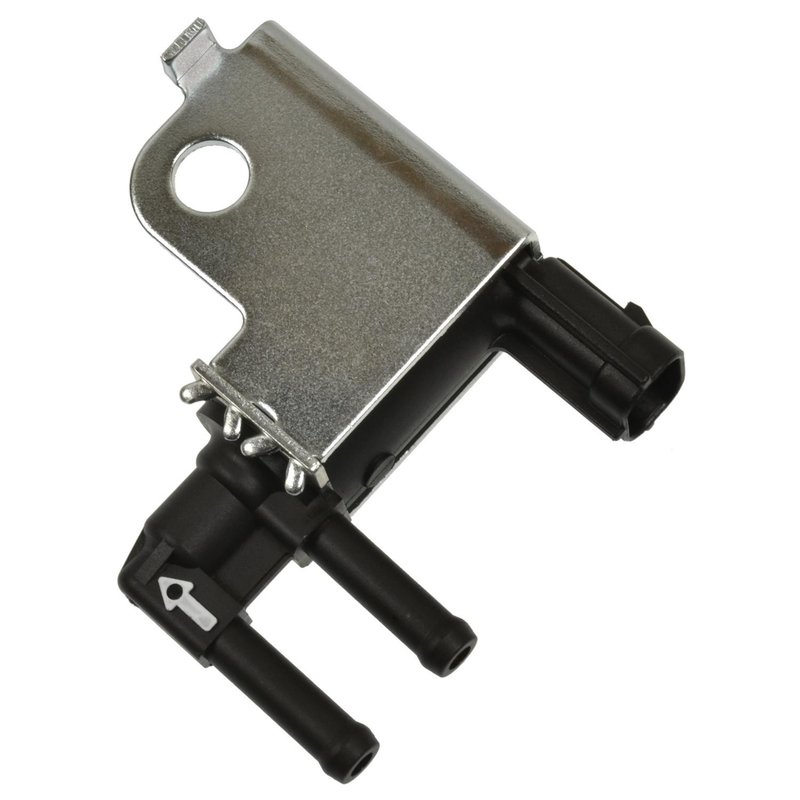

Standard Ignition CP770 Vapor Canister Purge Solenoid - Left

Vapor Canister Purge Solenoid for Subaru Applications

Standard Ignition CP770 is a vapor canister purge solenoid used in evaporative emission control systems. It regulates purge flow from the charcoal canister to the engine intake, helping maintain proper fuel vapor management on supported Subaru models.

Key Features

• Vapor canister purge solenoid for emission control service
• Female connector with 1 rectangular connector interface
• 2-port design with male blade terminals
• Direct-fit style replacement for select Subaru Impreza, Forester, Legacy, and Outback applications
• Standard Ignition CP770 for service matching and catalog lookup

Detailed Description

Built for evaporative emission control repair, this Standard Ignition CP770 purge solenoid helps control the routing of fuel vapors from the canister into the intake stream under the proper operating conditions. It uses a rectangular female connector, two male blade terminals, and a two-port layout for the specified Subaru fitments. This part cross-references 16102AA470 and PV825 for the same application. Standard Ignition CP770 is also referenced by CP859 in the Standard Ignition line.

Compatible With: Fits 2010-2014 Subaru Impreza, Left; Fits 2011-2013 Subaru Forester, N/A; Fits 2007-2012 Subaru Legacy, Left; Fits 2008-2009 Subaru Outback, Left; Fits 2007 Subaru Outback, N/A. These fitments make CP770 a relevant search match for Subaru Impreza purge solenoid replacement, Subaru Forester vapor canister purge solenoid service, and Subaru Legacy or Outback EVAP purge valve repair.

What It Helps Address

• EVAP purge flow faults related to the vapor canister purge circuit
• Check engine light conditions tied to emission control solenoid performance
• Fuel vapor routing issues between the canister and intake system
• Rough idle or drivability concerns associated with purge control problems
• Failed emissions inspection results caused by purge system malfunction

Installation Notes and Tips

Verify connector style, terminal layout, port count, and vehicle position before installation. Match the part to the listed Subaru Impreza, Forester, Legacy, or Outback application and confirm the original purge solenoid configuration on the vehicle. Inspect related EVAP hoses and electrical connections during service to help ensure proper system operation.

Quality Assurance

Standard Ignition supplies service parts for emission control repair applications, and CP770 is cataloged for the listed Subaru fitments with OE-style interchange references for parts matching.
