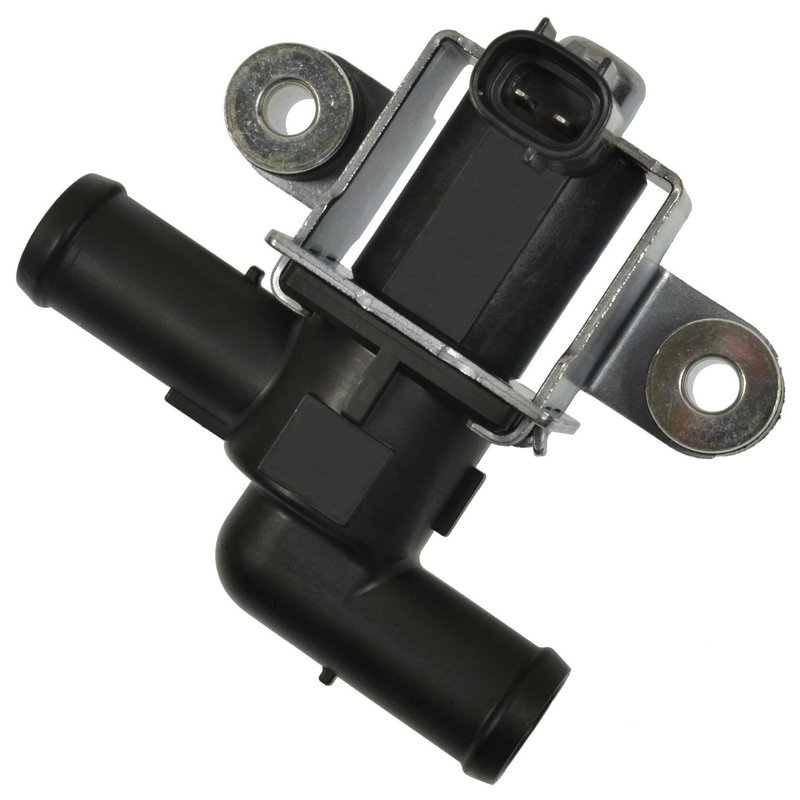

Standard Ignition CP773 Vapor Canister Purge Valve

Vapor Canister Purge Valve for Mazda Applications

Standard Ignition CP773 is a vapor canister purge valve for evaporative emission control systems. It is built with a female rectangular connector, two blade terminals, and an 18 mm hose size for direct replacement use on listed Mazda applications.

Key Features

• Vapor canister purge valve for EVAP system service
• Female connector with rectangular shape
• 1 connector, 2 male blade terminals
• 2-port design with 18 mm hose size
• Fits 2010-2013 Mazda 3, 2011-2014 Mazda 2, and 2012-2015 Mazda 5
• Standard Ignition CP773 part number for catalog matching

Detailed Description

Standard Ignition CP773 is an emission control component used to regulate vapor flow from the charcoal canister into the engine intake under the proper operating conditions. The connector and port layout, along with the 18 mm hose connection, support replacement on Mazda 3, Mazda 2, and Mazda 5 vehicles listed in the fitment data. This part cross-references Dorman OE Solutions 911-711 for the same application.

Compatible With 2010-2013 Mazda 3, 2011-2014 Mazda 2, and 2012-2015 Mazda 5. Use CP773 when replacing a purge valve that matches the same connector style, terminal configuration, and hose connection requirements.

What It Helps Address

• EVAP purge valve fault codes
• Fuel vapor routing problems
• Rough idle related to purge control issues
• Check engine light concerns tied to evaporative emissions
• Incorrect vapor flow between the canister and intake system

Installation Notes and Tips

Verify connector shape, terminal style, port count, and hose size before installation. Confirm the vehicle application against the listed Mazda fitment for CP773, and inspect EVAP hoses and electrical connectors for wear or damage during replacement. Follow the vehicle service procedure for leak checks and system verification after installation.

Quality Assurance

Standard Ignition is a recognized aftermarket source for electrical and emission control components. CP773 is cataloged for direct application matching on the listed Mazda vehicles, with fitment data provided for 2010-2013 Mazda 3, 2011-2014 Mazda 2, and 2012-2015 Mazda 5.
