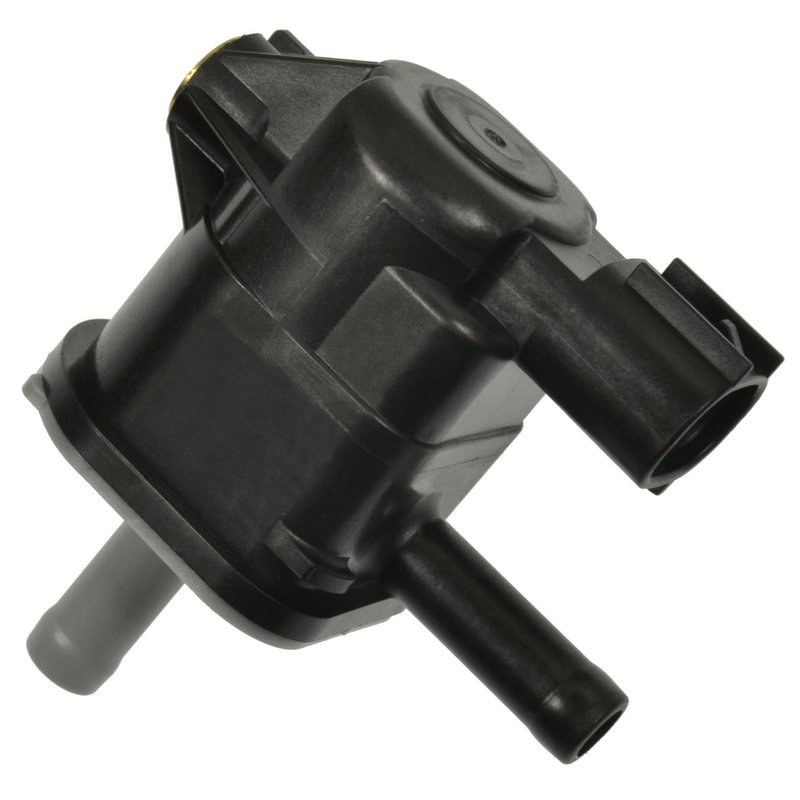

Standard Ignition CP774 Vapor Canister Purge Valve

Vapor Canister Purge Valve for Subaru EVAP Service

Standard Ignition CP774 is a vapor canister purge valve for evaporative emission control service on select Subaru models. It is built with a black and gray housing, a female connector, and a round/rectangular connector shape for direct replacement use in the EVAP system.

Compatible With 2010-2019 Subaru Legacy, 2010-2019 Subaru Outback, 2011-2018 Subaru Forester, 2016-2017 Subaru Crosstrek, 2012-2017 Subaru Impreza, and 2013-2015 Subaru XV Crosstrek. Standard Ignition CP774 is also referenced by CP863 for the same application.

Key Features

• Vapor canister purge valve for evaporative emission control repair
• Black and gray finish
• Female connector with round and rectangular connector shape
• 2-port valve design
• Male blade terminals with 2 terminals
• Direct-fit style for listed Subaru applications

Detailed Description

Standard Ignition CP774 is a purge valve used in the EVAP system to control vapor flow between the vapor canister and engine intake under the vehicle’s emission strategy. For Subaru Legacy, Outback, Forester, Crosstrek, Impreza, and XV Crosstrek applications, this part number supports replacement of the original vapor canister purge valve when the factory unit is no longer operating correctly. This part cross-references 2M1461 and 16131AA060 for the same application.

Common Repair Symptoms

• Check engine light related to EVAP system faults
• Fuel vapor leak or purge flow diagnostic trouble codes
• Rough idle after refueling
• Hard starting after fuel fill-up
• Emissions test failure tied to purge valve operation

Installation Notes and Tips

Verify connector style, port layout, and terminal configuration before installation. Confirm the vehicle application by year and model, then inspect EVAP hoses and electrical connections for damage or contamination during replacement. Standard Ignition CP774 is listed for 2010-2019 Subaru Legacy and Outback, 2011-2018 Subaru Forester, 2016-2017 Subaru Crosstrek, 2012-2017 Subaru Impreza, and 2013-2015 Subaru XV Crosstrek.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for emission control service parts. CP774 is cataloged for the listed Subaru fitments and built to match the specified connector, terminal, and port configuration for those applications.
