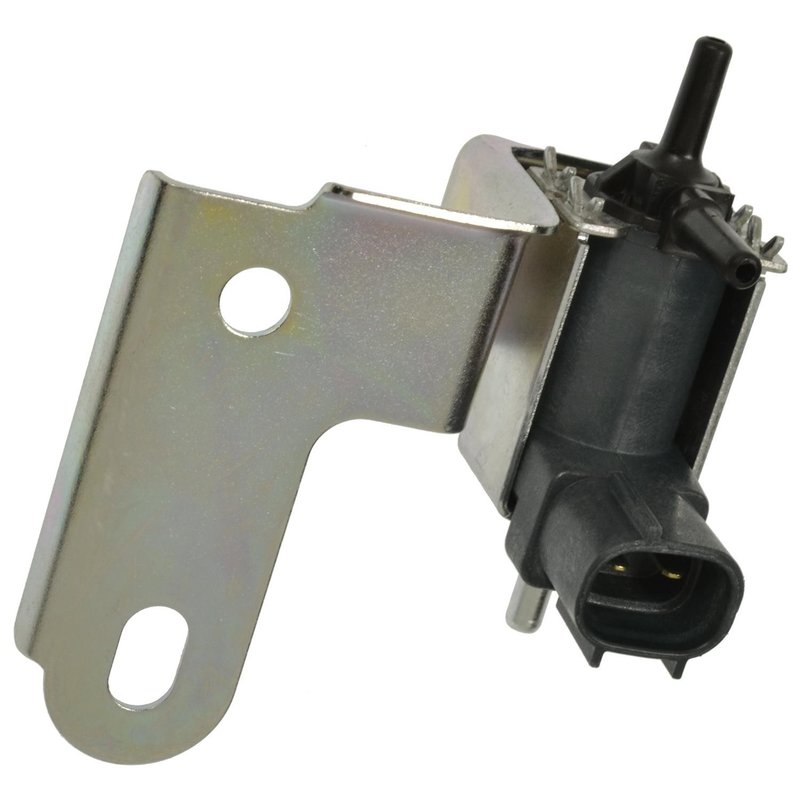

Standard Ignition CP896 Vapor Canister Purge Solenoid

Vapor Canister Purge Solenoid for Toyota Applications

Standard Ignition CP896 is a vapor canister purge solenoid for emission control service on select Toyota trucks and SUVs. It is built with a female connector, rectangular/oval connector shape, male blade terminals, and a 3-port design for direct replacement use in the evaporative emissions system.

Compatible With 1997-2000 Toyota 4Runner and 1997-2001 Toyota Tacoma applications listed below, this purge solenoid supports proper vapor routing between the charcoal canister and engine intake. Standard Ignition CP896 is also cross-referenced to OE-style replacement part numbers for the same application.

Key Features

• Vapor canister purge solenoid for emission control repair
• Female connector with 1 connector interface
• Rectangular and oval connector shape for listed Toyota fitments
• 3-port solenoid body for evaporative emissions routing
• Male blade terminals with 2-terminal electrical connection
• Standard Ignition CP896 replacement part number

Detailed Description

This purge solenoid is used in the evaporative emissions system to control when stored fuel vapors are drawn from the charcoal canister into the engine for combustion. On 1997-2000 Toyota 4Runner and 1997-2001 Toyota Tacoma models, a worn or electrically failed purge solenoid can affect emissions performance and drivability. Standard Ignition CP896 provides a direct-fit service part for these Toyota 4Runner and Toyota Tacoma applications.

This part cross-references Dorman OE Solutions 994-066 for the same application.

Common Issues This Part May Solve

• Check engine light related to evaporative emissions faults
• Fuel vapor purge flow problems
• Hard starting after refueling
• Rough idle caused by purge control issues
• Failed emissions inspection tied to EVAP system faults

Installation Notes and Tips

• Verify the connector style, terminal type, and 3-port layout against the original part before installation.
• Inspect vacuum hoses and electrical connectors for cracks, corrosion, or looseness during replacement.
• Clear diagnostic trouble codes after installation and confirm proper purge operation with a scan tool if available.
• Use the vehicle-specific fitment list to confirm the correct Toyota 4Runner or Toyota Tacoma application.

Quality Assurance

Standard Ignition CP896 is a cataloged emission control replacement part built for the listed Toyota applications and supported by Standard Ignition interchange references, including CP985.
