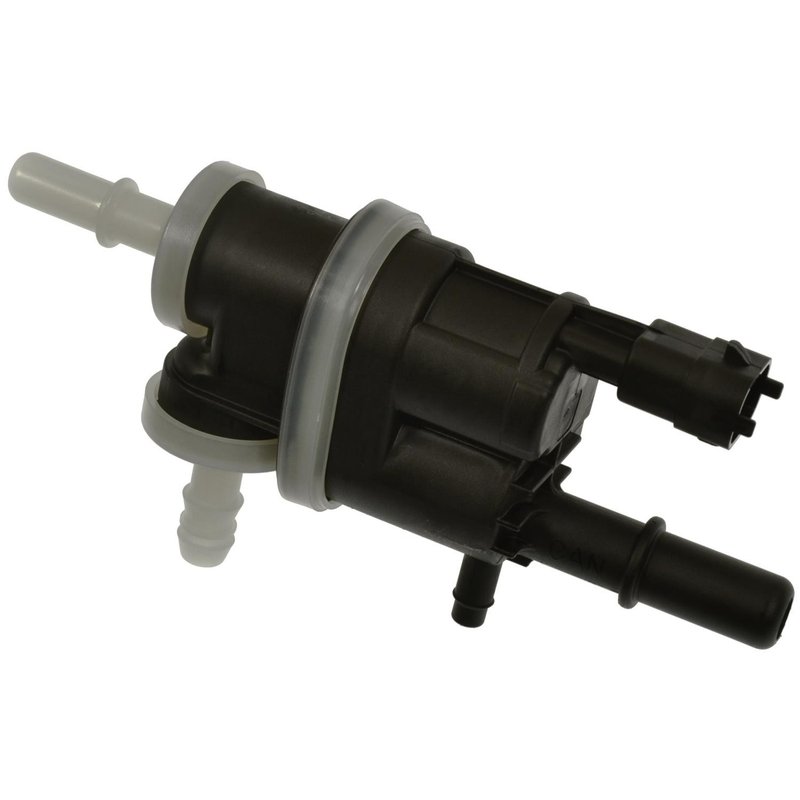

Standard Ignition CP959 Vapor Canister Purge Valve

Vapor Canister Purge Valve for Fiat 500 and 500L

Standard Ignition CP959 is a vapor canister purge valve for evaporative emission control service. It regulates fuel vapor flow from the charcoal canister into the intake system, helping maintain proper EVAP system operation on the 2015-2017 Fiat 500 and 2016-2017 Fiat 500L.

Key Features

• Vapor canister purge valve for emission control service
• Female connector with 1 oval connector interface
• 2 blade terminals for electrical connection
• 4-port valve design for EVAP routing
• Direct replacement style for Fiat 500 and Fiat 500L applications
• Standard Ignition CP959 part number for catalog matching

Detailed Description

Standard Ignition CP959 is built for evaporative system repair where accurate purge control is required. The valve uses a female oval connector, 2 male blade terminals, and a 4-port layout to manage vapor flow within the EVAP system. For buyers searching for a vapor canister purge valve for Fiat 500 or a purge valve for Fiat 500L, this part number provides a direct reference for the listed applications. This part cross-references 2M1584 and PV950 for the same application.

What It Helps Fix

• Check engine light related to EVAP purge performance
• Fuel vapor flow issues between the canister and intake
• Hard starting or rough running caused by purge valve faults
• EVAP system leak or purge flow diagnostic trouble codes
• Emissions test failures tied to purge control problems

Installation Notes and Tips

Verify connector shape, terminal count, and port layout against the original valve before installation. Confirm the vehicle application by year and model: Fits 2015-2017 Fiat 500, N/A; Fits 2016-2017 Fiat 500L, N/A. Use the OE-style routing and electrical connection points to ensure the EVAP system is reassembled correctly. Standard Ignition CP959 should be matched to the vehicle’s original purge valve configuration before replacement.

Quality Assurance

Standard Ignition is a recognized aftermarket source for emission control components, and CP959 is cataloged for the listed Fiat applications. Part number CP959 is also referenced for fitment verification during EVAP system service.
