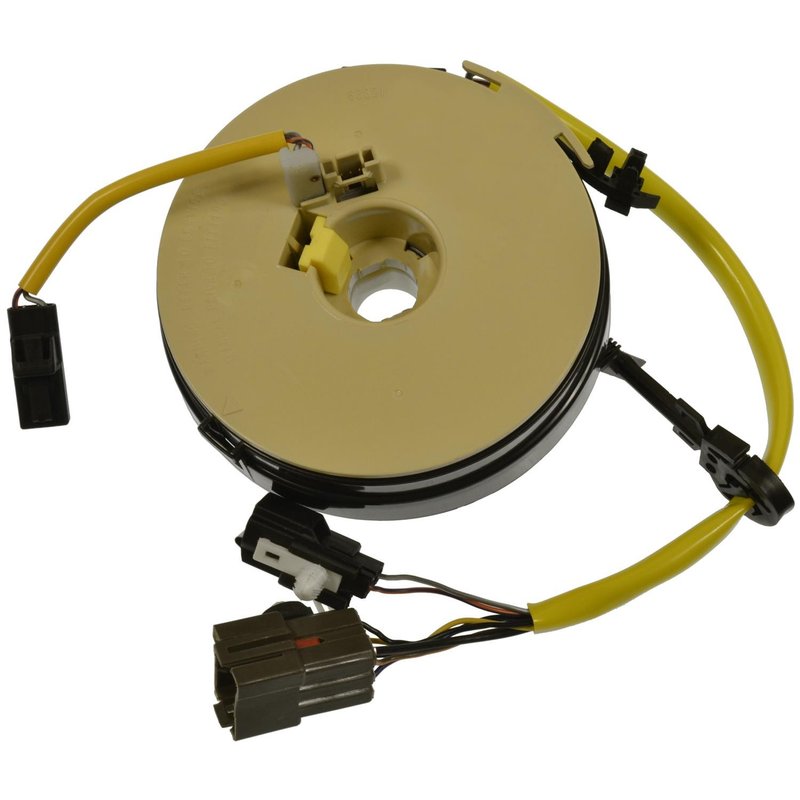

Standard Ignition CSP106 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Trucks

The Standard Ignition CSP106 air bag clockspring is designed to maintain electrical connections for your vehicle's airbag system while allowing the steering wheel to turn. This essential component is compatible with select Ford models, ensuring proper airbag functionality and driver safety.

• Compatible with Ford Excursion, Expedition, F-150, F-250 Super Duty, and F-350 Super Duty
• Features three rectangular connectors with female and male terminals
• Includes 10 wires with a length of 12.5 inches (317.5 mm)
• Operates at 12 volts, suitable for standard vehicle electrical systems
• Bullet-type terminals for secure and reliable connections
• Available in black and tan colors to match vehicle interiors

Product Details and Specifications

The CSP106 air bag clockspring from Standard Ignition is engineered to provide consistent electrical contact between the steering wheel and the vehicle’s airbag system. It includes three connectors with a combination of female and male terminals, totaling six, two, and two terminals respectively. The bullet terminal type ensures a stable connection, reducing the risk of electrical faults. With 10 wires measuring 12.5 inches in length, this clockspring supports the necessary wiring for airbag deployment signals and other steering wheel controls. The rectangular connector shape facilitates straightforward installation and compatibility with the specified Ford models.

Applications and Problem Resolution

• Restores airbag system electrical continuity after steering wheel repairs or replacements
• Eliminates airbag warning lights caused by faulty or damaged clocksprings
• Prevents intermittent airbag deployment issues related to wiring faults in the steering column
• Supports proper function of steering wheel-mounted controls linked to the airbag system
• Ensures compliance with vehicle safety standards for airbag operation

Installation Notes and Tips

When installing the Standard Ignition CSP106 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead to avoid damage. Handle the clockspring carefully to prevent wire damage or connector deformation. Verify connector orientation and terminal alignment before securing the unit. This clockspring does not include installation hardware, so retain original mounting components or acquire compatible fasteners as needed.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The CSP106 clockspring undergoes rigorous quality control to ensure proper fit and function in compatible Ford vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
