Standard Ignition CSP107 Air Bag Clockspring

Reliable Air Bag Clockspring for Dodge Ram Trucks

The Standard Ignition CSP107 air bag clockspring is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This essential electrical component ensures proper connectivity for your vehicle's air bag system, maintaining safety and functionality.

• Compatible with Dodge Ram 1500, 2500, and 3500 models
• Part number CSP107 for precise identification
• Black, white, and yellow color-coded wiring for easy installation

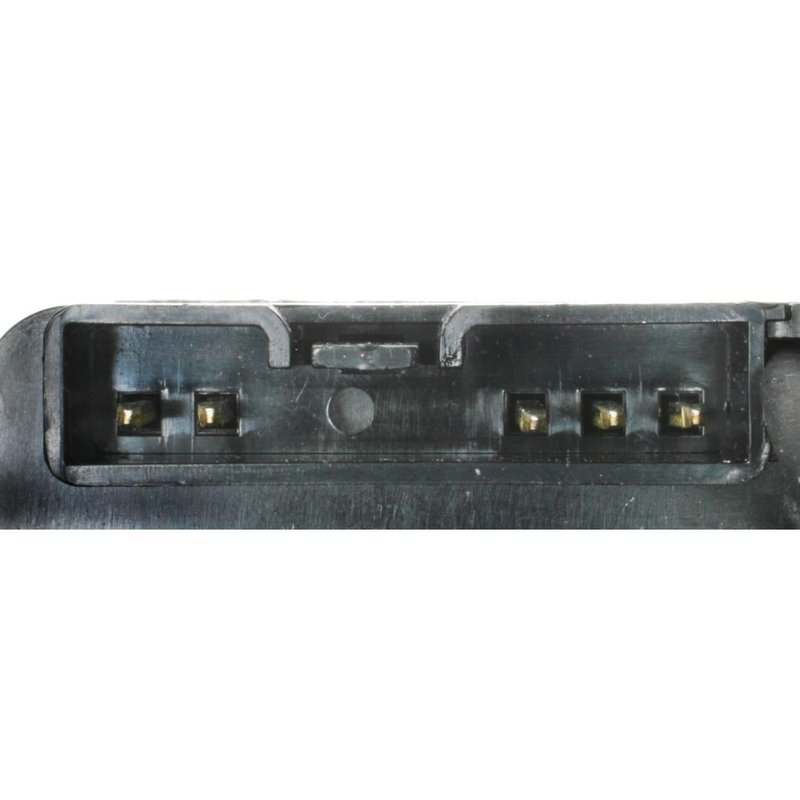

• Five female rectangular connectors with blade-type male terminals
• 23-inch (584.2 mm) wire length with eight wires for reliable signal transmission
• 12-volt voltage rating suitable for standard vehicle electrical systems
• Durable plastic finish for long-lasting performance

Product Details and Specifications

The Standard Ignition CSP107 air bag clockspring features a plastic finish housing with color-coded wiring in black, white, and yellow to facilitate correct installation and maintenance. It includes five female rectangular connectors and multiple male blade terminals arranged in quantities of four, two, two, and one, ensuring secure and accurate electrical connections within the air bag system. The 23-inch wire length provides sufficient reach for integration into the steering column assembly. Designed for 12-volt systems, this clockspring supports the electrical continuity necessary for air bag deployment and steering wheel controls.

Compatible Vehicles and Applications

This clockspring is compatible with the following Dodge models:

• Dodge Ram 1500
• Dodge Ram 2500
• Dodge Ram 3500

It is intended for use in the air bag system to maintain electrical connections between the vehicle’s steering wheel and the air bag module, ensuring proper function of safety features.

Common Issues Addressed by This Clockspring

• Intermittent or non-functioning air bag warning lights
• Loss of electrical connection to steering wheel controls
• Faulty air bag deployment signals
• Steering wheel horn or control malfunctions
• Wiring damage or wear within the steering column

Installation Notes and Tips

When installing the Standard Ignition CSP107 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead. Handle the clockspring carefully to avoid damaging the internal ribbon cable. Verify connector orientation and terminal alignment before securing connections. This part does not include installation hardware, so retain original mounting components or acquire compatible hardware as needed.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP107 clockspring undergoes rigorous quality control to ensure reliable performance in Dodge Ram 1500, 2500, and 3500 vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
