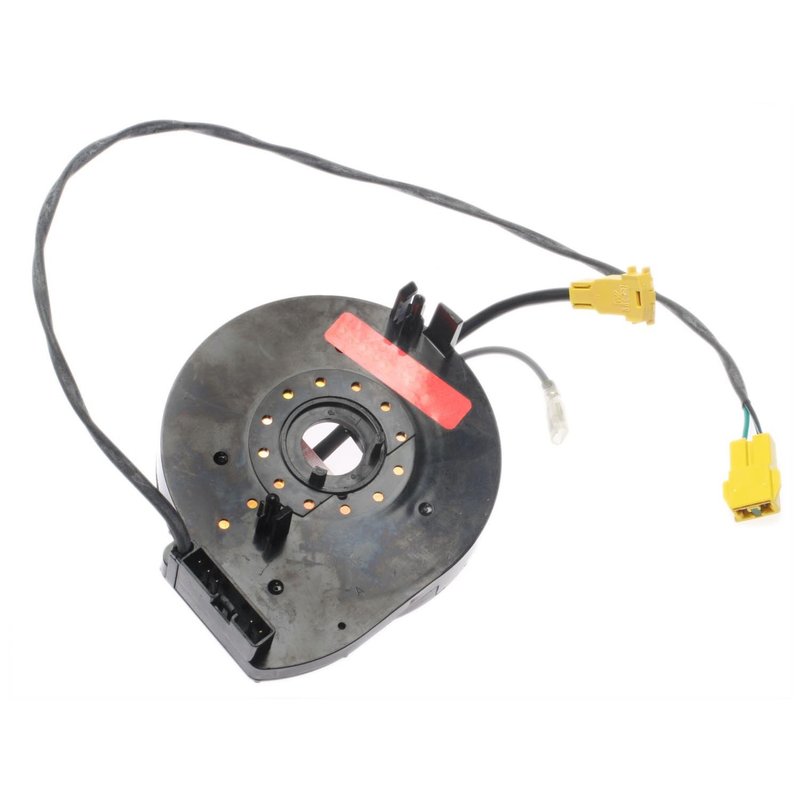

Standard Ignition CSP113 Air Bag Clockspring

Reliable Air Bag Clockspring for Dodge Ram and B1500 Models

The Standard Ignition CSP113 air bag clockspring is designed to maintain electrical connections for the airbag system in select Dodge vehicles. Engineered for durability and precise fitment, this clockspring supports safe and consistent airbag deployment in Dodge B1500, Ram 1500, Ram 2500, and Ram 3500 models.

• Compatible with Dodge B1500, Ram 1500, Ram 2500, and Ram 3500
• Part number CSP113 for accurate identification
• Black color housing for standard OEM appearance
• Four rectangular connectors with female and male terminals
• Ten blade-type terminals ensuring secure electrical contact
• 18.5-inch (469.9 mm) wire length with four wires for reliable signal transmission
• Operates at 12 volts, matching vehicle electrical systems

Product Features and Specifications

The Standard Ignition CSP113 clockspring features a black housing designed to integrate seamlessly with the vehicle’s airbag system. It includes four rectangular connectors, each equipped with both female and male terminals, totaling ten blade-type terminals. This configuration ensures a stable and secure connection between the steering wheel and the vehicle’s electrical system. The clockspring’s 18.5-inch wire length provides sufficient reach for proper installation without excess slack. Operating at 12 volts, it matches the electrical requirements of Dodge Ram and B1500 airbag systems.

Purpose and Common Applications

• Restores electrical continuity for airbag deployment circuits
• Replaces faulty or damaged clocksprings causing airbag warning lights
• Resolves intermittent steering wheel controls or horn malfunctions
• Ensures proper function of driver-side safety systems
• Maintains reliable connection during steering wheel rotation

Installation Notes and Tips

When installing the Standard Ignition CSP113 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead. Handle the clockspring carefully to avoid damaging the delicate internal ribbon cable. Do not rotate the clockspring excessively before installation to prevent internal damage. Verify connector orientation matches the vehicle’s wiring harness for proper fitment. Professional installation is recommended to maintain airbag system integrity and safety compliance.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The CSP113 clockspring undergoes rigorous quality control to ensure reliable performance in Dodge B1500 and Ram 1500/2500/3500 models. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
