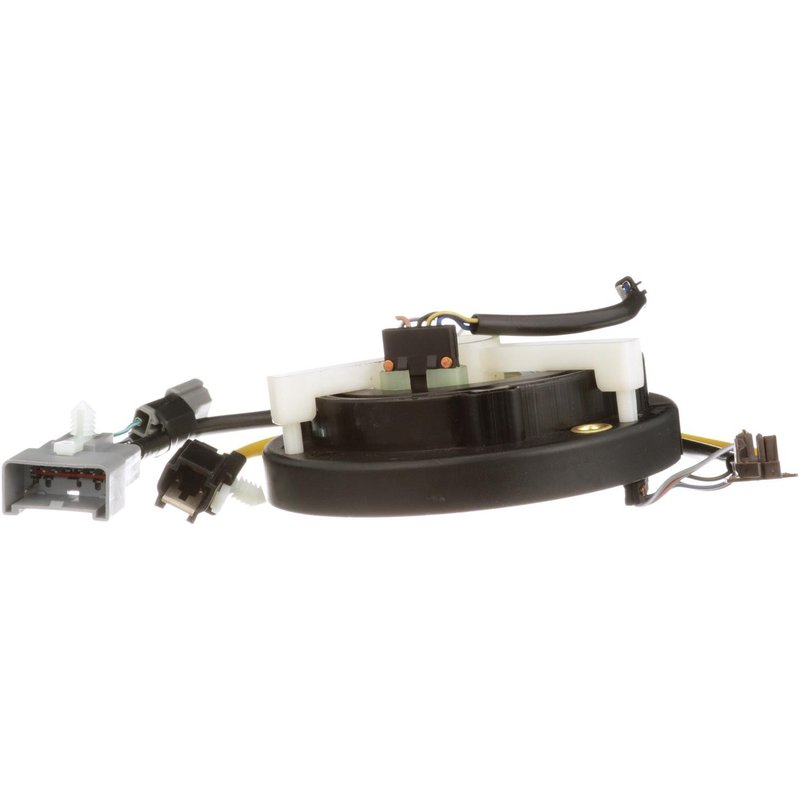

Standard Ignition CSP117 Air Bag Clockspring

Reliable Air Bag Clockspring for Ford Bronco and F-Series Trucks

The Standard Ignition CSP117 air bag clockspring is designed to maintain a secure electrical connection between the steering wheel and vehicle systems. Engineered for select Ford models, this clockspring ensures consistent performance and safety in your Bronco, F-150, F-250, or F-350.

• Compatible with Ford Bronco, F-150, F-250, and F-350 models
• Part number CSP117 for precise identification
• Black plastic finish for durability and corrosion resistance
• Five rectangular plug-in connectors with female and male terminals
• Fifteen blade-type terminals supporting 12-volt electrical systems
• Includes 14 wires with a length of 13.75 inches (349.25 mm)

Detailed Product Features and Specifications

The Standard Ignition CSP117 clockspring features a robust plastic construction finished in black, designed to withstand the rigors of automotive environments. It includes five rectangular plug-in connectors with both female and male terminal genders, facilitating secure and reliable electrical connections. The clockspring supports 15 blade-type terminals, compatible with 12-volt systems commonly found in Ford vehicles. With 14 wires measuring 13.75 inches in length, this clockspring provides the necessary wiring to maintain uninterrupted communication between the steering wheel controls and the vehicle’s air bag system.

Applications and Common Issues Addressed

• Restores proper air bag system function in Ford Bronco and F-Series trucks
• Resolves intermittent or non-functioning steering wheel controls
• Eliminates air bag warning lights caused by faulty clockspring connections
• Prevents loss of horn or cruise control operation linked to wiring faults
• Addresses electrical continuity issues within the steering column assembly

Installation Notes and Tips

When installing the CSP117 clockspring, ensure the steering wheel is centered and the wheels are aligned straight ahead to avoid damaging the internal wiring. Handle the plastic connectors carefully to prevent terminal damage. Verify connector orientation matches the vehicle’s wiring harness for a secure fit. This clockspring does not include installation hardware, so retain original mounting components during replacement.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance for your Ford Bronco and F-Series trucks. The CSP117 clockspring undergoes rigorous quality control to ensure durability and electrical integrity. Please refer to Standard Ignition’s warranty policy for coverage details specific to this air bag clockspring.
