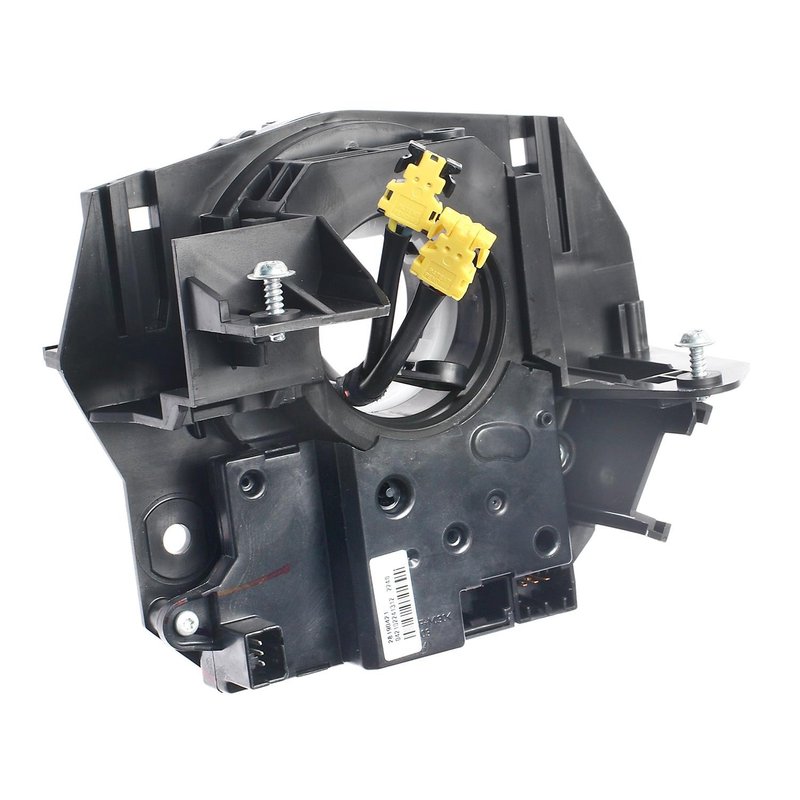

Standard Ignition CSP122 Steering Angle Sensor

Reliable Steering Angle Sensor for Chrysler and Dodge Vehicles

The Standard Ignition CSP122 Steering Angle Sensor is designed to provide accurate steering input data for Chrysler Grand Caravan and Dodge Town & Country models. This essential electrical component ensures proper vehicle stability and handling by delivering precise steering angle measurements.

• Compatible with Chrysler Grand Caravan and Dodge Town & Country
• Includes clockspring for seamless integration
• 12-volt operation with 4 wires and 7-inch wire length
• Rectangular plug-in connectors with both female and male terminals
• 17 blade and pin terminals for secure electrical connections

Product Features and Specifications

The CSP122 steering angle sensor from Standard Ignition features a black housing and a rectangular connector shape designed for plug-in installation. It includes five connectors with both female and male genders, ensuring compatibility with the vehicle’s wiring harness. The sensor operates at 12 volts and comes with four wires, each measuring approximately 177.8 mm (7 inches) in length. The 17 terminals consist of blade and pin types, providing reliable electrical contact without the need for additional hardware. This sensor also includes a clockspring, which is critical for maintaining electrical continuity while allowing the steering wheel to turn.

Purpose and Common Applications

• Monitors steering wheel position for electronic stability control systems
• Helps correct steering angle input for anti-lock braking systems (ABS)
• Supports proper function of traction control systems
• Prevents steering-related error codes and warning lights
• Ensures accurate data for advanced driver assistance systems (ADAS)

Installation Notes and Tips

When installing the Standard Ignition CSP122 steering angle sensor, ensure the vehicle’s battery is disconnected to avoid electrical shorts. Carefully align the clockspring and connectors to prevent damage to the terminals. The plug-in rectangular connectors with female and male terminals should be securely attached to the vehicle’s wiring harness. No additional hardware is required for installation. After installation, it is recommended to perform a steering angle sensor calibration using a compatible diagnostic tool to ensure accurate sensor readings.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The CSP122 steering angle sensor undergoes rigorous quality control testing to maintain consistent electrical and mechanical standards. While hardware is not included, the product is backed by Standard Ignition’s limited warranty, providing coverage against defects in materials and workmanship under normal use.
